Analab Sample Preparation Accessories

Analab EvapoClean – Evaporate & Concentrate

Designed to safely evaporate and concentrate samples in a closed environment.

Better Sample Preparation = Better Results

  • Closed environment sample evaporation device
  • Samples protected from all sources of contamination during the evaporation process
  • Constant and uniform heating ensures safe, controlled evaporation
  • Available in 25 & 125 mL vessel sizes, and in 3, 6, & 12 vessel capacities

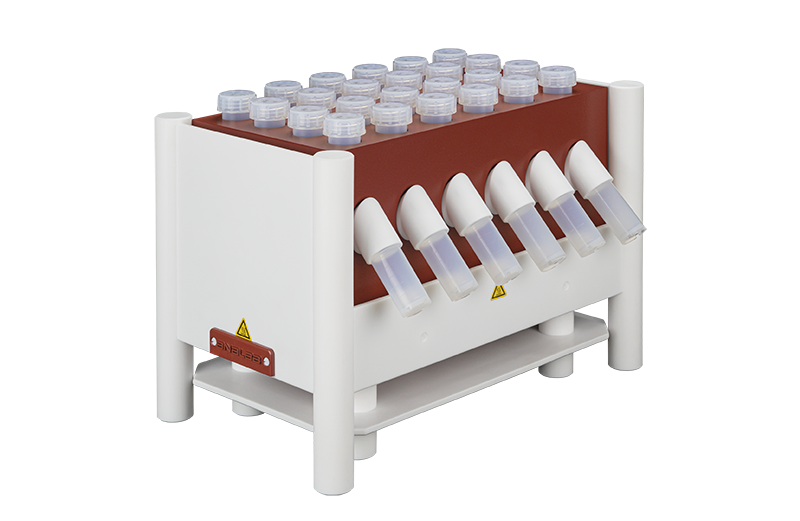

  • CleanClever wells on top of heating block for digestion & vessel cleaning

Features Diagram for EvapoClean

Featured Diagram for EvapoClean

Models

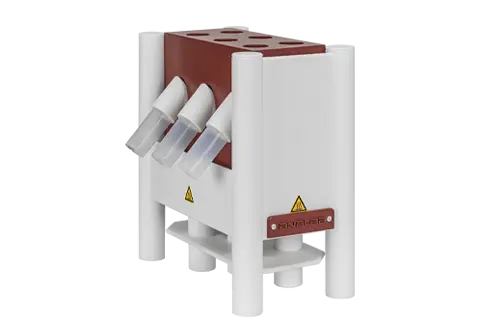

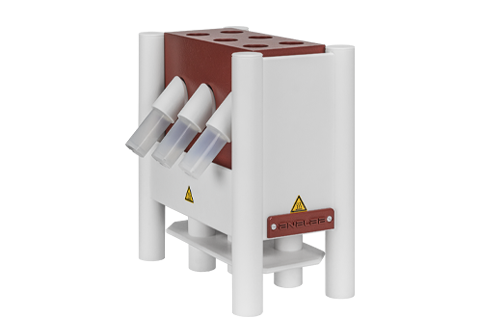

3 x 25 mL EvapoClean

3 x 25 mL EvapoClean

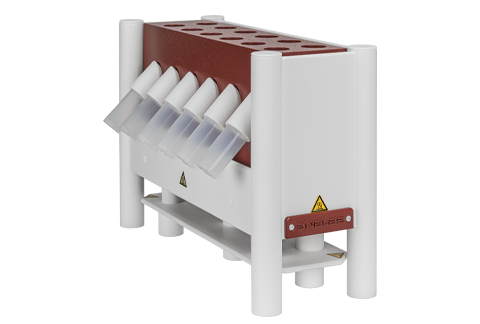

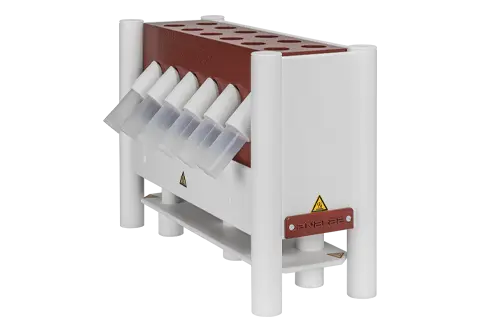

6 x 25 mL EvapoClean

6 x 25 mL EvapoClean

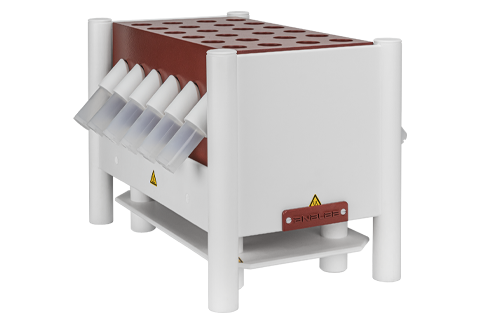

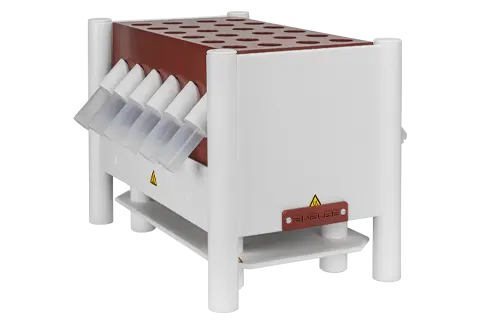

12 x 25 mL EvapoClean

12 x 25 mL EvapoClean

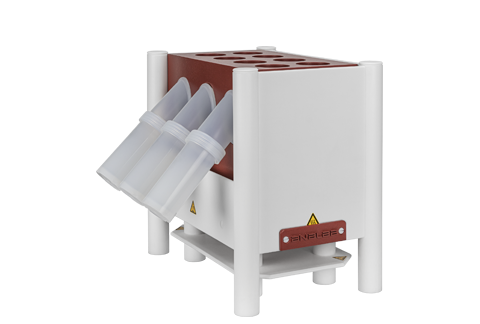

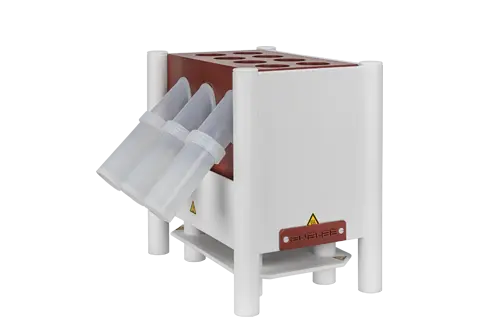

3 x 125 mL EvapoClean

3 x 125 mL EvapoClean

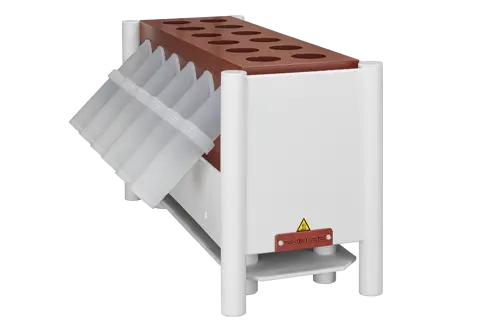

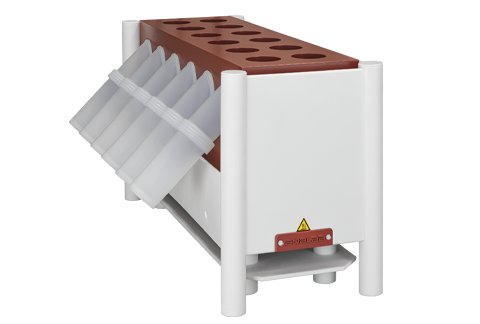

6 x 125 mL EvapoClean

6 x 125 mL EvapoClean

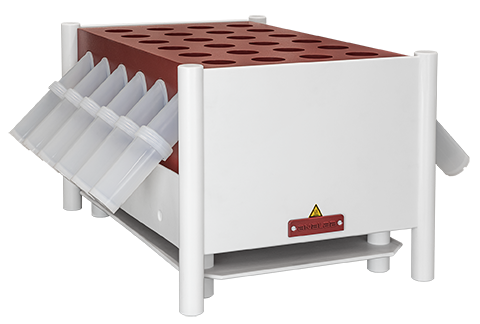

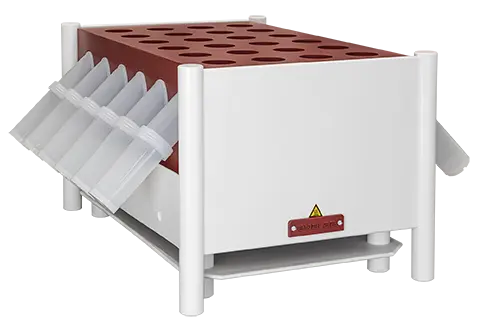

12 x 125 mL EvapoClean

12 x 125 mL EvapoClean

How It Works

  • Evaporation of a solvent to be removed is held at a constant, uniform & controlled temperature, slightly below the boiling point of the solvent
  • Solvent vapors are generated and condense into the room temperature PFA collection bottle
  • Process is performed in a closed environment, eliminating external sources of contamination
  • Heating wells on top of device can be used for digestion or vessel cleaning with CleanClever accessory
How It Works

Accessories

  • EvapoClean Vessel Kits available in 25 and 125 mL sizes
  • Vessel Kits consist of two PFA bottles, lids, and elbow
  • All Fluoropolymer construction for corrosion resistance and high purity
  • Alternate vessel kits can be added to provide venting, which is recommended with:
    • Operation within 10°C of the liquid boiling point
    • When utilizing organic solvents
  • Dual Port Elbow and Probe Kits also available to provide both venting and direct temperature measurements from within the sample vessel
  • Elbow Stands available to support vessel kits when not in use

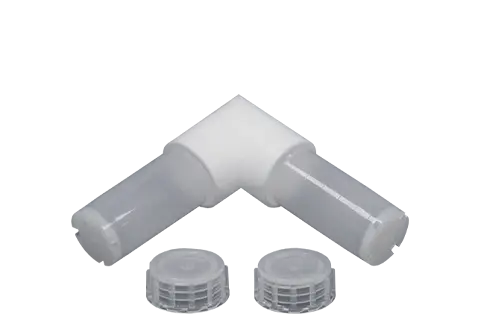

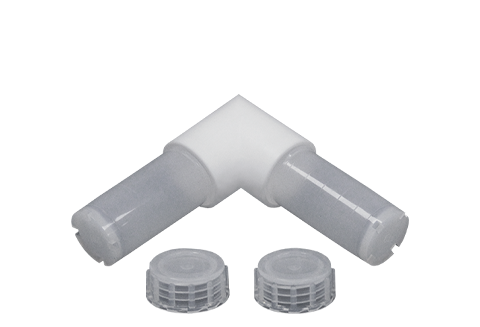

Vessel Kit 25 mL

Vessel Kit 25 mL

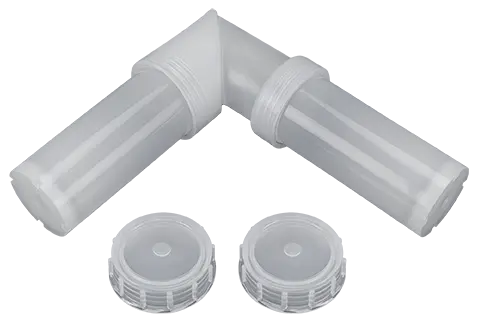

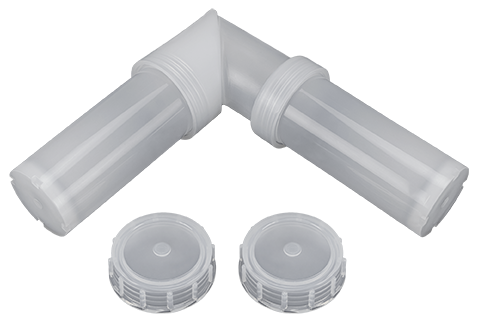

Vessel Kit 125 mL

Vessel Kit 125 mL

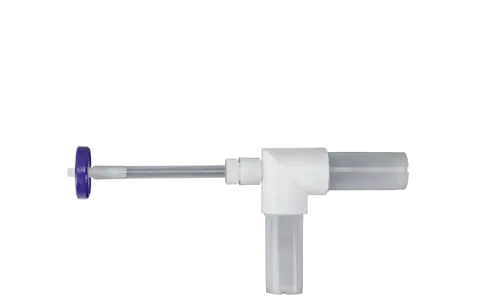

Vented Vessel Kit 25 mL

Vented Vessel Kit 25 mL

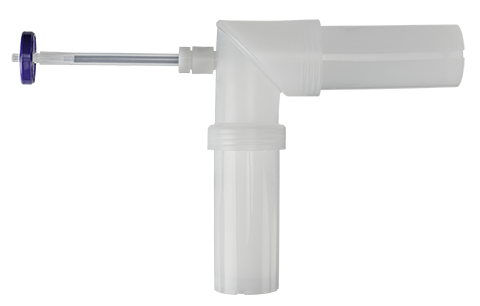

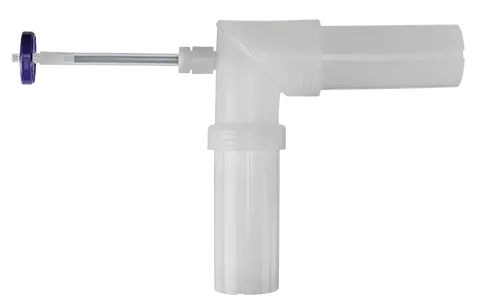

Vented Vessel Kit 125 mL

Vented Vessel Kit 125 mL

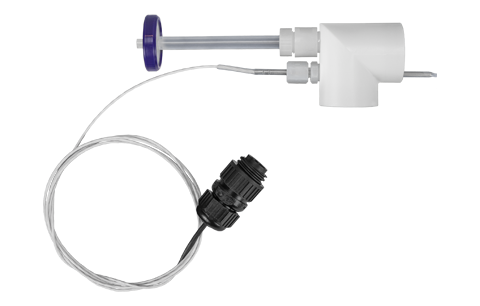

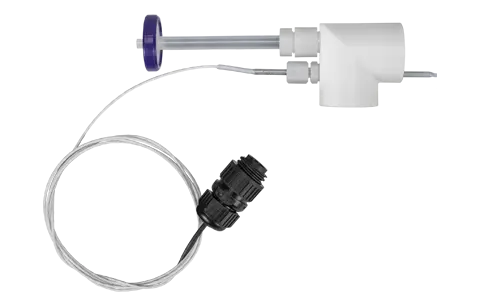

Dual Port Elbow & Probe Kit 25 mL

Dual Port Elbow & Probe Kit 25 mL

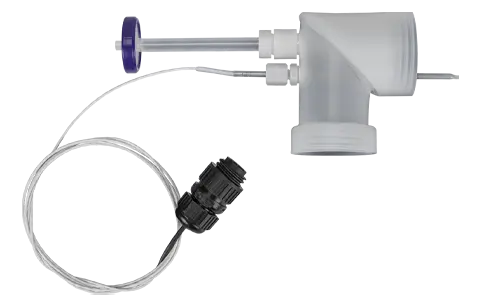

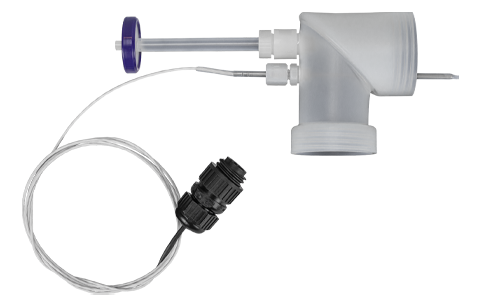

Dual Port Elbow & Probe Kit 125 mL

Dual Port Elbow & Probe Kit 125 mL

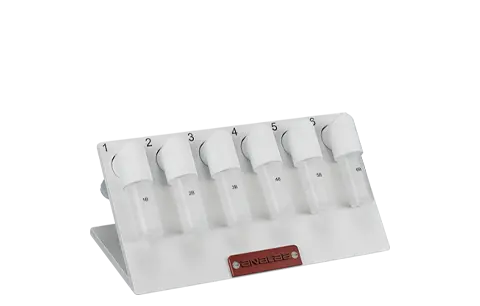

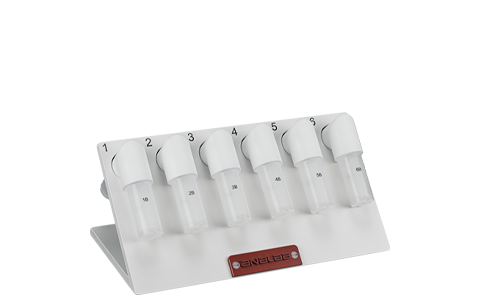

Elbow Stand, 6 position for 25 mL vessels

Elbow Stand, 6 position for 25 mL vessels

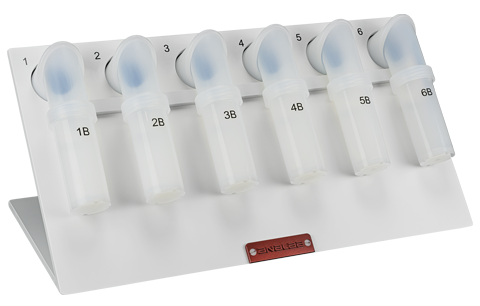

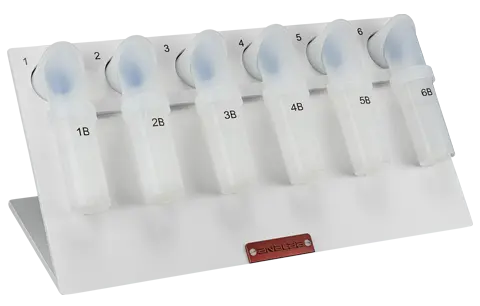

Elbow Stand, 6 position for 125 mL vessels

Elbow Stand, 6 position for 125 mL vessels

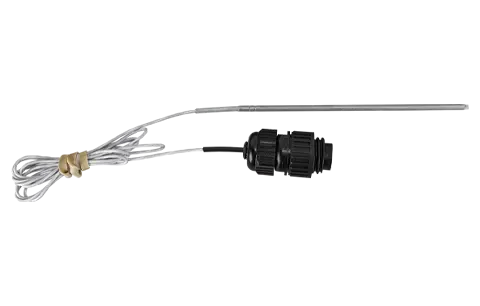

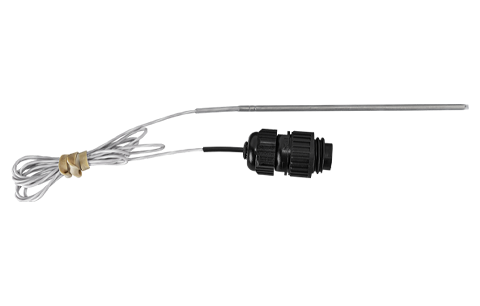

Temperature Probe for 25 & 125 mL vessels

Temperature Probe for 25 & 125 mL vessels

  • All Analab devices require an external temperature regulator/controller
  • Designed for remote location outside the corrosive atmosphere of the fume hood for extended operational lifetime
  • Available in 110–120 V & 208-240 V models
  • Single controller models available in:
    • Single-Setpoint Regulator with Timer
    • Single-Setpoint Dual Controller Regulator
  • Dual controllers available with temperature feedback/control from remote probe
Single-Setpoint Regulator with Timer

Single-Setpoint Regulator with Timer

Programmable Regulator with Timer

Programmable Regulator with Timer

Single-Setpoint Dual Controller Regulator

Single-Setpoint Dual Controller Regulator

Contact us for information on our EvapoClean!
