Autosamplers for ICP/ICPMS

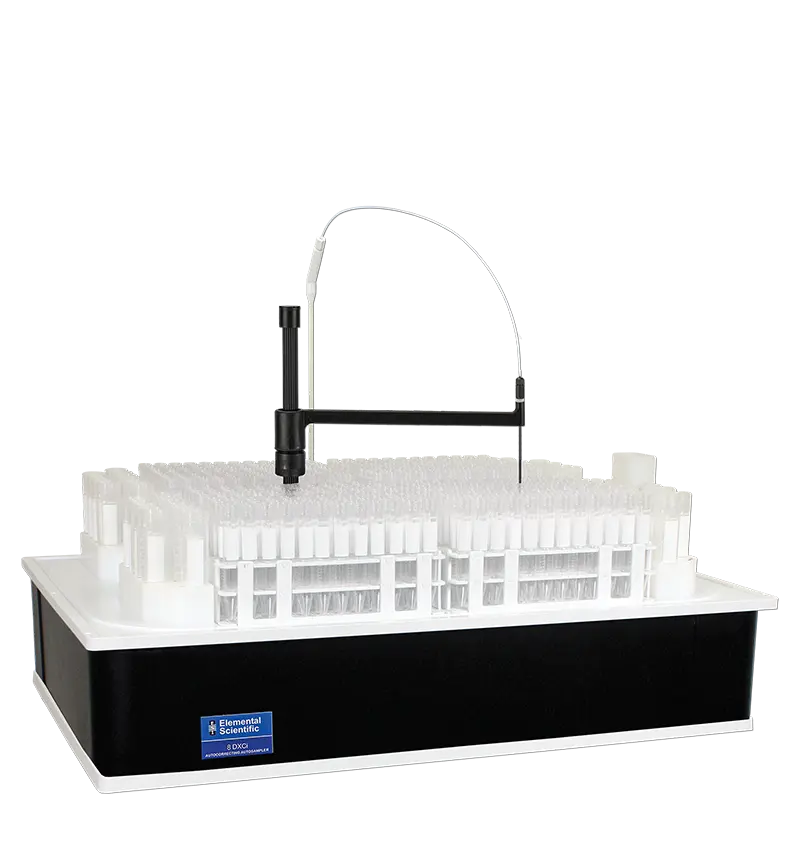

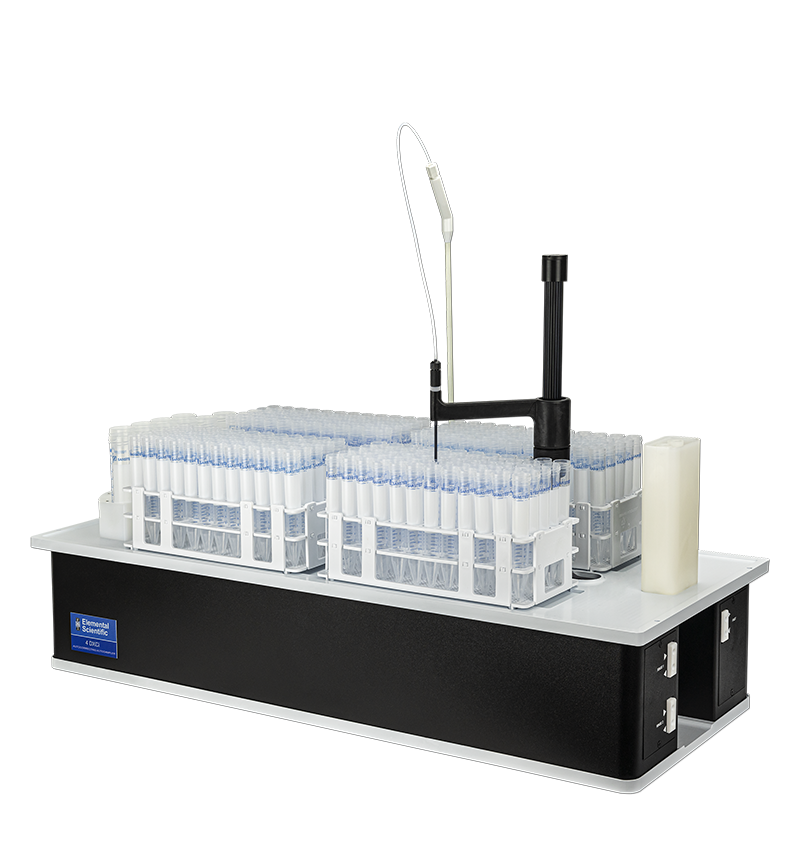

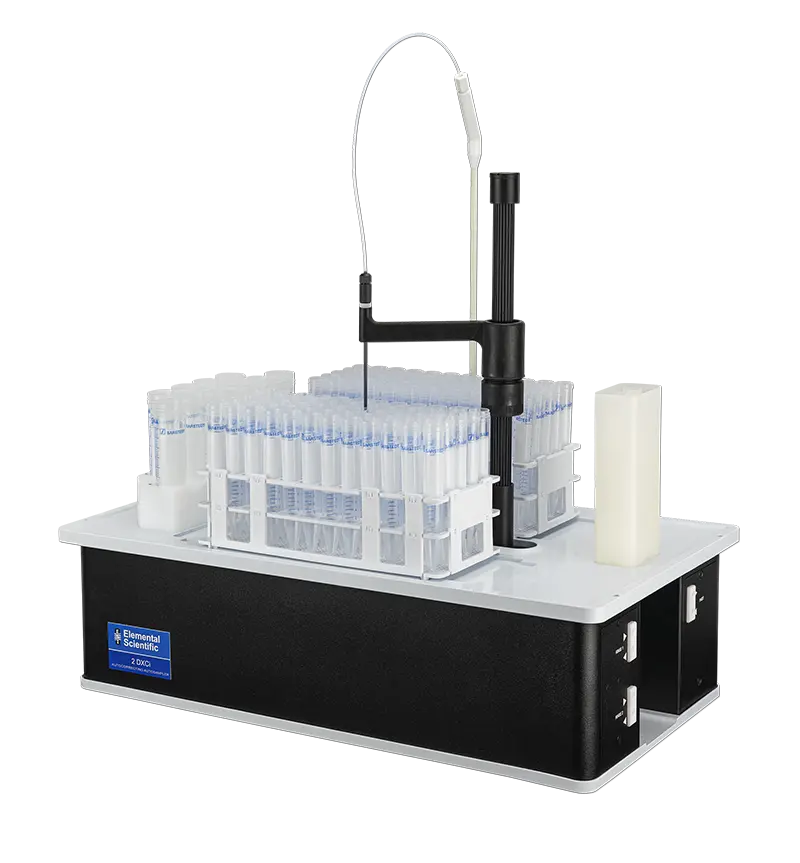

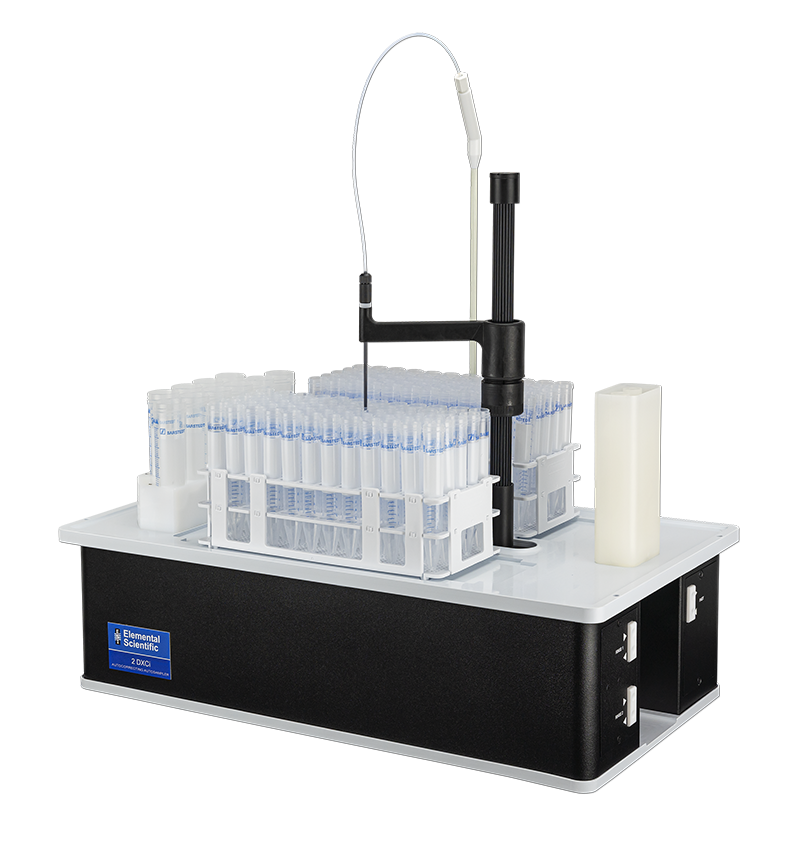

DXCi Autosamplers – High-Speed, Intelligent Position Autocorrection

Elemental Scientific DXCi autosamplers provide the highest speeds and autocorrecting probe positioning for the highest level of productivity.

DXCi Highlights

  • Automatically goes to the correct sample position, even if accidentally obstructed
  • Reports obstruction to the instrument software
  • Highest speed operation for enhanced productivity
  • Highest probe accuracy – Optimal for microplates and small sample vials
  • Parabolic probe with anti-kinking line
  • Direct upgrades to ultra-high throughput SampleSense FAST & prepFAST automation
  • Available in 2DXCi, 4DXCi, 8DXCi and 14DXCi autosampler models
  • Septum-piercing is available on 2DXCi & 4DXCi autosamplers

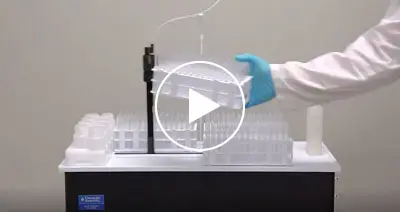

DXCi Autosampler Video

DXCi Autosampler In Action

Featured Diagram for All DX Autosamplers

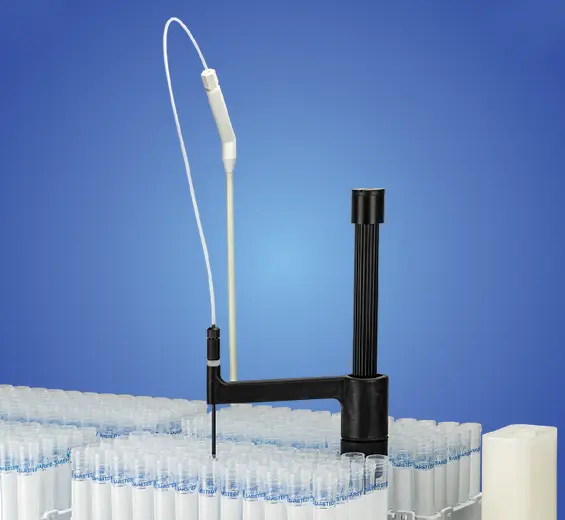

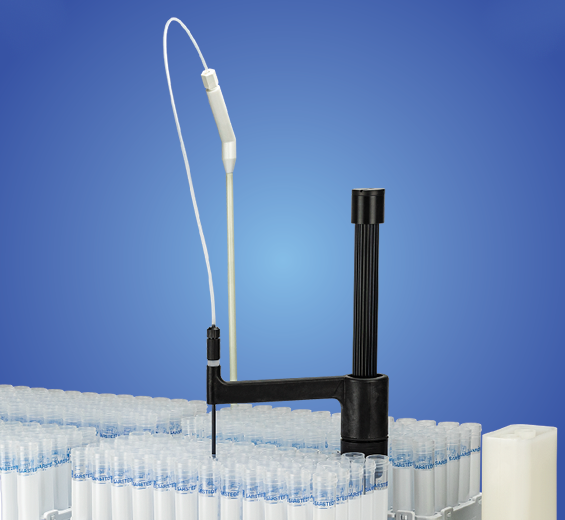

DXCi Intelligently Finds Sample Position

  • Automatically monitors and corrects positions in all axes of motion
  • Metal-free AutoAlign Arm operates at highest speed possible and provides highest accuracy for small sample containers
  • Self-supporting Parabolic Probe line resists kinking
DXCi Intelligently Finds Sample Position

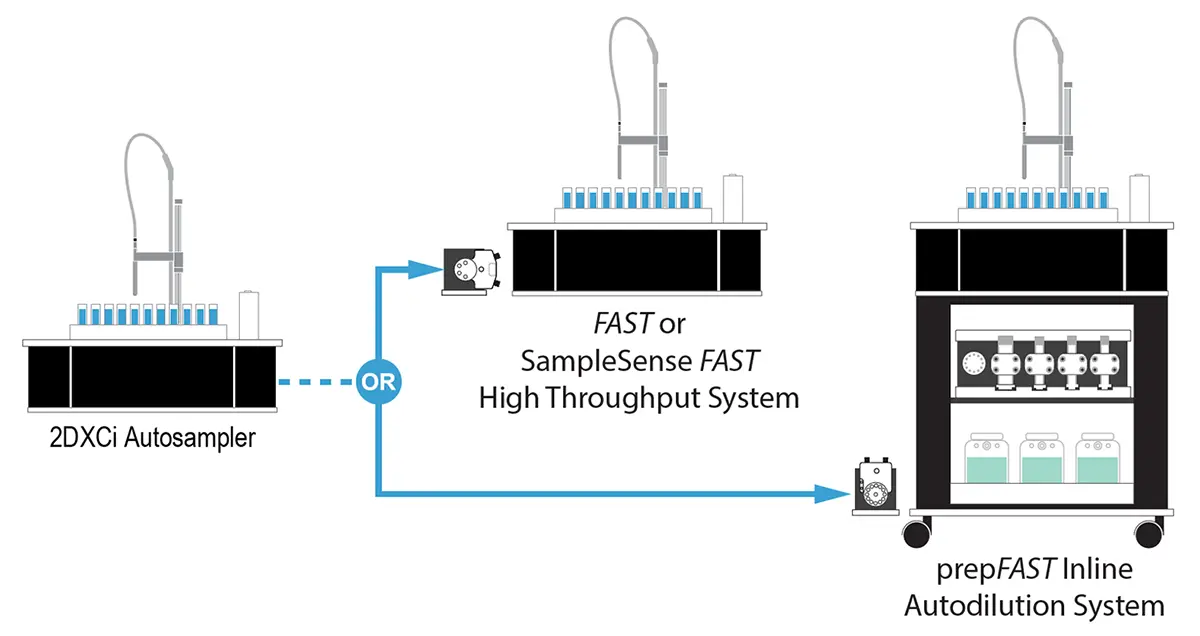

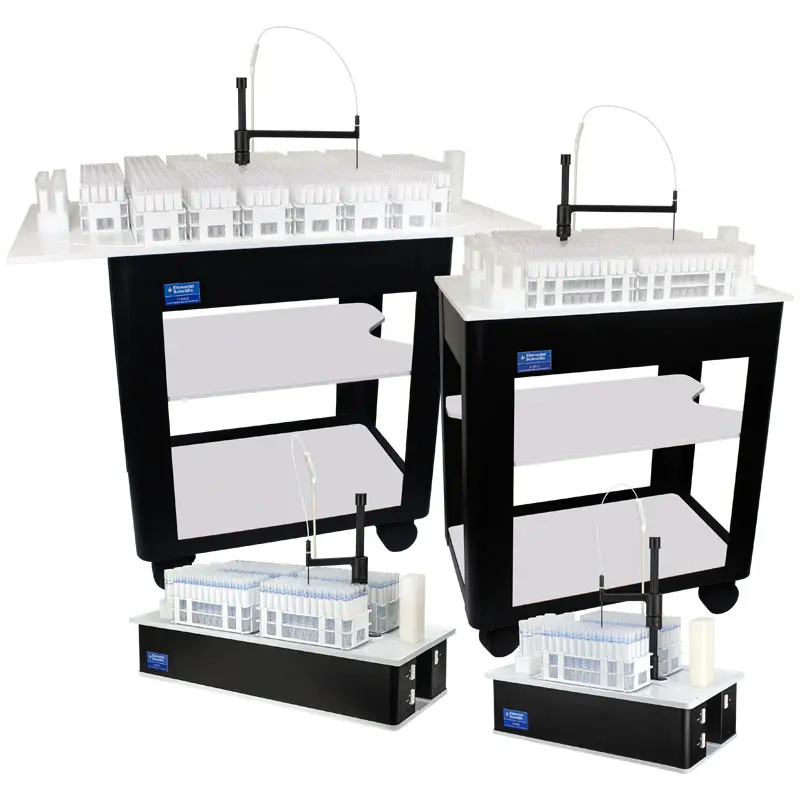

DXCi Autosamplers are Upgradable

DXCi autosamplers provide a direct upgrade path to both FAST high throughput and prepFAST autodilution system as laboratory automation needs grow.

DXCi Autosamplers are Upgradable

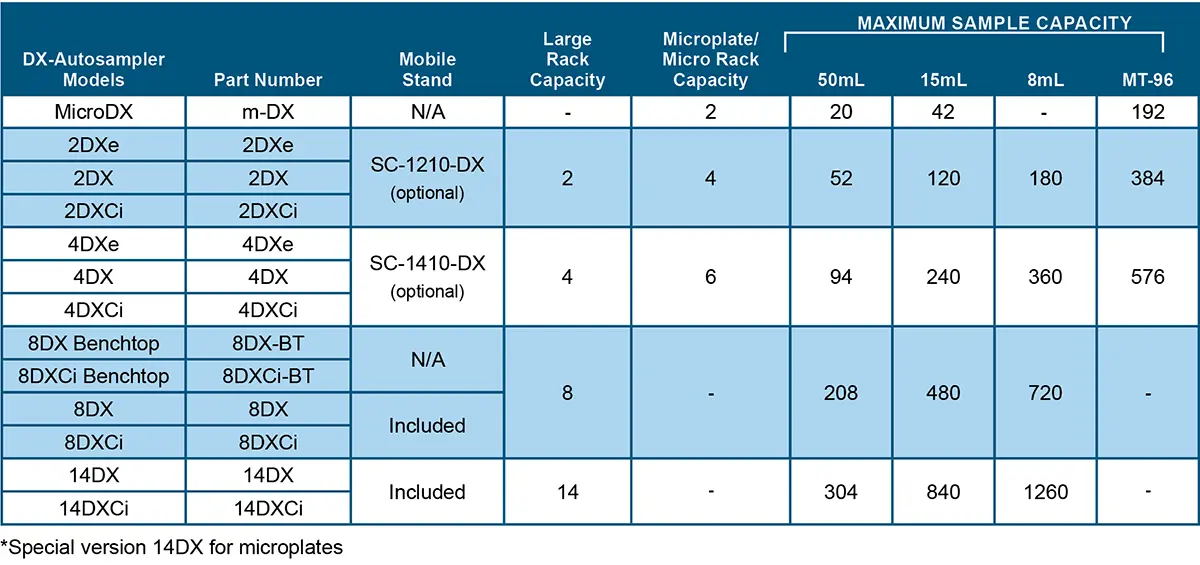

DXCi Autosampler Capacity

DXCi Autosampler Capacity

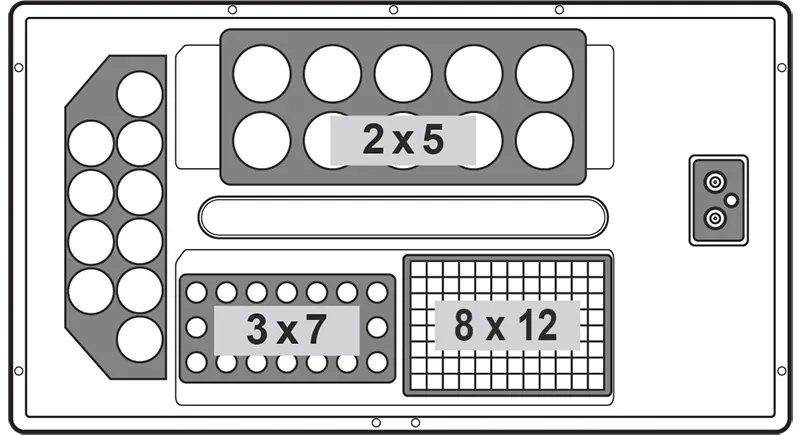

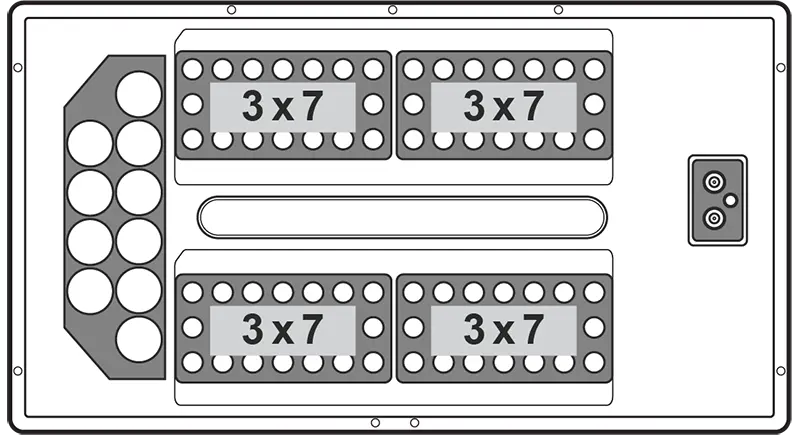

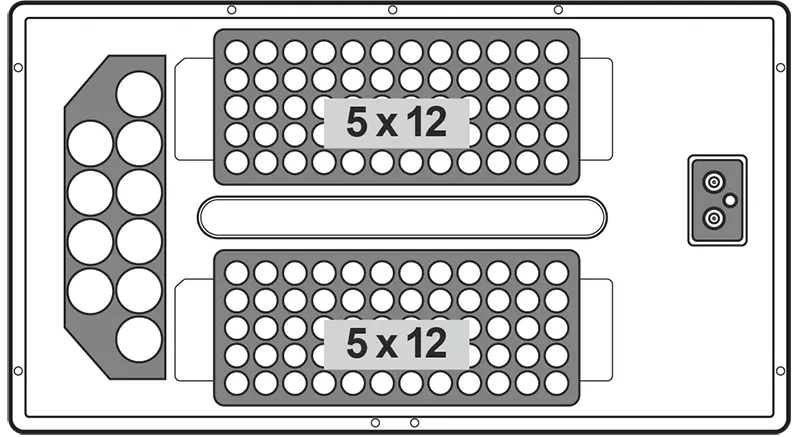

Examples of 2DXCi Rack Configurations

Rack Configurations - 2DXCi
Rack Configurations - 2DXCi
Rack Configurations - 2DXCi

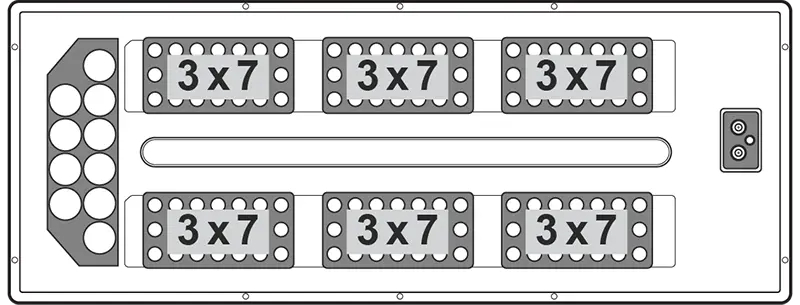

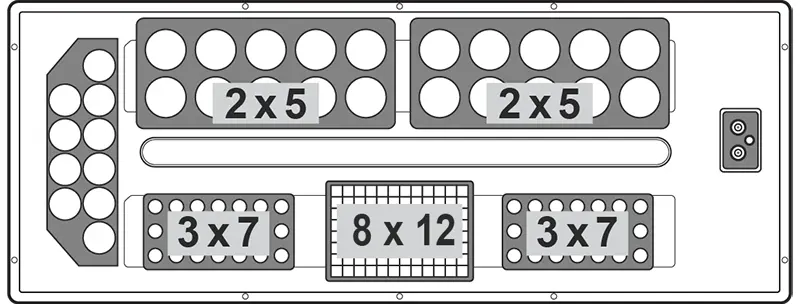

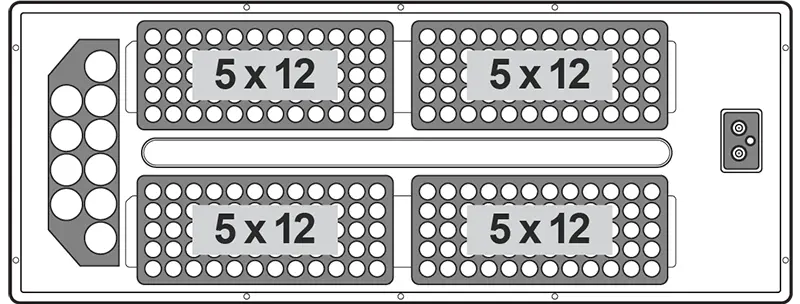

Examples of 4DXCi Rack Configurations

Rack Configurations - 4DXCi
Rack Configurations - 4DXCi
Rack Configurations - 4DXCi

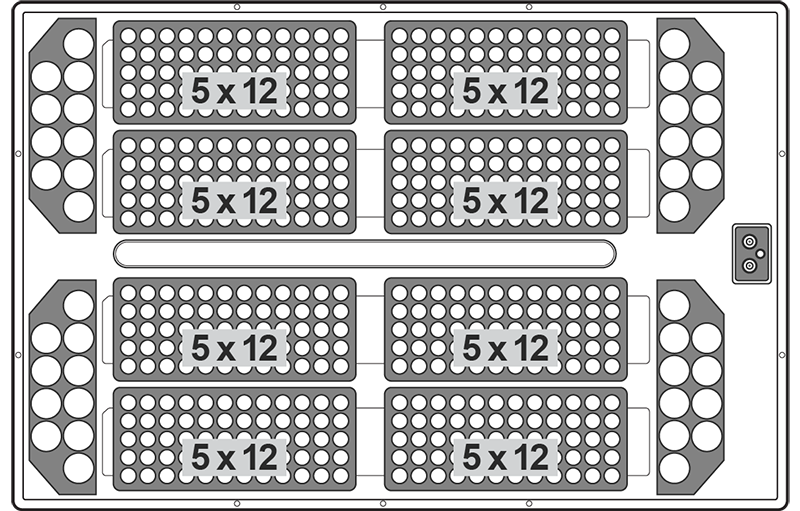

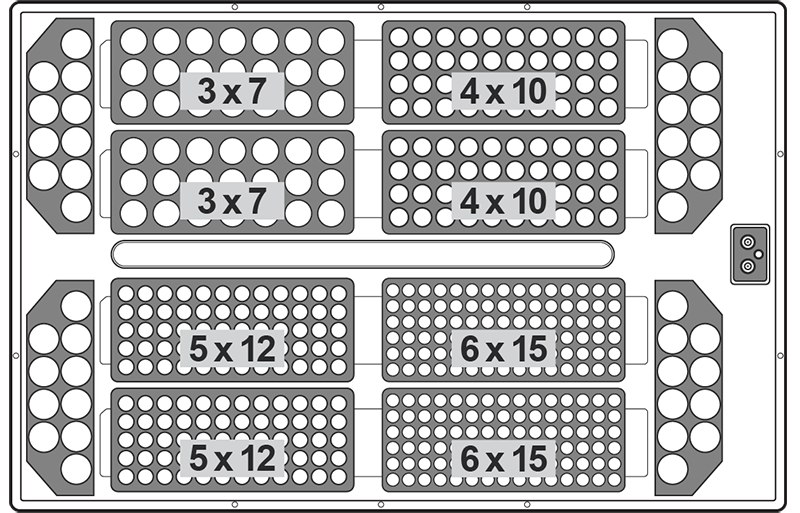

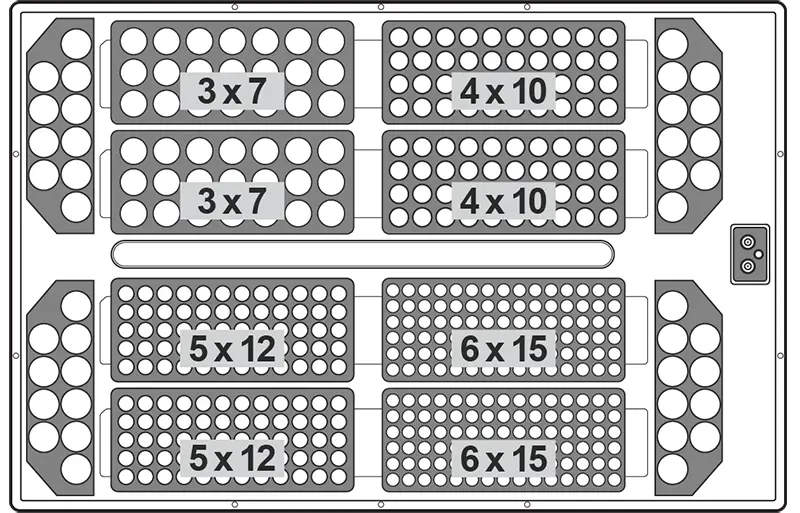

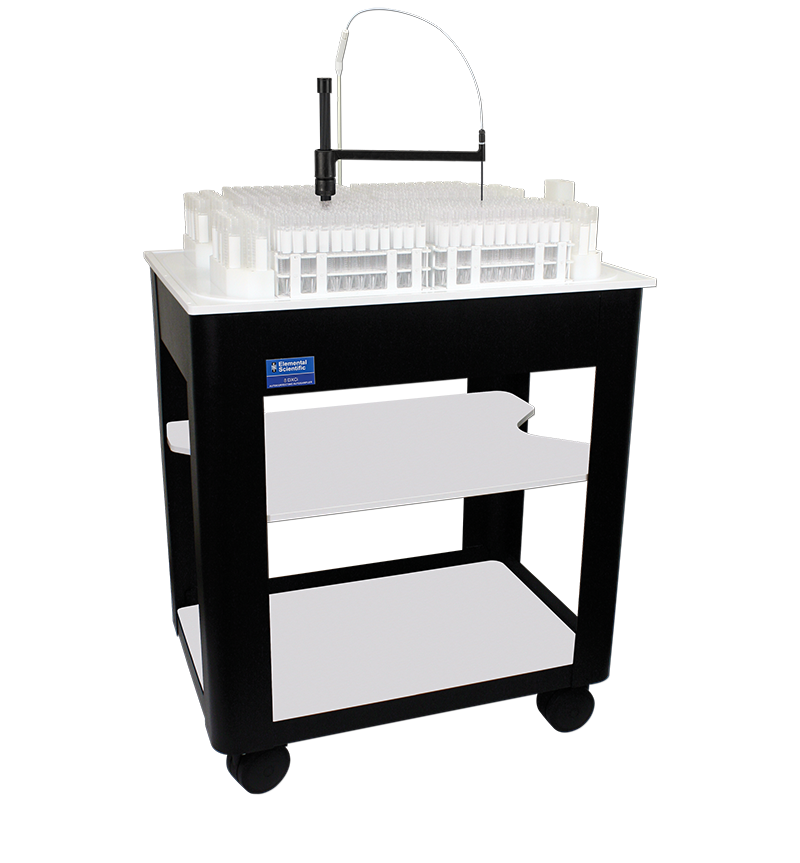

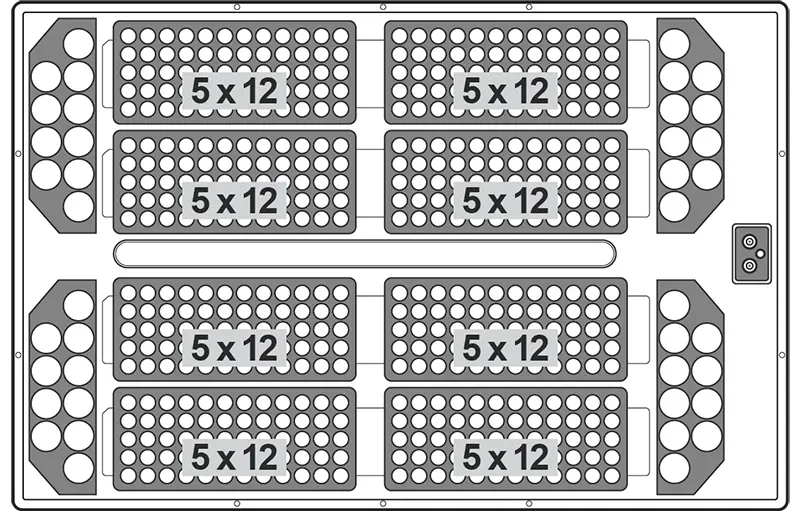

Examples of 8DXCi Rack Configurations

Rack Configurations - 8DXCi
Rack Configurations - 8DXCi

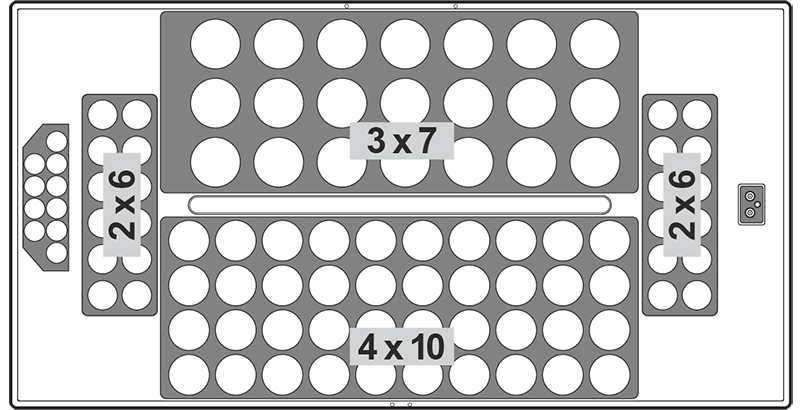

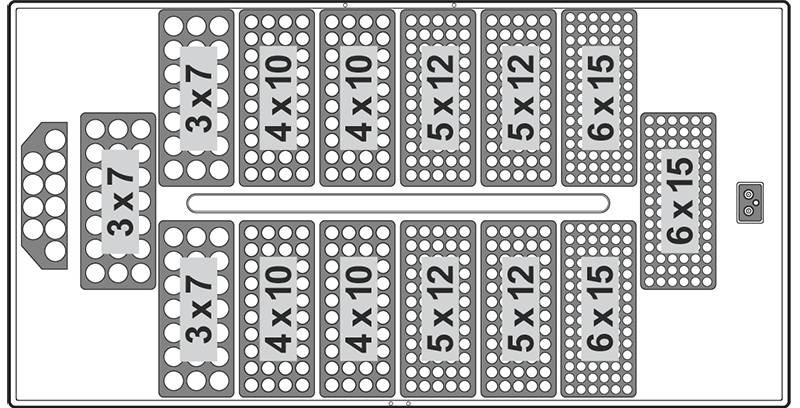

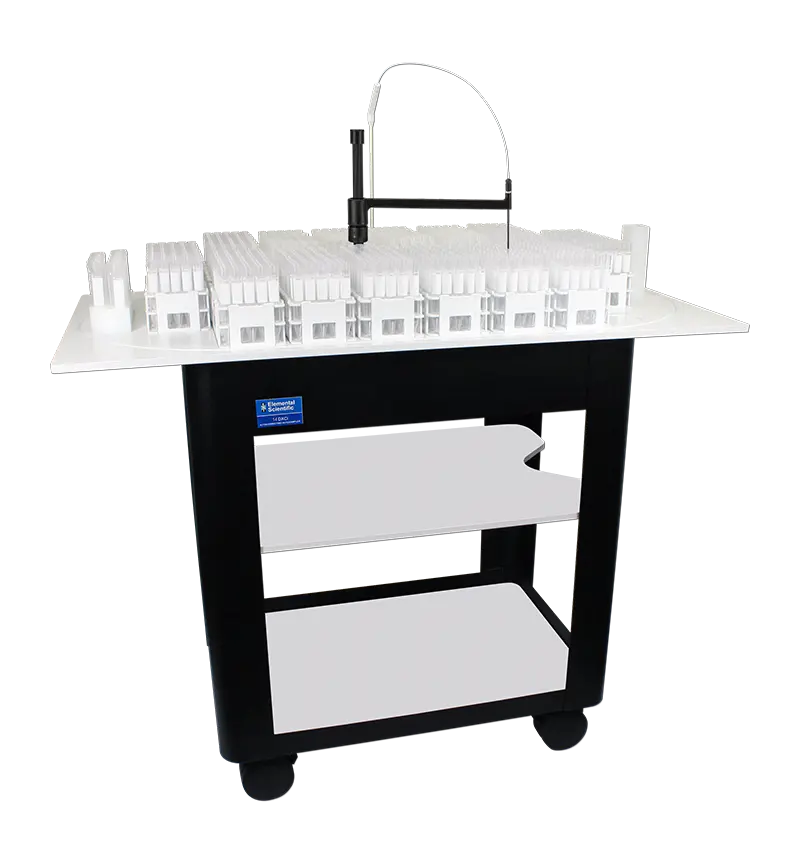

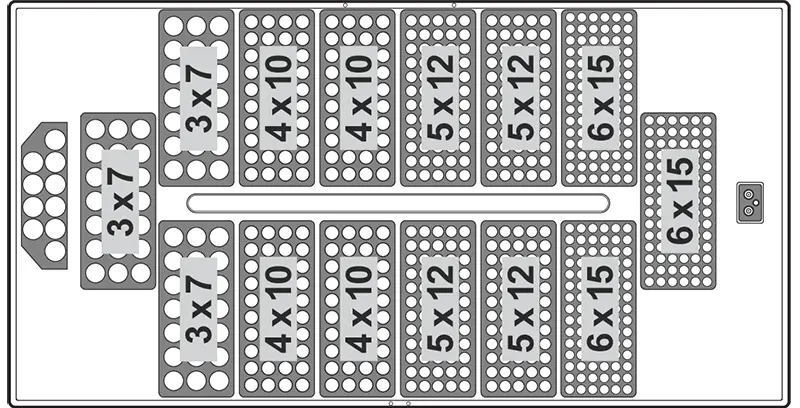

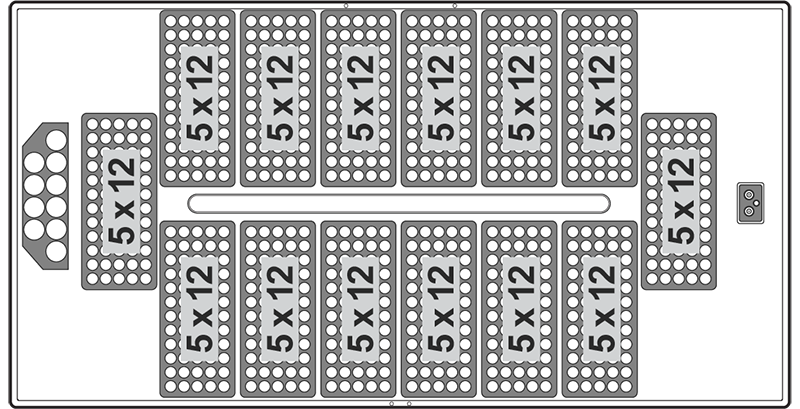

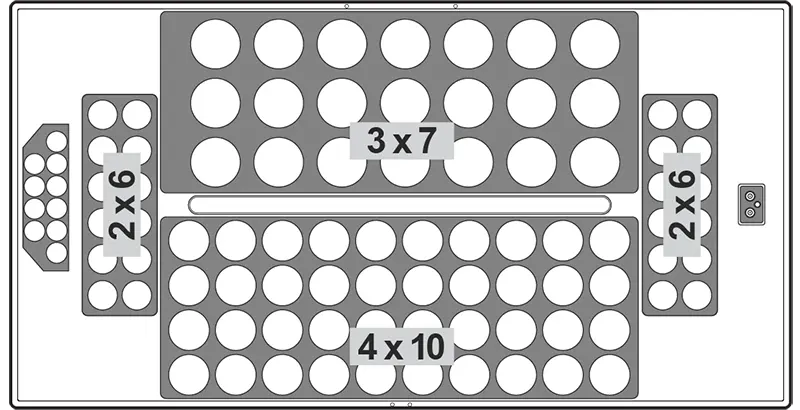

Examples of 14DXCi Rack Configurations

Rack Configurations - 14DXCi
Rack Configurations - 14DXCi
Rack Configurations - 14DXCi

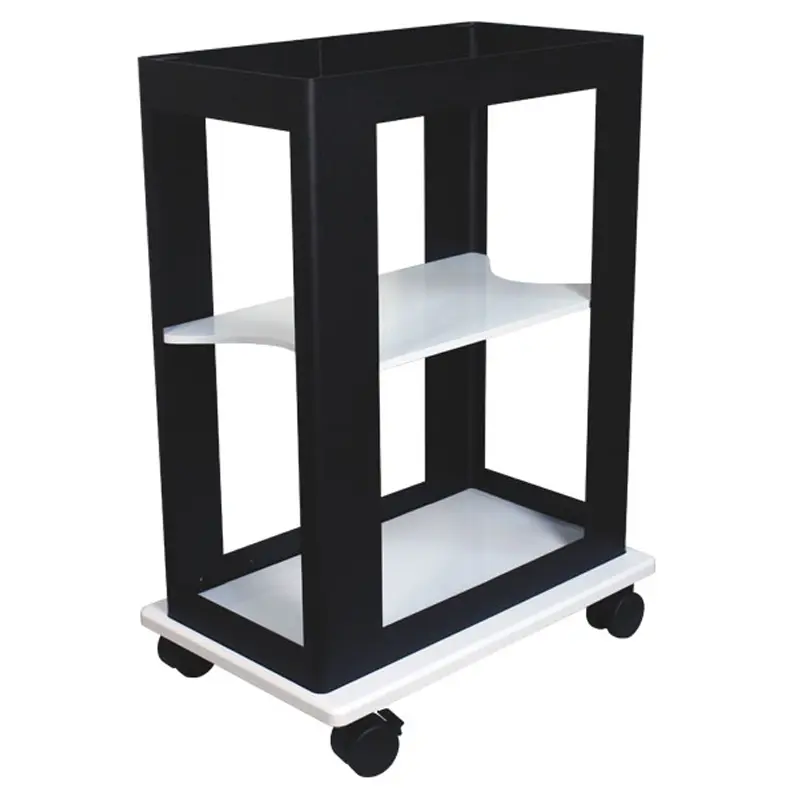

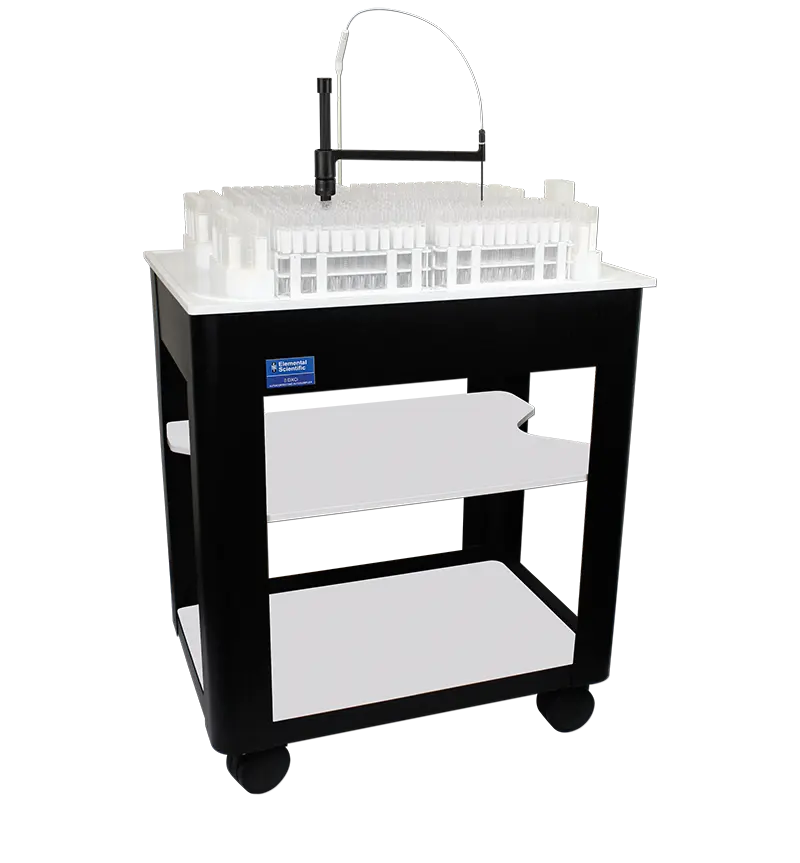

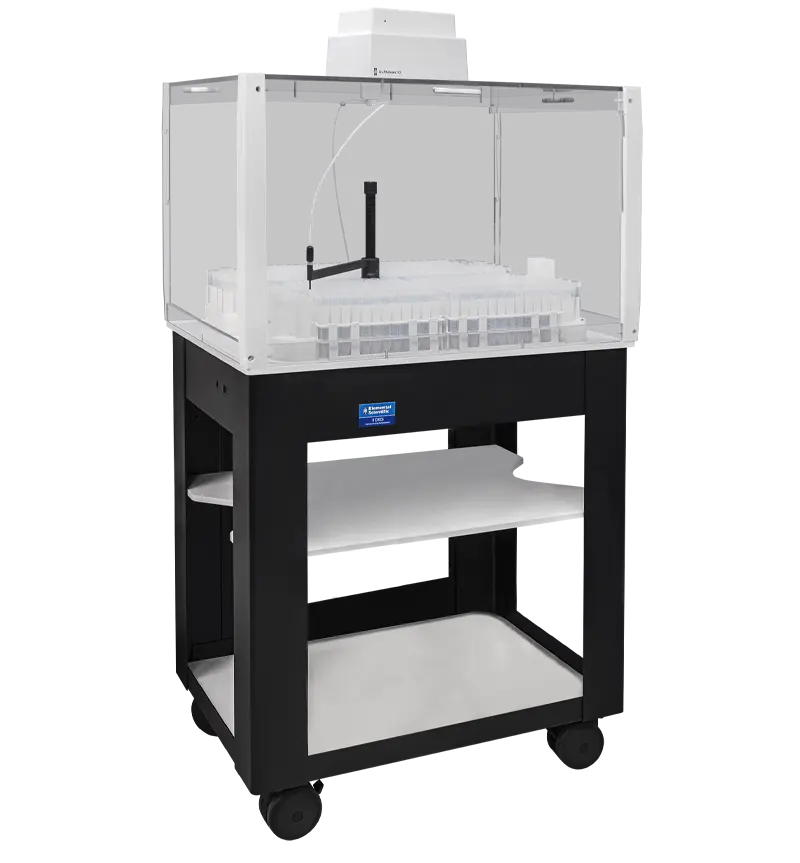

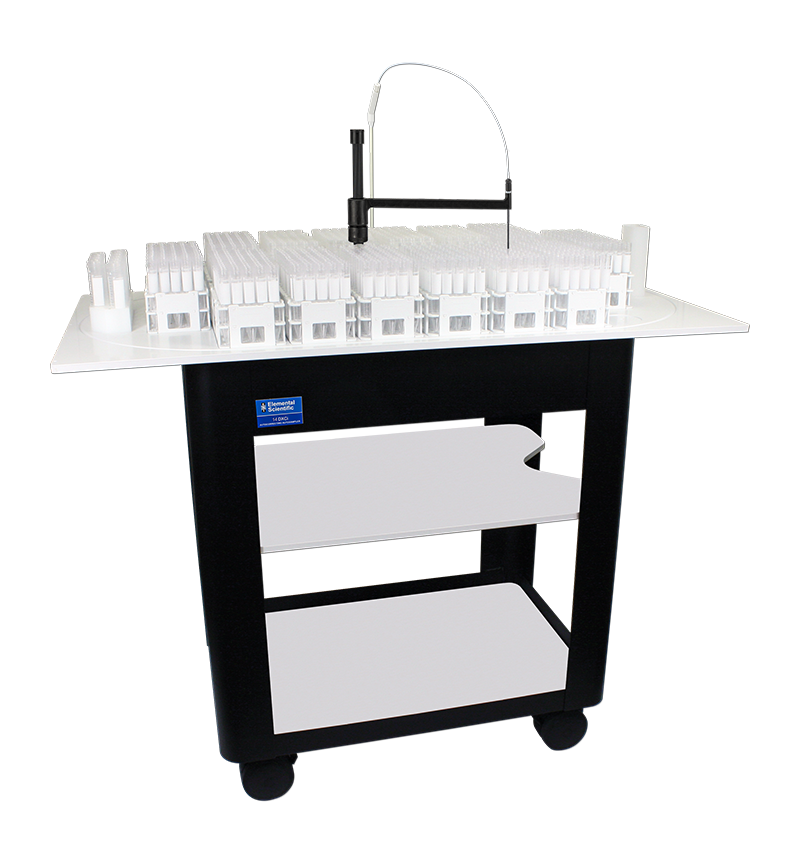

Mobile Stations

The mobile station secures and positions the DX autosampler, eliminating the need for an autosampler table (not included with purchase of the autosampler).

Benefits:

  • Convenient - Autosampler, pumps, rinse and waste bottles contained in a single unit
  • Compact - Footprint only slightly larger than autosampler itself, saving valuable lab space and maintaining accessibility to sample racks
  • Attractive - Station eliminates need for separate table
  • Mobile - Locking wheels; Eliminates unnecessary external connections to rinse solution and waste reservoirs; Middle and lower shelves for storage and bottles

Part # Description
SC-1210-DX Mobile Station for 2DX autosampler (shown)
SC-1410-DX Mobile Station for 4DX autosampler

Mobile Station - 2DX

Clean3V Enclosures

ICP and ICPMS sample integrity is maintained with the ESI DXCi autosampler Clean3V enclosures. They can be configured either as a dust cover or ULPA-filtered minienvironment.

Benefits:

  • Protects samples from airborne contamination
  • Exhaust acid fumes to protect the laboratory environment
  • Clear acrylic construction for easy sample viewing
  • Covers only the sample area—the electronics are kept outside the enclosure
  • Three vertical sliding doors provide easy access to sample racks at any time

Clean3V Enclosure Only Description
C3V2 Clean3V Enclosure for 2DX ESI Autosampler with vertical sliding doors
C3V4 Clean3V Enclosure for 4DX ESI Autosampler with vertical sliding doors
C3V8 Clean3V Enclosure for 8DX ESI Autosampler with vertical sliding doors
C3V14 Clean3V Enclosure for 14DX ESI Autosampler with vertical sliding doors

Autosampler Enclosure

ULPA Air Filter

The ULPAclean 10 (Ultra-Low Particle Arrester) filter creates a clean, positive pressure environment for samples and standards and prevents airborne contamination. It removes 99.9995% of 0.1 µm or larger particles. The mounting plate is compatible with all DX autosampler Clean3V enclosures.

Part # Description
ULPA10 ULPAclean-10 filter for ESI Clean3V Enclosures

Power Aire Volume
24VDC 1.0 (m3/min) or 0.5 (m3/min)
ULPAclean 10 Filter

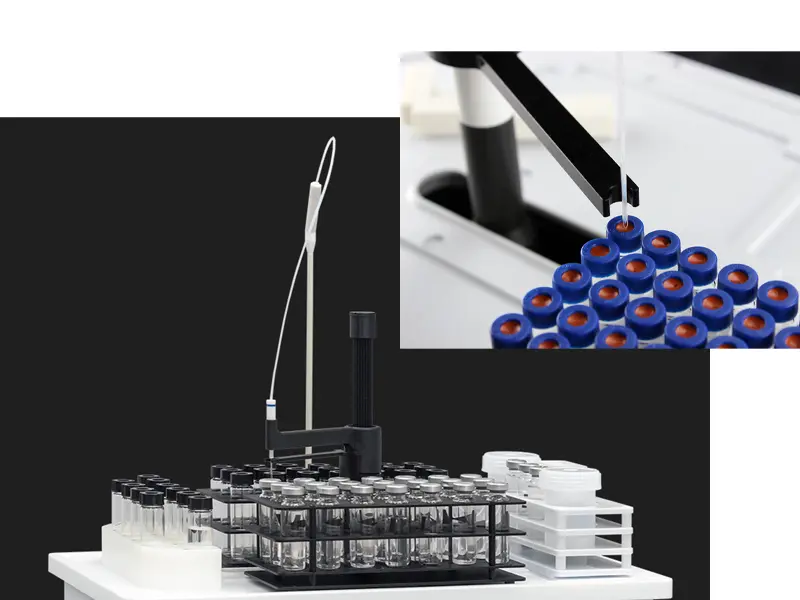

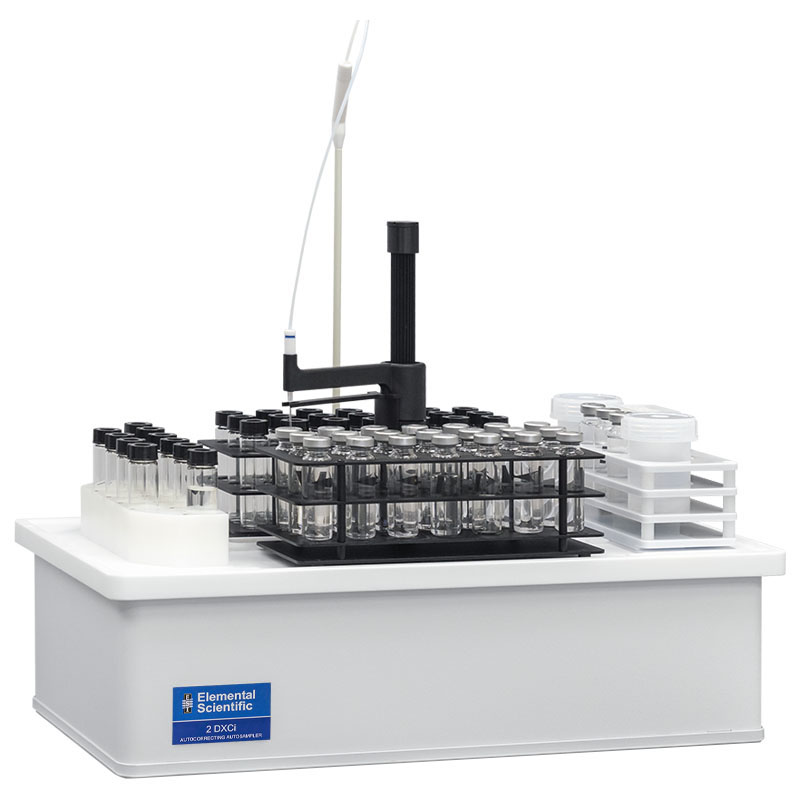

Septum Piercing Probe

Optional accessory for piercing septum-sealed vessels is available for Micro DX, 2DX, 4DX, 2DXCi & 4DXCi autosampler models. Kit PF-SPA includes a 110 mm sapphire septum-piercing probe, probe fork assembly, 3.5 inch rinse station block, plus required fittings and lines.

Part # Description
PF-SPA Septum Piercing Option
Septum Piercing Probe

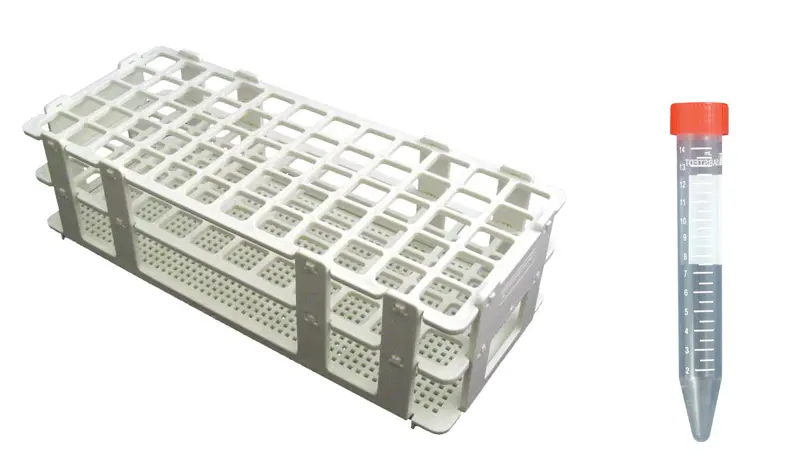

Sample Racks & Vials

From 96-well microplates to 100 ml volumetric flasks, ESI offers both standard autosampler racks as well as an extensive variety of specialized racks to accommodate almost any vial, vessel or bottle imaginable for automated sample analysis. DX Series autosamplers offer flexible rack configurations that permit almost any sample size, from micro vials up to 500 mL and larger bottles.

PFA vials are ideal for applications that require the highest purity. Made of ultrapure, ultra-chemically resistant material, these vials are an excellent choice for high purity, semiconductor and micro samples. PVDF sample vials are a lower cost alternative to our high-performance PFA vials. These high-tensile-strength, fluoropolymer vials can replace more expensive PFA vials in many applications. Non-PFA sample vessels manufactured from polymer plastics such as polypropylene, polyethylene, and polystyrene, are suitable for general purpose analytical applications.
