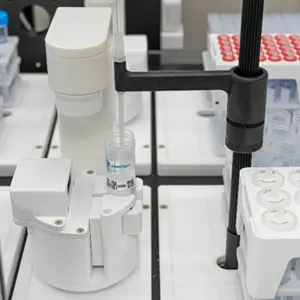

Innovative Multifunctional Automation Module

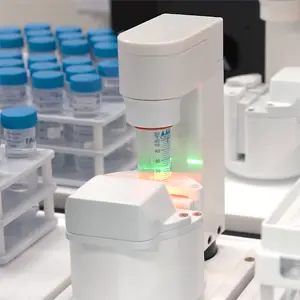

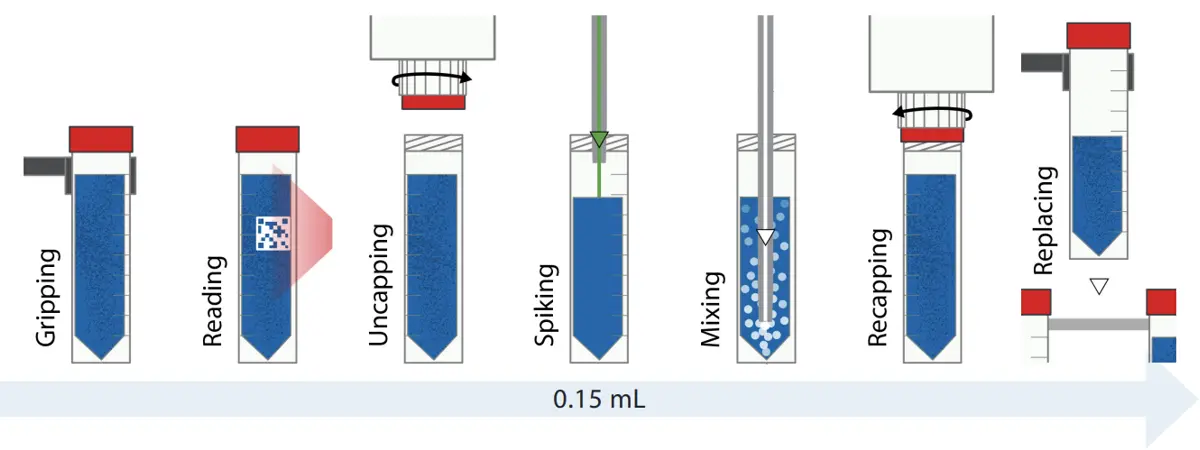

Automated Uncapping, Recapping and Barcode Reading

High-throughput Automation

• Multifunctional module combines several steps into one
• Saves time to increases laboratory productivity

Improves Lab Safety

• Reduces contact with harmful chemicals and fumes
• Eliminates overuse injuries

Metal-free, Acid Inert Material

• Prevents system corrosion from high acid concentrations
• Eliminates sample contamination from metal components

TRAXStation Software

Conduct Your Lab with LabSymphony

User-Friendly UI

• Decrease time and money spent on employee training
• Start your daily runs in just three taps with the touchscreen

Customizable

• Sample preparation methods easily customized to meet your lab SOP
• Quickly navigate to methods on home screen

Import and Export

• Easily build methods by importing a csv or excel file
• Export sample information to ICP/ICPMS software to automatically generate run list

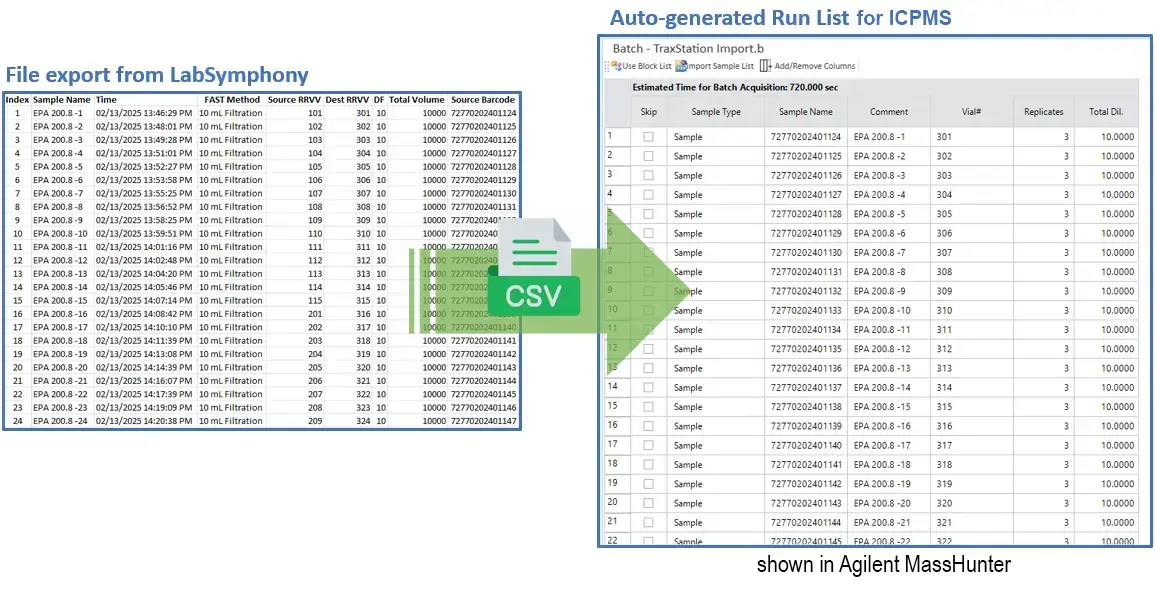

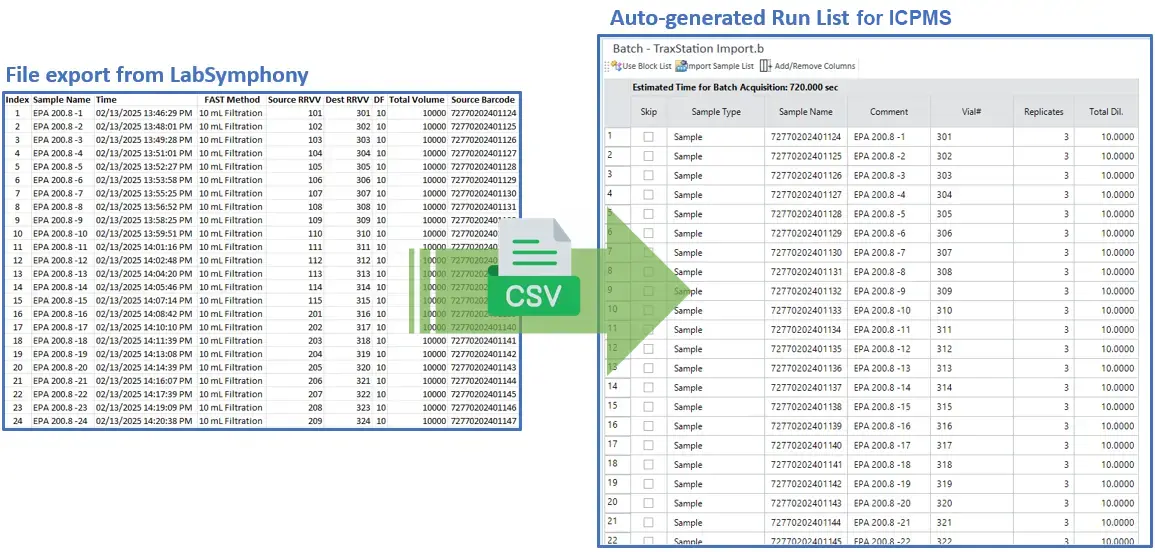

LabSymphony Export to ICPMS Software

Metal-free Luer-adapting Probe

Automatic Sample Filtration with Luer Filters

Innovative Design

• Probe tip automatically attaches to, dispenses through, and safely ejects 0.45 μm Luer filters
• Engineered to reach the bottom of large sample vessels

Highly Precise

• Adds precise volumes of reagents, such as HNO3 and ISs
• Capable of precise aliquoting as low as 10 µL

Maximizes Cost Efficiency

• Allow labor to be spent on more important tasks
• Compatible with low-cost 13 mm filter disks

Intelligent High Pressure Syringe Module

Excellent Performance

• Precise aliquot - as low as 10 µL
• Syringe module is easily visible during sample runs

Syringe Options

• Wide variety of syringe options from 3 mL - 50 mL
• Available in high purity quartz

Easy Maintenance

• ESI's Magnetic SnapValves are easily removed for cleaning
• Station pump is mounted in a highly accessible location

Acid-Resistant Sample Flowpath

Clean and Protected Sample Environment

Prevents Contamination

• Avoid sample contamination from eroding metal components
• TRAXShield enclosure with ULPAclean 10 filtration against airborne contaminants

Prioritizes Lab Safety

• Shields harmful fumes to ensure safe lab space
• Reduces physical contact with high acid concentrations

Long System Lifetime

• Acid resistant components provide lasting system operation
• Save time and money by reducing frequent maintenance

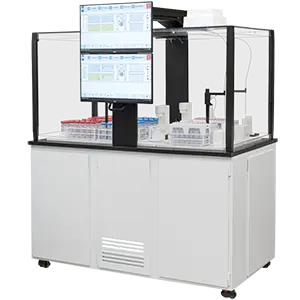

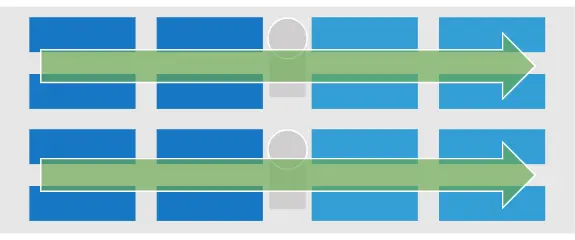

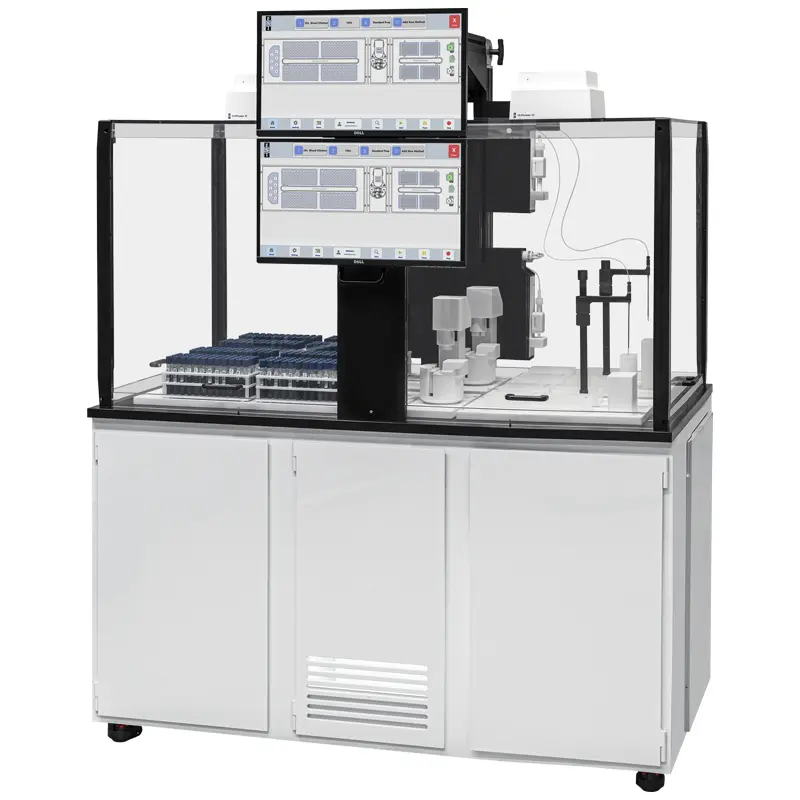

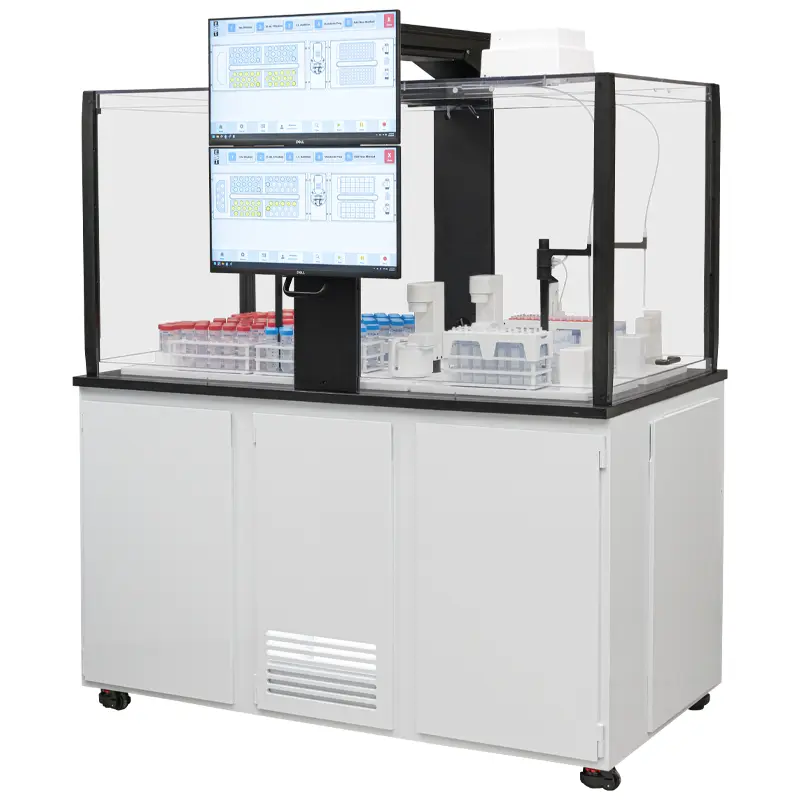

TRAXStation 442

High Capacity

• 2 Process Workflows
• 8 Source Racks
• 8 Destination Racks

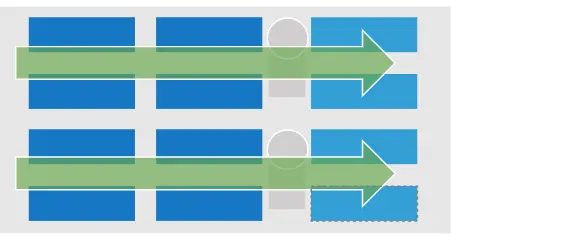

TRAXStation 422

Medium Capacity

• 2 Process Workflows
• 8 Source Racks
• 4 Destination Racks

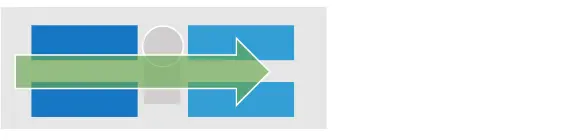

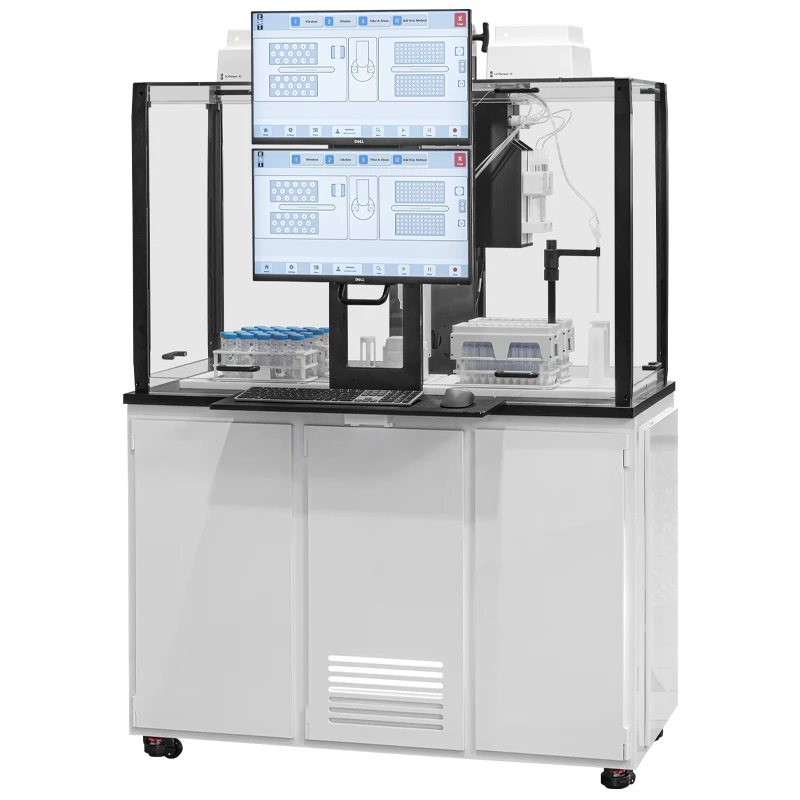

TRAXStation 221

Compact Footprint

• 1 Process Workflow
• 2 Source Racks
• 2 Destination Racks

Reduce Cost of Consumables

Eliminate Pipettes

• LuerProbe - Aliquoting and dispensing with robust, reusable sample probe

Eliminate Disposable Syringes

• StationPump - High-pressure and high purity quartz syringe module

Decrease Vial Use

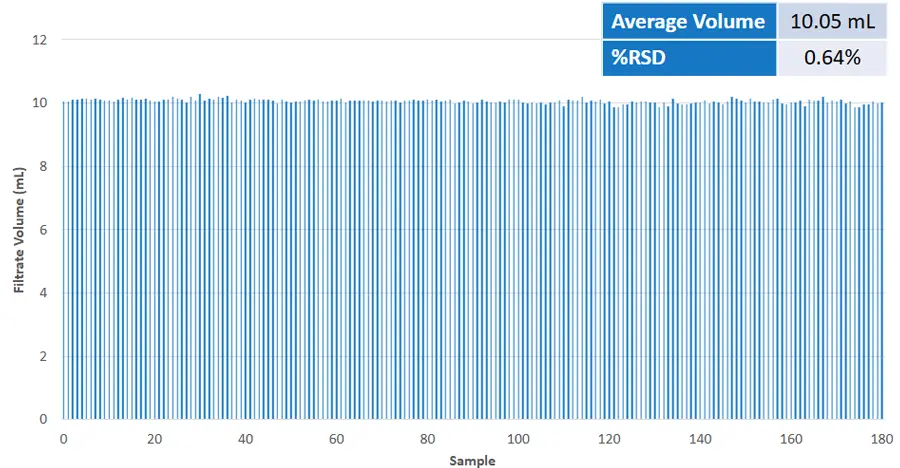

• LuerProbe & StationPump - Consistent and high back pressure allows for consistent production of filtrate volume, eliminating need for intermediate collection vessel

Save Money on Filters

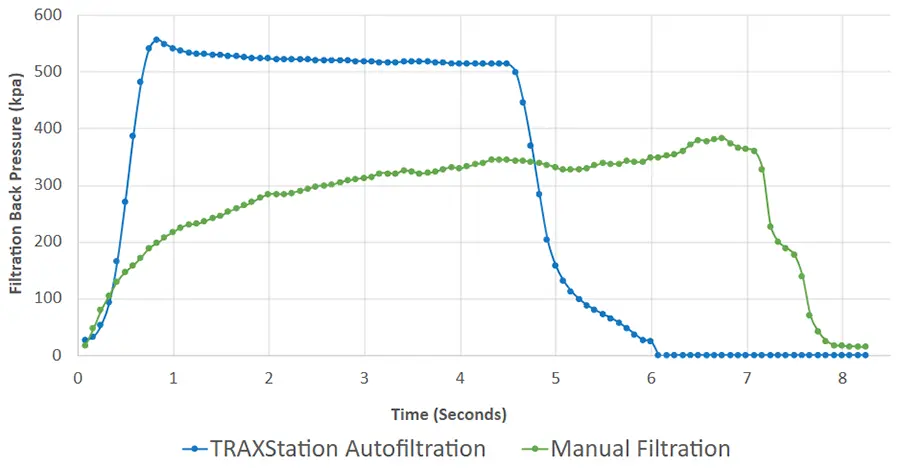

• LuerProbe & StationPump - StationPump produces more consistent and higher pressure than manual filtration methods, allowing for the use of smaller and cheaper luer filters

Decrease Glove Usage

• TRAXLink - Automatically uncaps, simply place capped samples on deck
• StationPump - Automated syringe-driven filtration, no need for gloves

Decrease Labor Costs

Decrease Employee Training Time

• Software - User-friendly interface stores preparation methods easily accessed on home screen, just select your method and walk away

Free Up Time for More Critical Tasks

• TRAXStation Automation - Select your method and let TRAXStation do the tedious tasks, freeing up your hands for more important work

Decrease Maintenance Costs

Metal-free Components

• TRAXLink, TRAXShield, TRAXBench and ULPAclean10 all are constructed with acid resistant materials
  • Prevents corrosion caused by highly concentrated acids
  • Ensures a long system lifetime with minimal maintenance required

High Throughput

• TRAXLink - Automated Uncapping, Recapping and Barcode Reading eliminates the need for tedious, time-consuming manual tasks
• LuerProbe - LuerProbe's precise accuracy in automatically producing amounts of sample filtrate (0.45 µm) enables both filtration and filtrate dilution to be performed simultaneously
• StationPump - StationPumps automatically and instantly add diluent behind the sample during filtration and filtrate dilution, enabling both processes to occur simultaneously
• Software - Custom Software Methods are developed to exactly replicate and automate the laboratory's existing sample prep methods
• TRAXStation Automation - Enables smaller labs to perform high-throughput applications with large capacity and ability to run parallel processing modules

Easy Maintenance

• MagValves - Simply snap on and off with your hands for maintenance, no need for tools
• TRAXBench - TRAXBench's mobility provides easy accessbility from all sides, providing complete and effortless reach to the entire system

High Capacity

• TRAXBench - TRAXBench can hold up to 480 prepared samples ready for analysis with 2 parallel process workflows,

24/7 Sample Preparation

• TRAXStation Automation - Can process over 1,400 samples a day without the need for breaks, sleep or time off that people require
• Software - Software Methods are designed to have sample prep workflows run constantly with the touch of a button

Eliminate Exposure to Harmful Fumes

• ULPAclean 10 - Exhausts acid fumes to protect the laboratory environment and ensure an ultra clean sample environment
• TRAXShield - Enclosure surrounds samples, preventing harmful fumes from entering the lab environment
• TRAXLink - Automated Uncapping and Recapping minimize the time samples remain uncovered, effectively containing fumes

Prevent Contact with Harmful Chemicals

• Waste Management Cabinet - Simplified waste line management allows the clean exchange of the waste bottle and contains spills, preventing contact with chemicals
• LuerProbe - LuerProbe automates sampling, filtration and dilution, removing need for pipette use, preventing chemical contact
• TRAXLink - Automated Uncapping and Recapping prevents physical handling of the chemicals when they are uncovered, eliminating contact with chemical
• StationPump - StationPump's automation eliminates manual filtration, which requires physical handling of chemicals
• Filter Bin - LuerProbe automatically ejects filter post-sampling, directing it straight into into the disposal bin, eliminating contact with used filters

Prevent Overuse Injuries

• TRAXLink - TRAXLinks automation helps prevent overuse injuries, like wrist strain and tunnel vision, that result from repeatedly uncapping and recapping samples
• StationPump - StationPump utilizes syringe-driven autofiltration, replacing physically demanding manual filtration that can lead to repetitive strain injuries

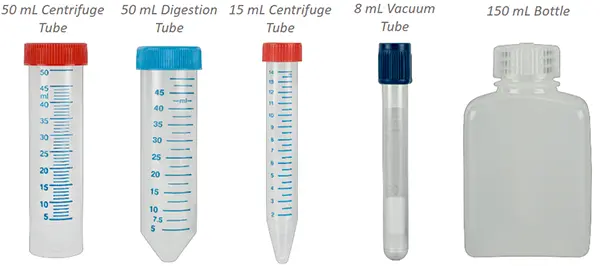

Compatible Vial Flexibility

• Software - Custom racks pre-programmed into LabSymphony software based on customer application
• Racks - Racks are designed to fit a large range of different customer vessel types
• TRAXLink - Various versions of TRAXLink are available to accommodate different vessel types

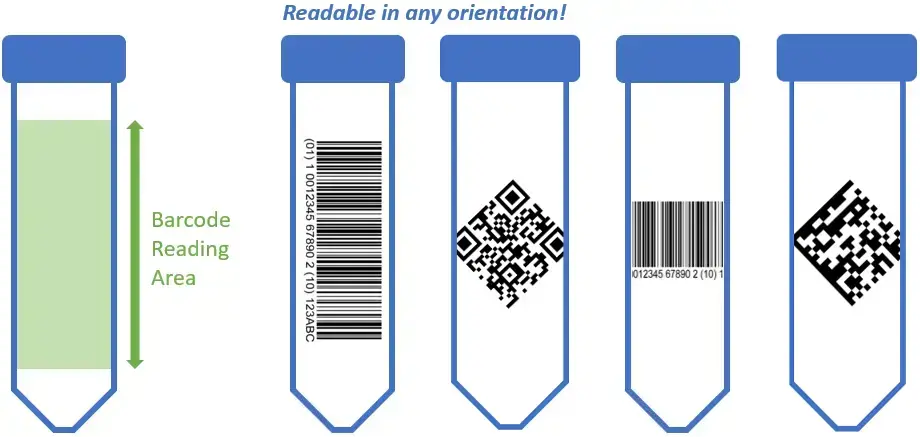

Compatible Barcode Flexibility

• TRAXLink
  • Accommodates a broad range of 1D and 2D barcodes with a wide scanning range, allowing barcodes on vials to be scanned in any orientation
  • TRAXLink can scan barcodes on sample vials, regardless of where they are located around the vial's cylindar

Adjustable Capacity

• TRAXBench - Available in three models, each designed to handle varying levels of capacity based on customer requirements

Customized Preparation Methods

• Applications - Custom sample preparation methods designed specifically for Geochemistry and Semiconductor applications
• Software - TRAXStation can exactly automate existing laboratory sample methods, or design new ones to fulfill customer needs!

Consistent Preparation

• Automation - Automation eliminates variability and human error, enhancing precision and consistency in sample preparation

Eliminate Contamination

• TRAXBench - TRAXBench's metal-free and acid resistant components minimize contamination risks
• TRAXLink
  • Automated uncapping and recapping eliminate false results from sample evaporation by minimizing the time the sample vessel is uncovered
  • TRAXLink is made with acid resistant components that prevent sample contamination from metal components and system corrosion from high acid concentrations
• Acid Resistant Flowpath - TRAXStation's flowpath is constructed with acid-resistant materials
• TRAXShield - Protects samples from airborne contamination using an enclosed, ULPA-filtered environment

Sample Tracking and Identification

• TRAXLink - Automatically tracks samples by linking the original sample's barcode to the prepared sample

Seamless Integration

• Software - LabSymphony effortlessly exports data linking samples to analytical results & offers compatability with ICP/ICPMS software

Audit Trail

• Software - LabSymphony provides full documentation of analytical process, tracking status of sample preparation

Ease of Lab Integration

• TRAXBench - Compact footprint takes up 4x less space than manual sample preparation
• TRAXBench - Equipped with lockable wheels for seamless lab integration and a single power cord for easy setup and operation

Syringe Visibility

• StationPump - Syringes are mounted externally on the dual monitor arm at the back of the TRAXStation

Simple Daily Use

• TRAXDualDisplay - Dual touchscreen monitors are mounted on an adjustable arm, provide clear system access
