Sample Introduction Accessories

Apex – High Sensitivity Desolvating Nebulizer

The highly successful Apex systems maximize ICP & ICPMS sensitivity by increasing sample transport efficiency while also enhancing stability.

Apex Highlights

  • Apex systems maximize sensitivity by up to 10x by nebulizing liquid samples first into a heated cyclonic spray chamber
  • Then multi-stage Peltier-cooled condensing chambers remove much of the solvent vapor, reducing solvent load on the plasma
  • Apex Omega & Apex 2 systems have complete software control of all system variables
  • Apex Omega provides the ultimate performance with two stage desolvation (Peltier-cooled and EPTFE membrane) to significantly reduce oxides with increased solvent removal (0.01% CeO+/Ce+)
  • IntraClean accessory provides automated cleaning and conditioning for Apex Omega and Apex 2
  • Classic Apex systems also available (Apex Q, Apex IR, & Apex HF)

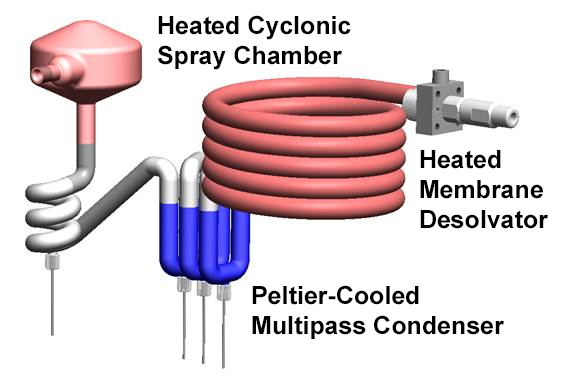

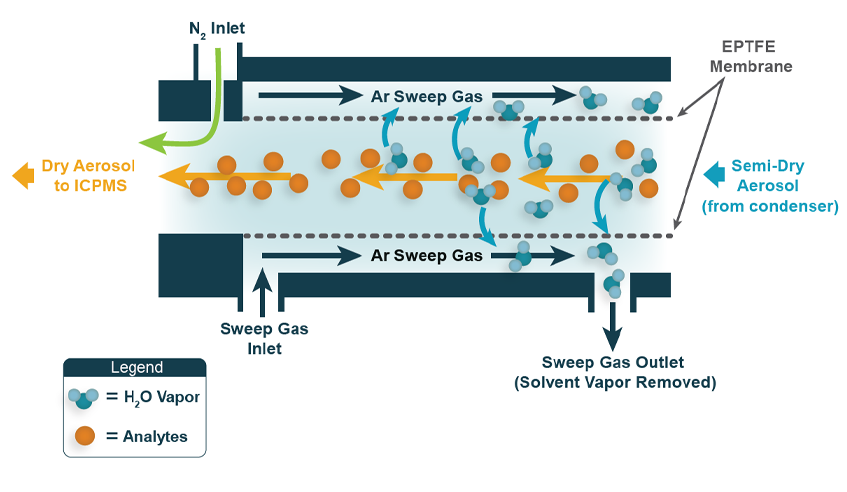

Apex Omega Flowpath

Apex Omega Flow Path

Apex Omega Features

  • Quartz and HF-resistant PFA flow path versions available
  • Maximizes signal intensity by up to 10x
  • Reduces oxides (0.01% CeO+/Ce+) and interferences with two-stage desolvation (Peltier-cooled multi-pass + membrane desolvation)

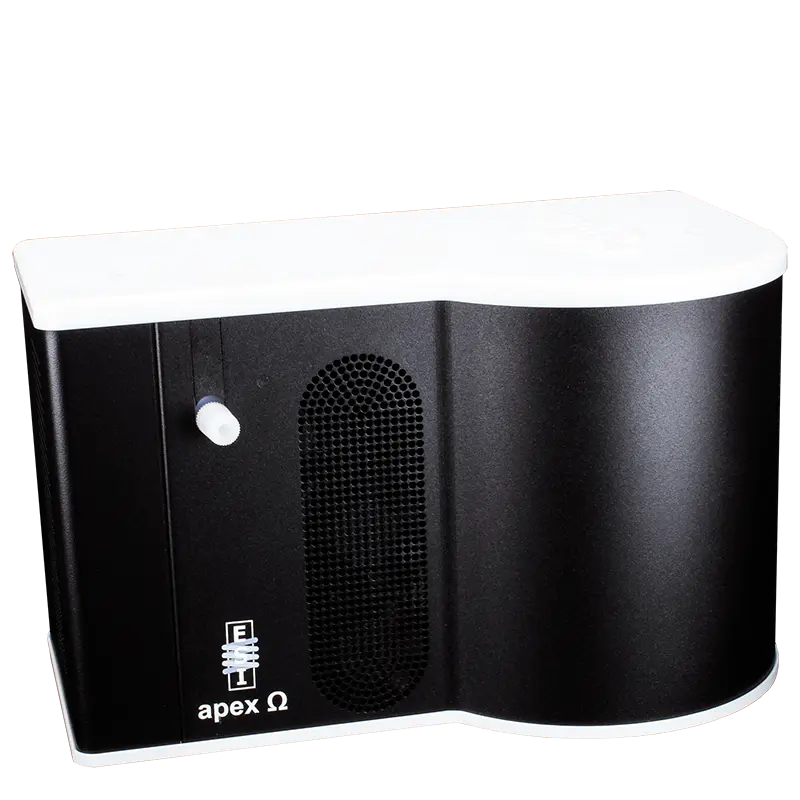

Apex Omega

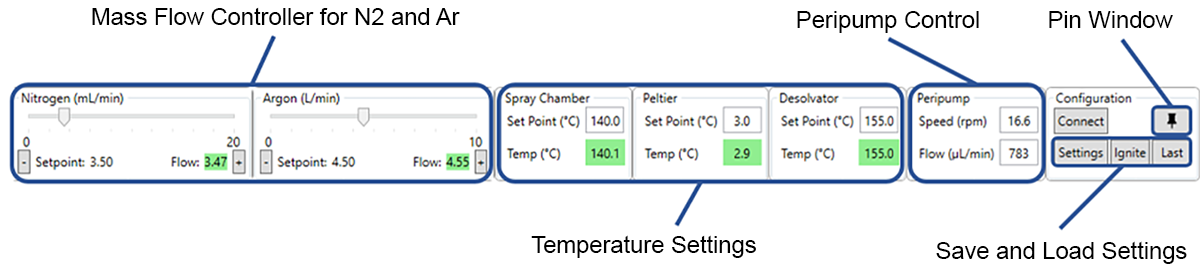

Complete Software Control

  • Spray chamber and Peltier-cooled condenser temperature
  • EPTFE desolvation membrane temperature
  • N2 addition gas mass flow control
  • Ar sweep gas mass flow control
  • Micro peristaltic pump drain

Complete Software Control

Sensitivity Enhancement

  • Enhances signal intensities by enhancing aerosol transport
  • Also improves matrix tolerance

Sensitivity Enhancement

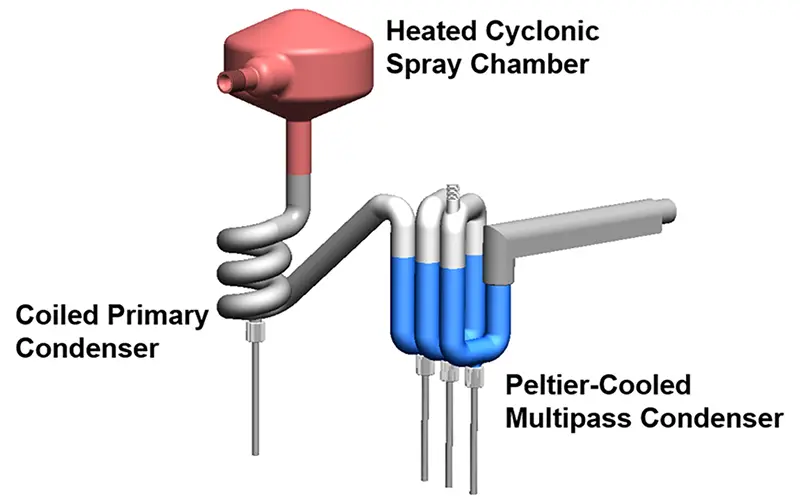

Apex 2 Features

  • Quartz and HF-resistant PFA flow path versions available
  • Maximizes signal intensity by up to 10x
  • Reduces oxides (1% CeO+/Ce+) and interferences with multi-pass Peltier-cooled desolvation

Apex 2

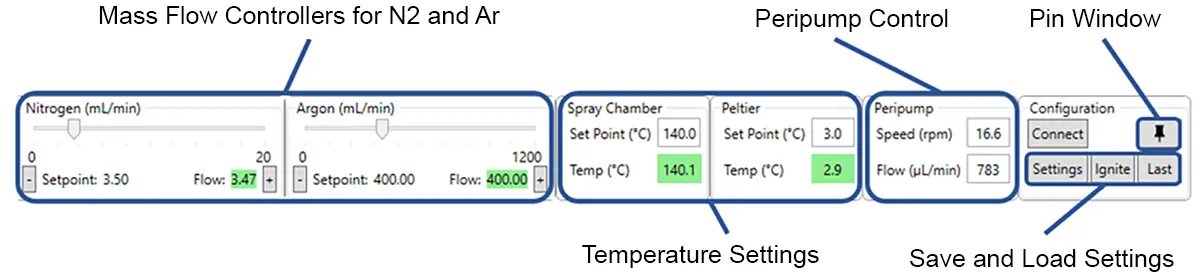

Complete Software Control

  • Spray chamber and Peltier-cooled condenser temperature
  • N2 addition gas mass flow control
  • Ar addition gas mass flow control
  • Micro peristaltic pump drain

Complete Software Control

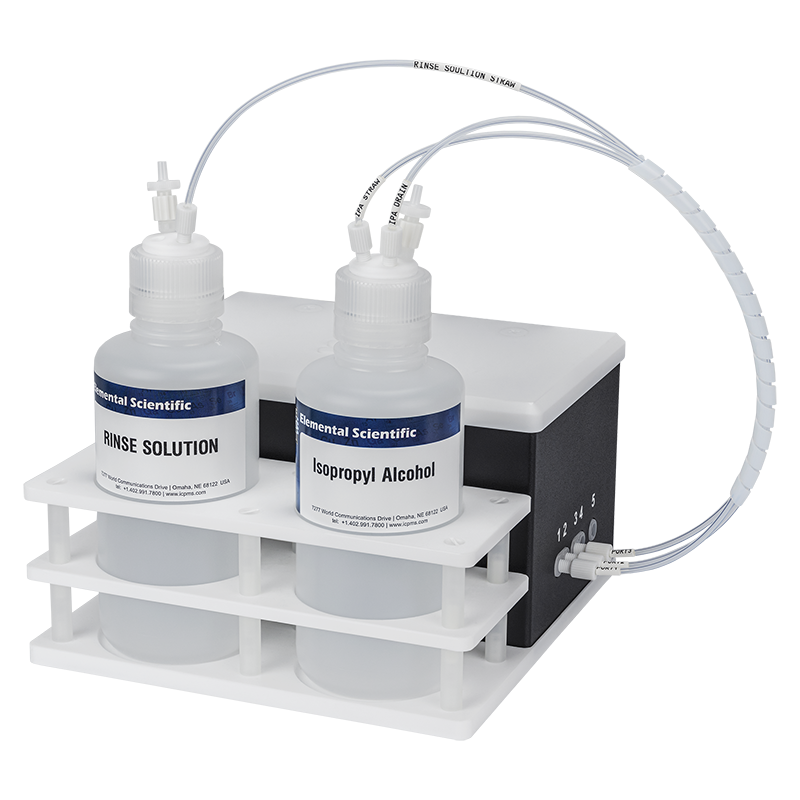

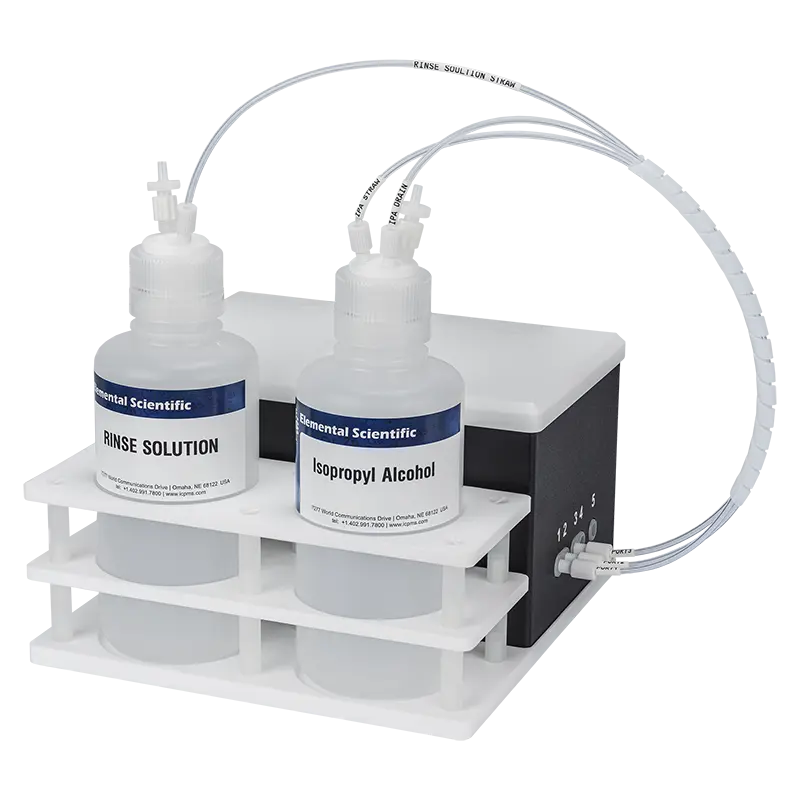

Apex IntraClean Features

  • Cleans all internal wetted surfaces of Apex Omega and Apex 2 by recirculating and acidic cleaning solution
  • Drains cleaning solution and reconditions the Apex Omega membrane with isopropyl alcohol

Apex IntraClean Benefits

  • Easy setup with press-fit fluid connections & push button operation
  • Customizable cleaning cycles with optional software control
  • Eliminates contaminants that cause signal spikes
  • Maintains low, stable backgrounds

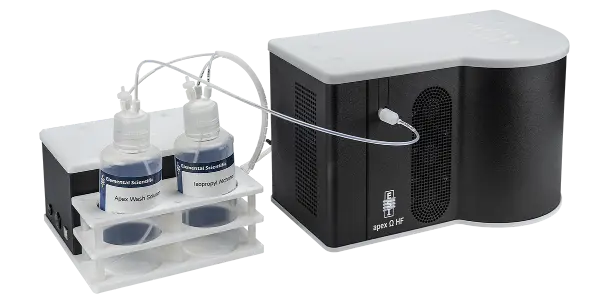

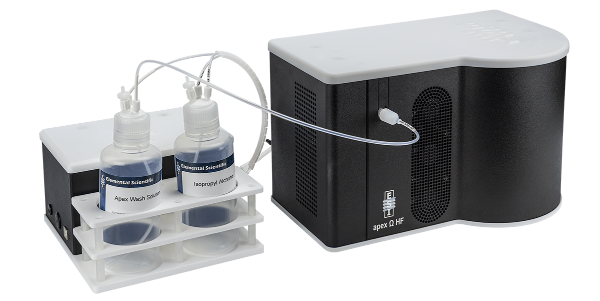

Apex IntraClean with Apex Omega

Apex IntraClean with Apex Omega

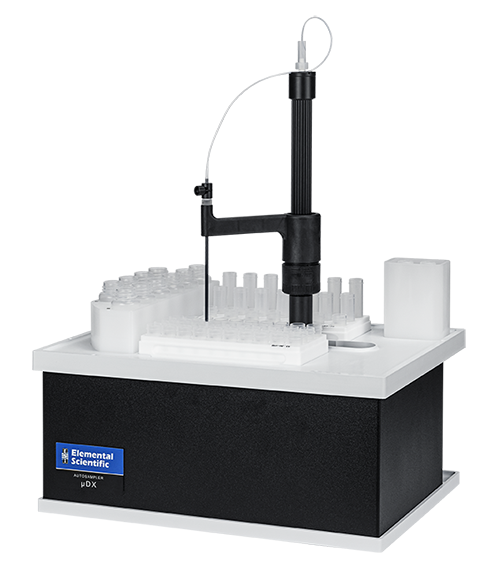

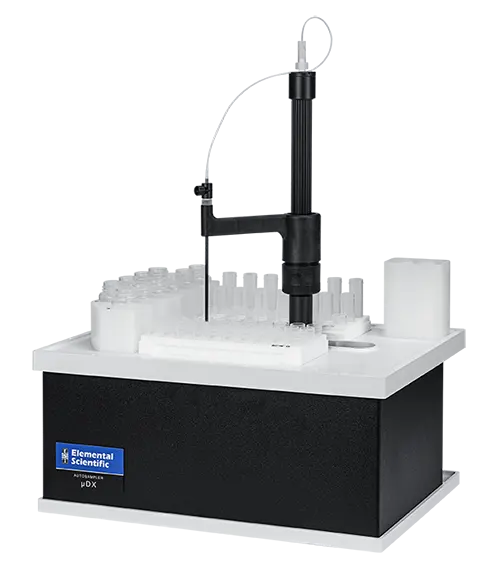

microDX Autosampler

A little autosampler with big capabilities, the microDX autosampler is the ideal automation tool for small-volume/low-throughput sample applications like isotope geochemistry, clinical research and radionuclides. Compatible with a wide range of specialty sample racks and high-purity vials.

  • microDX autosampler designed for micro vials up to 125 mL bottles
  • Accurate and precise sampling with robust dual rail design
  • Dual flowing rinse stations
  • AutoAlign Arm
Learn More
microDX Autosampler

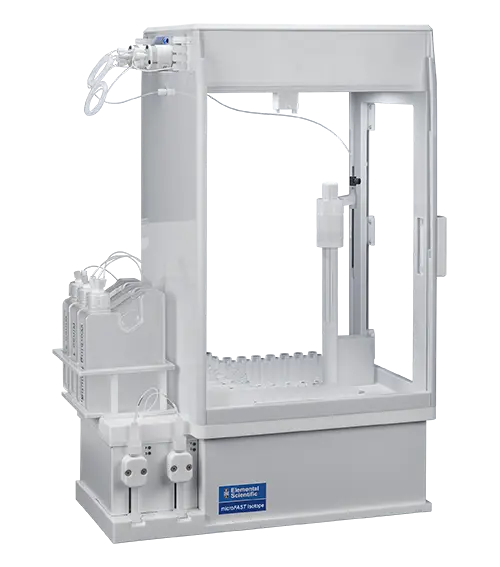

microFAST Isotope

Precision measurements call for precise sampling. The microFAST Isotope system offers all of the features of the microDX autosampler with the additional functionality of syringe-controlled sample loading and sample injection. Precise control of sample volume and flow rate means stable signal profiles can be measured from as little as 5 μL of sample or flow rates as low as 5 μL/min.

  • microDX autosampler with dedicated clean enclosure
  • Equipped with single or dual loop FAST capabilities & syringe sample loading / injection
  • Combine with Apex 2 or Apex Omega for enhanced sensitivity and low blanks
Learn More
microFAST Isotope

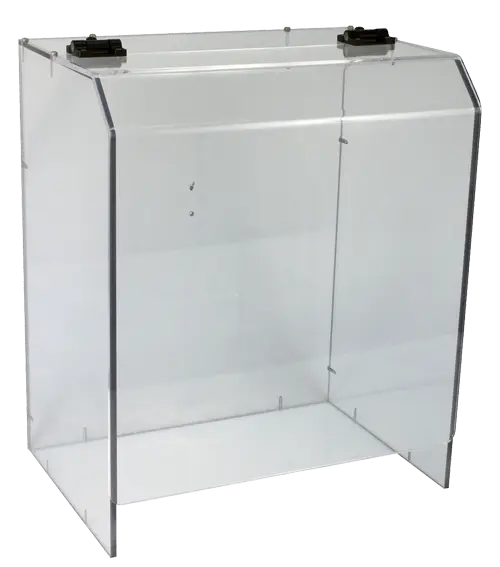

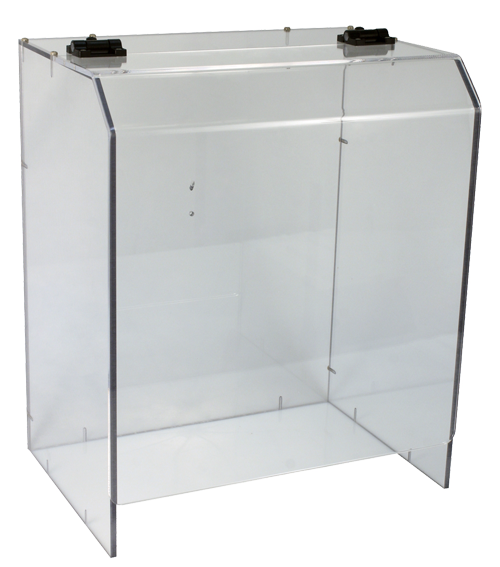

Autosampler Enclosures

When your samples and your laboratory environment shouldn’t mix. All ESI DX autosamplers offer available enclosures to prevent samples from becoming contaminated by airborne dust and particulates. These also feature a vented duct connection port if required for fume/vapor exhaust.

  • Protects samples from airborne contamination
  • Exhaust acidic fumes
  • Clear acrylic construction for easy sample viewing
  • Large hinged door for easy access
Learn More
Autosampler Enclosures

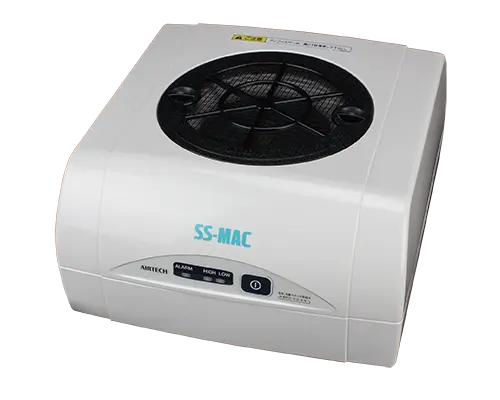

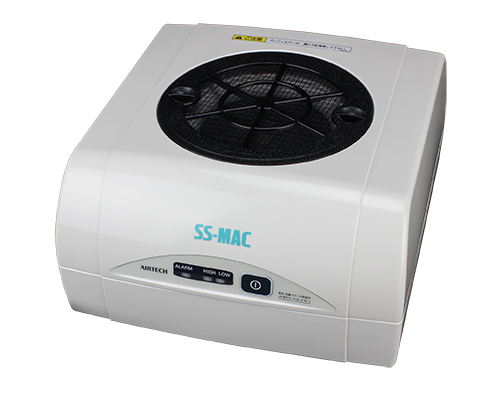

ULPA Air Filter

For maximum protection against sample contamination right up to the moment of analysis, an optional ULPA high purity air filter can be added to the enclosure of a microDX, 2DX or 4DX autosampler. The positive pressure air flow ensures sample integrity during analysis.

  • ULPA (Ultra-Low Particle Arrester) filter creates clean positive pressure environment
  • Removes 99.999% of 0.12 micron particles
  • Fits on enclosures for microDX, 2DX, and 4DX autosamplers
Learn More
ULPA Air Filter

Apex Q

  • O-ring free quartz flow path & N2 addition control
  • Maximizes signal intensity by up to 3-10x
  • Dual preset temperature settings for spray chamber (100°C or 140°C) and multi-pass condenser (2°C or -5°C) temperatures

Apex Q

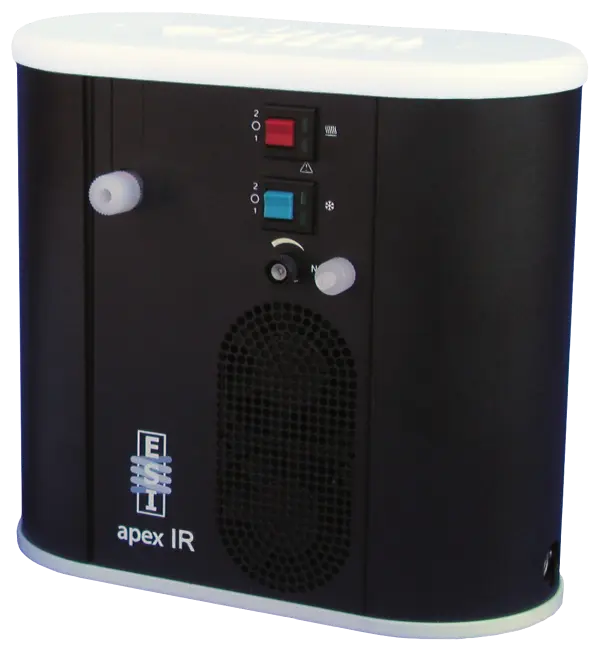

Apex IR

  • Same configuration as Apex Q, with additional mixing chamber that homogenizes and further stabilizes sample aerosol stream
  • Recommended for isotope ratio measurements


Apex IR

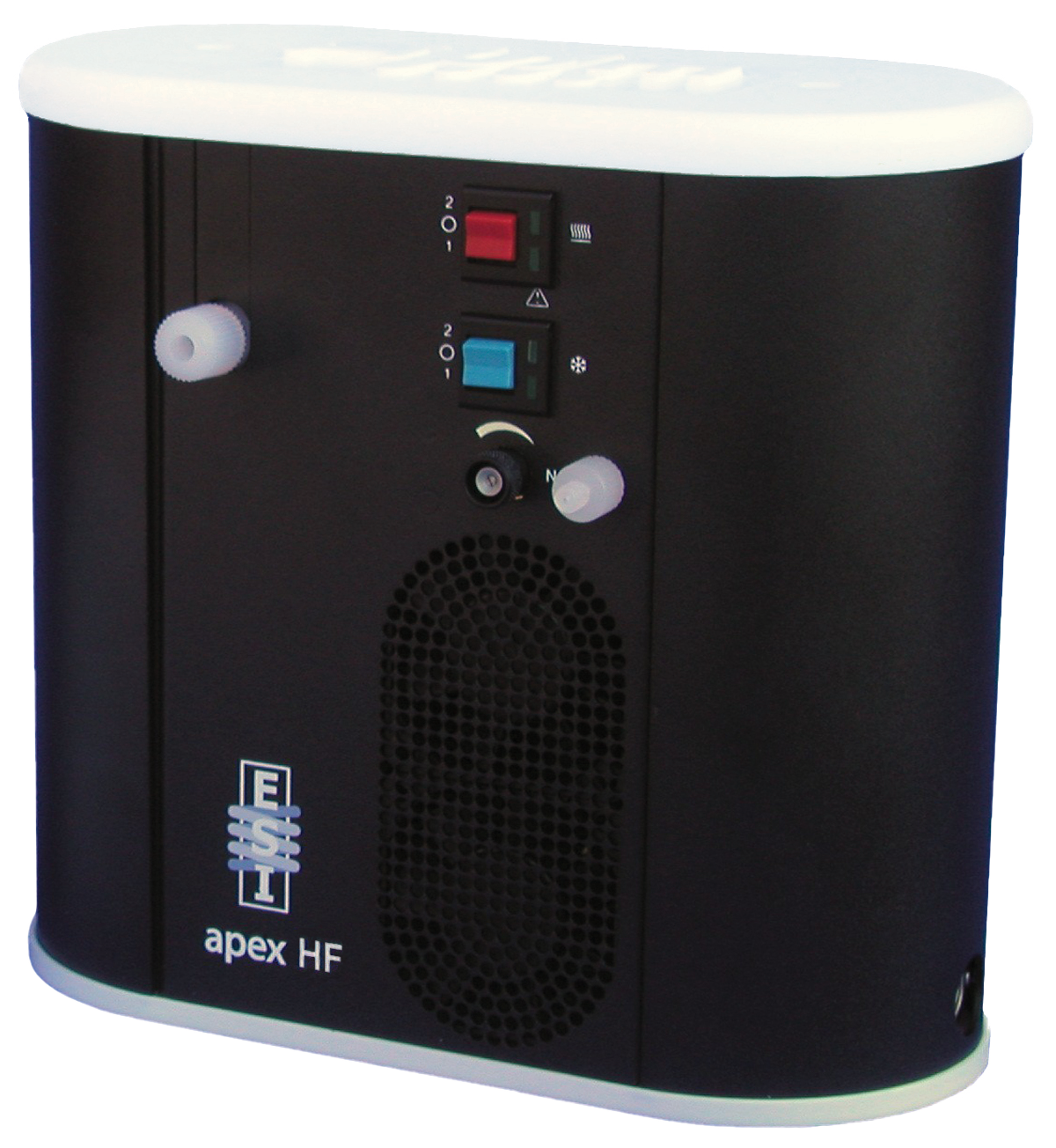

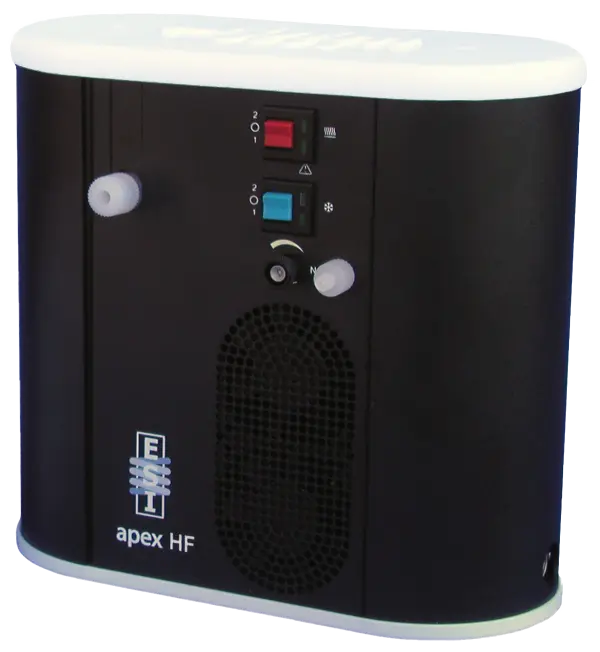

Apex HF

  • Classic Apex design equipped with HF-resistant PFA flow path
  • Recommended for geochemistry and semiconductor applications with HF


Apex HF

Product Brochure & Flyers

Apex Omega Brochure Apex Omega Flyer Apex 2 Flyer Apex IntraClean
Apex Q Flyer Apex IR Flyer Apex HF Flyer

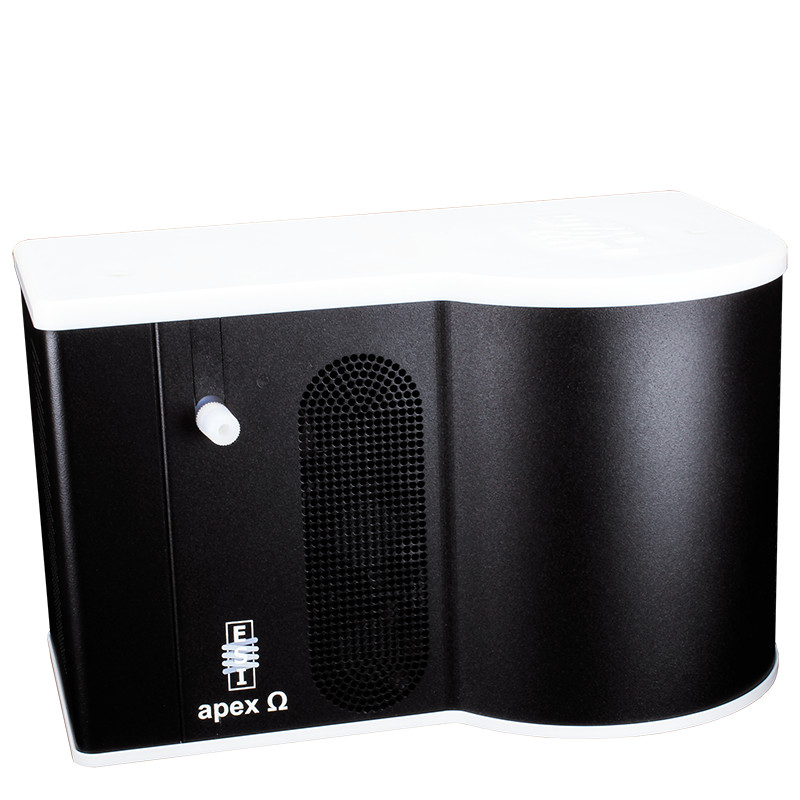

Apex Omega

Apex Omega

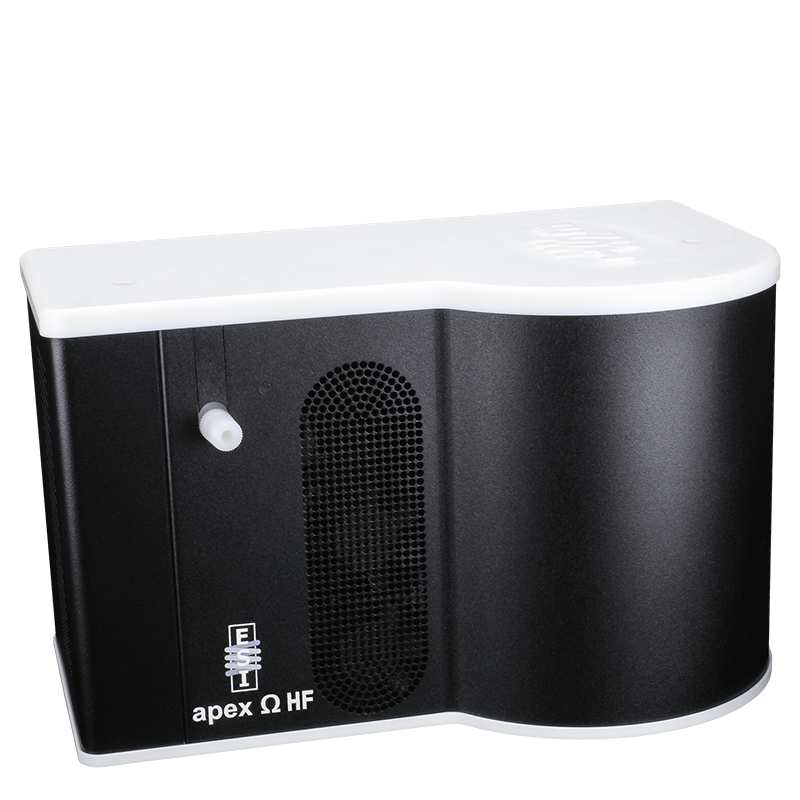

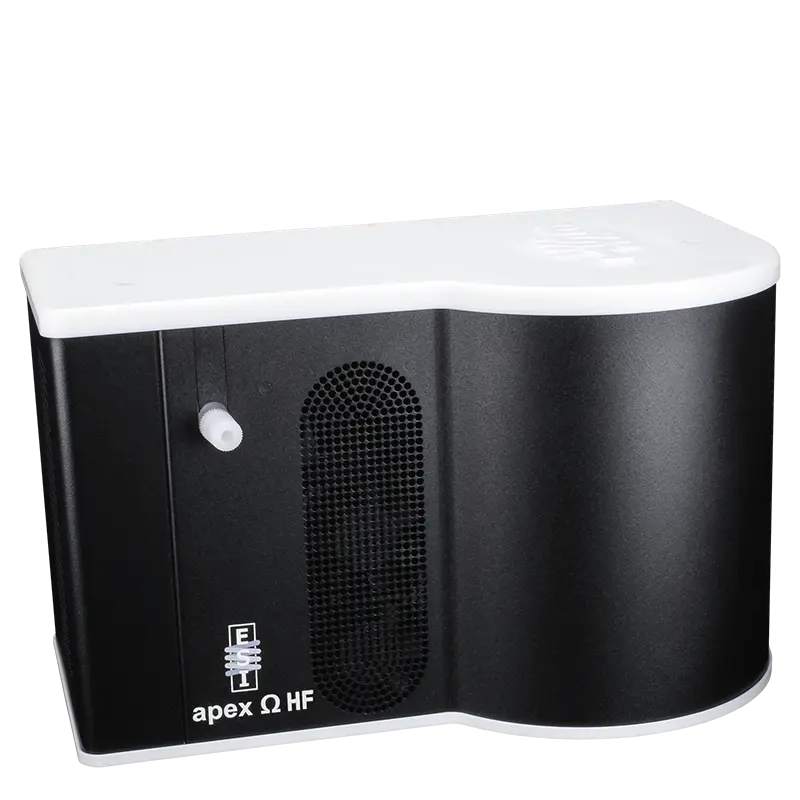

Apex Omega HF

Apex Omega HF

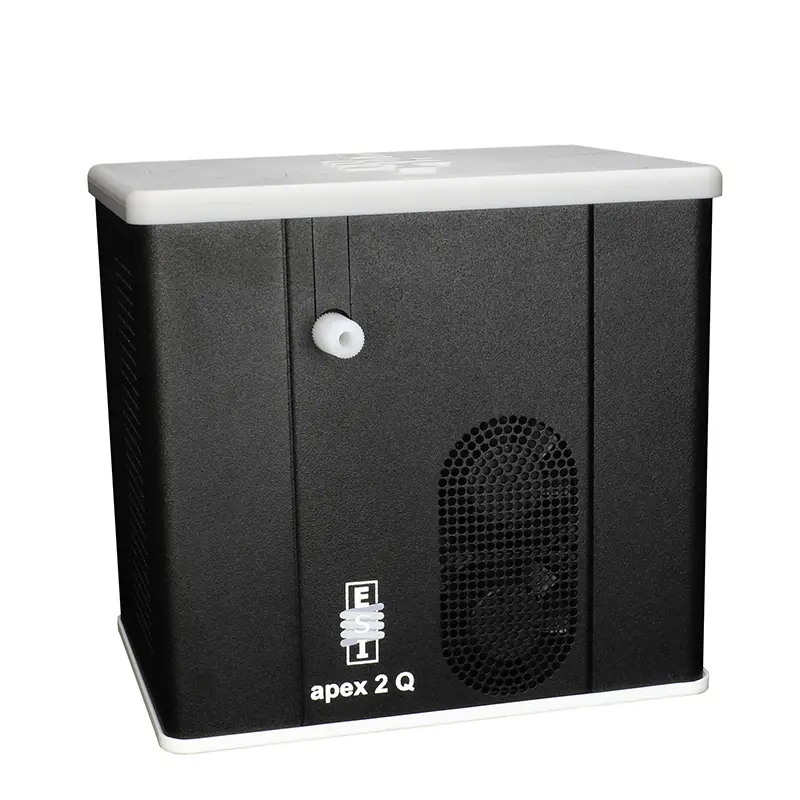

Apex 2 Q

Apex 2 Q

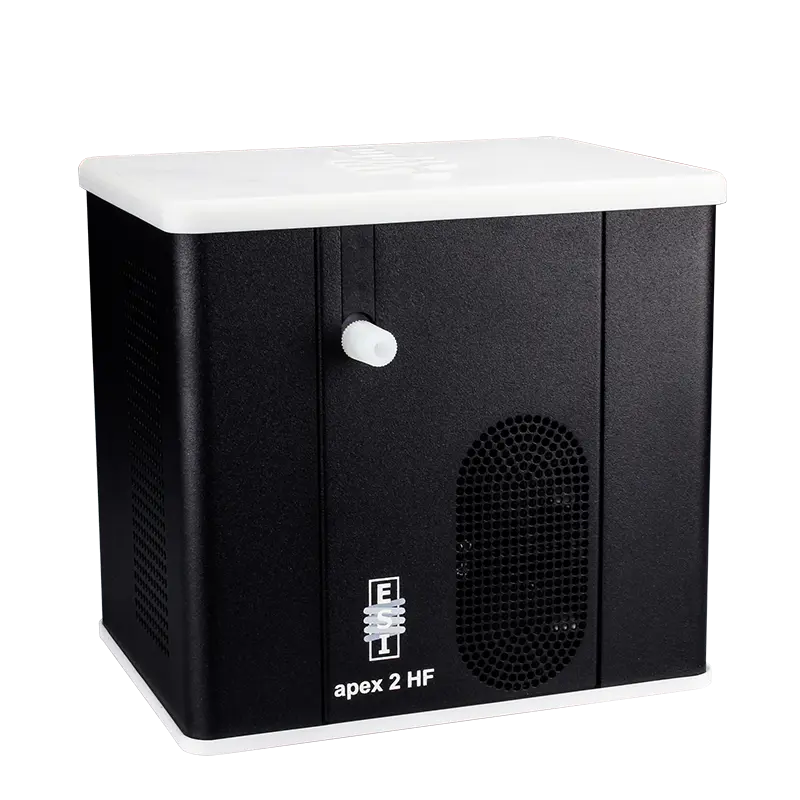

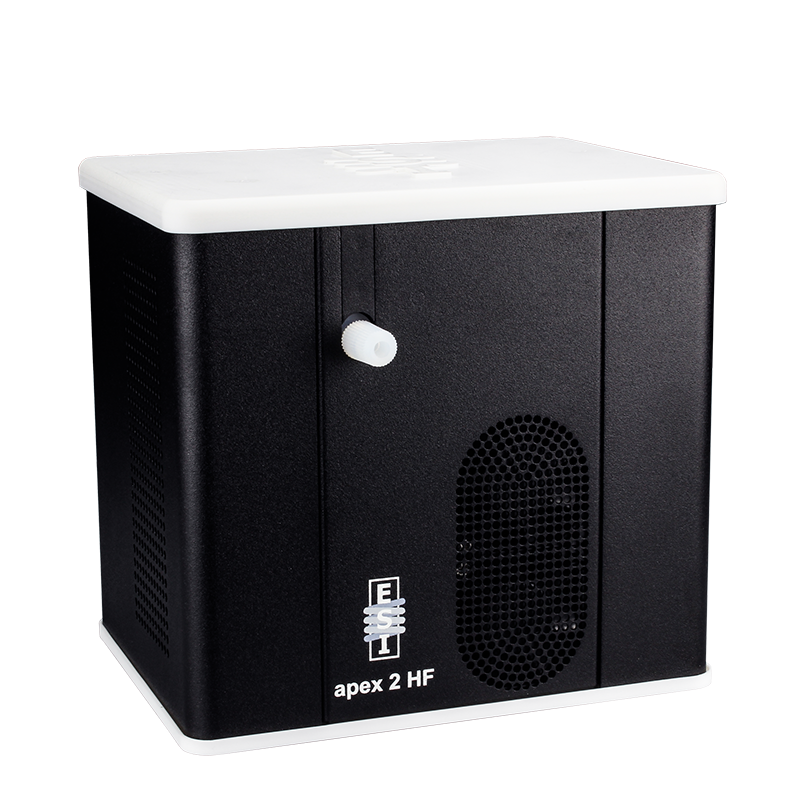

Apex 2 HF

Apex 2 HF

IntraClean

IntraClean

Contact us for information on Apex Desolvating Nebulizers!
