prepFAST X Model
The prepFAST X inline dilution system fully automates laboratory dilutions and eliminates many manual operator actions during an ICP/ICPMS analysis. Recommended model for labs requiring the highest sample throughput.
Fully Automated Sample Preparation with Inline Dilution
The base prepFAST X model fully automates laboratory dilutions with SampleSense vacuum sample loading, providing single valve autodilutions ranging 1-400x with the autocorrecting DXCi autosampler.

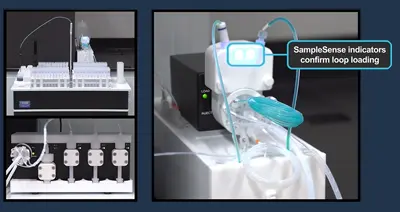

Samples are quickly loaded into a loop while the SampleSense optical sensors automatically monitor the sample arrival. The sample is next mixed with syringe-driven diluent and internal standard into a second loop located on the same valve. The diluted and mixed sample is then introduced into the ICP/ICPMS while the first loop is syringe rinsed and readied for the next sample. This sampling and dilution process takes place in seconds with the prepFAST X system.
- Automated SampleSense FAST vacuum sample loading
- Autocalibration & Autodilution
- Syringe-driven internal standard addition
- Inline dilution range 1-400x
- High-speed washout
- Autocorrecting Autosampler
prepFAST X Features Diagram
- Frees up laboratory staff for other tasks
- Eliminates manual preparation of calibration standards
- Automates all required sample dilutions
- Reduces required training and experience for operators
- Excellent return on investment
- Reduces laboratory reagent waste
- Fully automated sample loading with SampleSense FAST
- No required method timings
- Actively monitors and reports sample loading issues
- Automatically adjusts to different sample viscosities
- DXCi autosampler with autocorrecting arm position when probe is accidentally obstructed
SampleSense Advantages
Innovative Sample Loading
SampleSense accounts for viscosity and automatically adjusts timing. One method for multiple sample types.
Time Savings
Operator time for sample introduction method development is eliminated. Just run samples.
Sample Savings
The sample is injected at precisely the right time. Every time. Even for small samples.
Error Notification
Incomplete sample loading or bubbles in the sample are detected and logged.
prepFAST X in Action
See how the fully automated prepFAST X system works in this example where a stock standard is diluted inline.
prepFAST X Autodilution Video
Sample Capacities
- prepFAST X models range from 2 rack capacity up to the ultra-high capacity 14 rack model
- DXCi autosampler mounted in mobile station, which supports syringe pump module and reagent bottles
* Special version 14DXCi for microplates

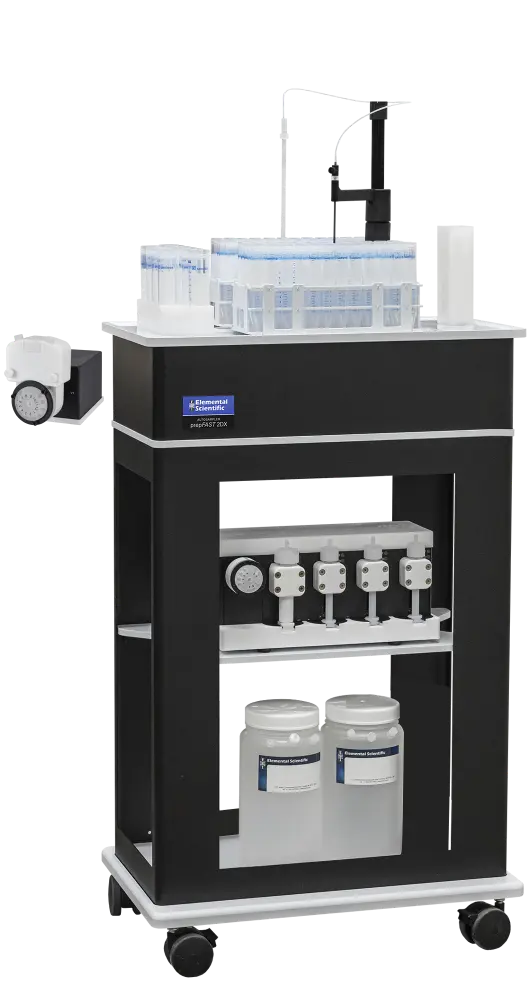

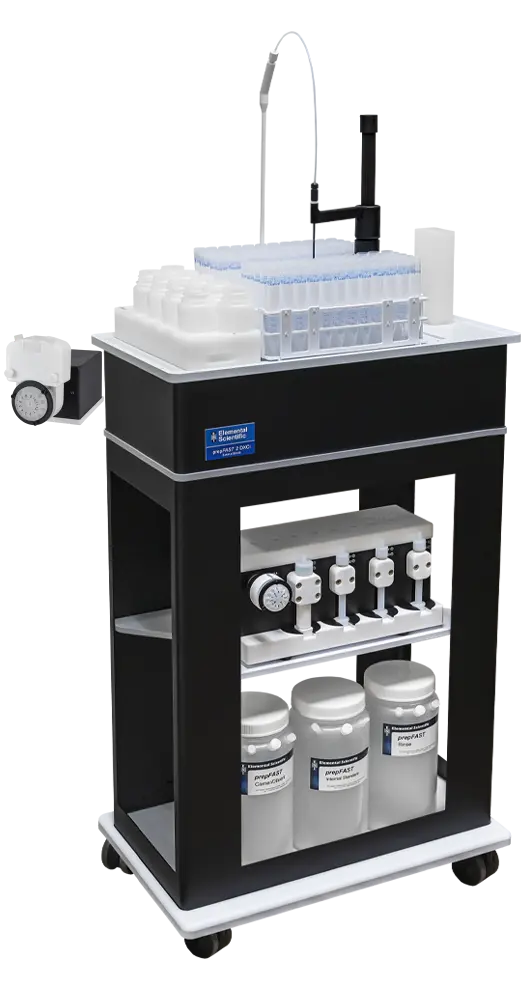

2DXCi prepFAST X

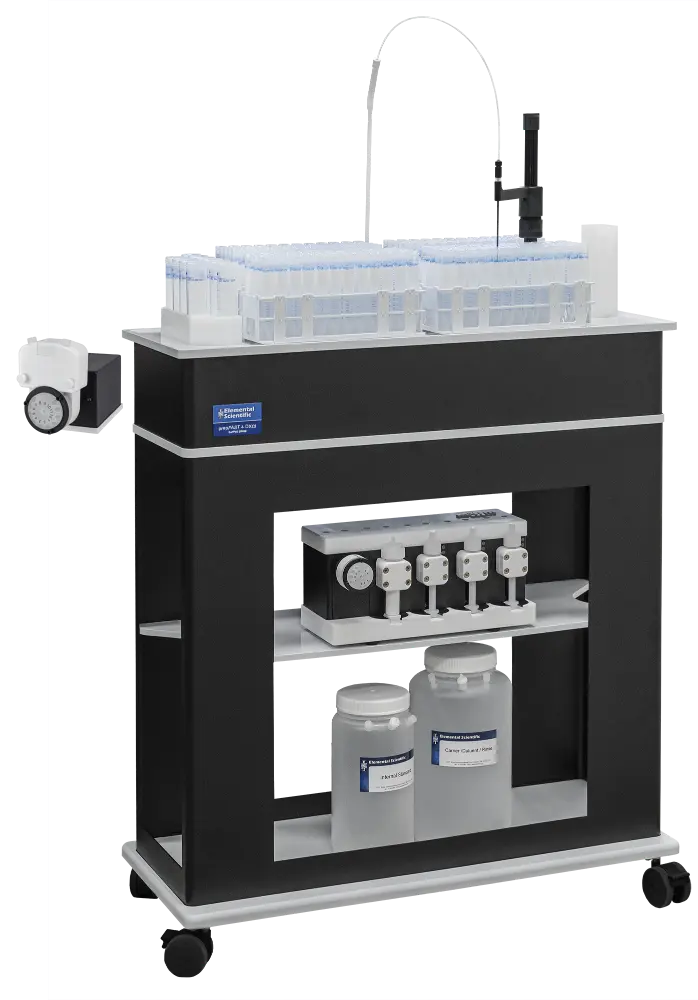

4DXCi prepFAST X

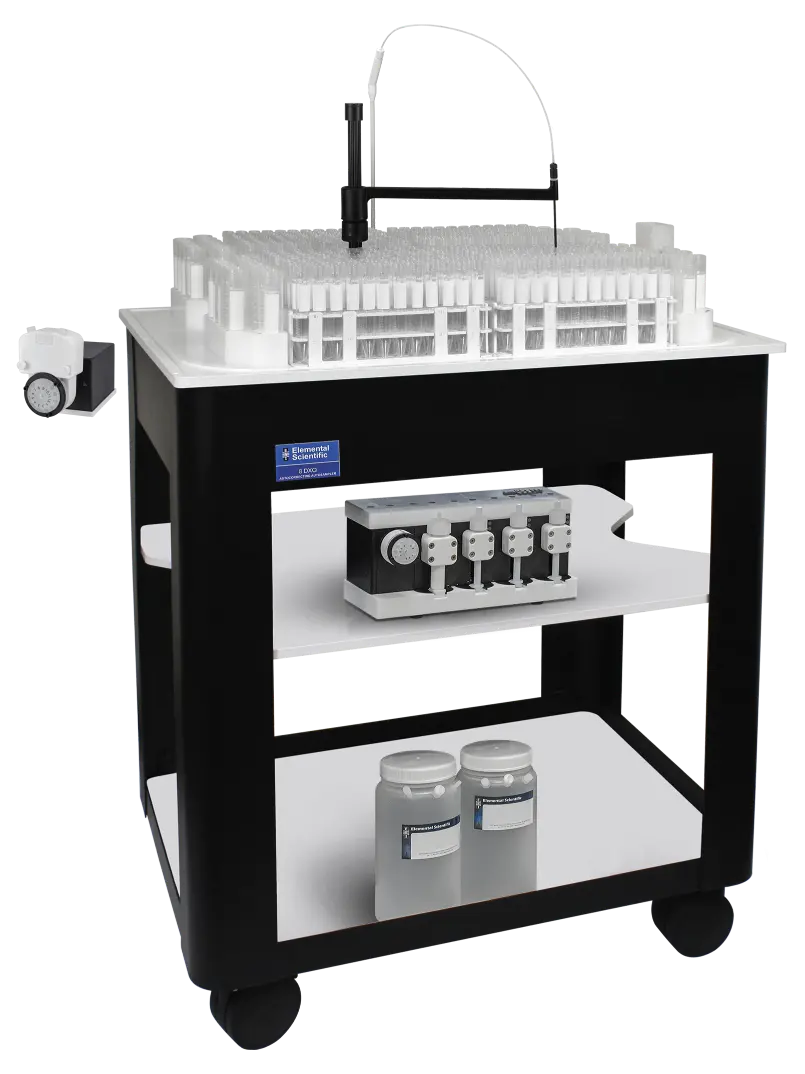

8DXCi prepFAST X

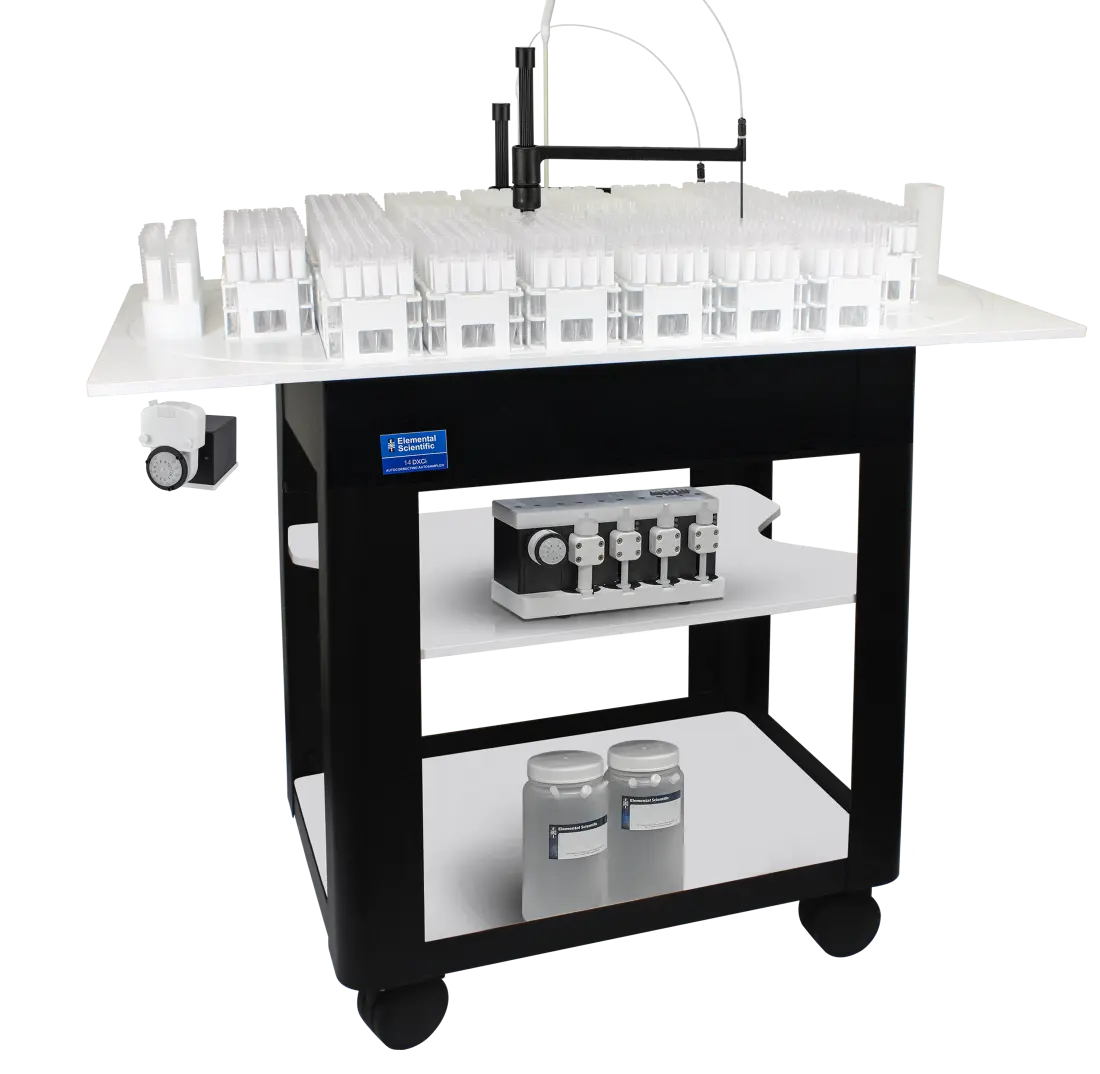

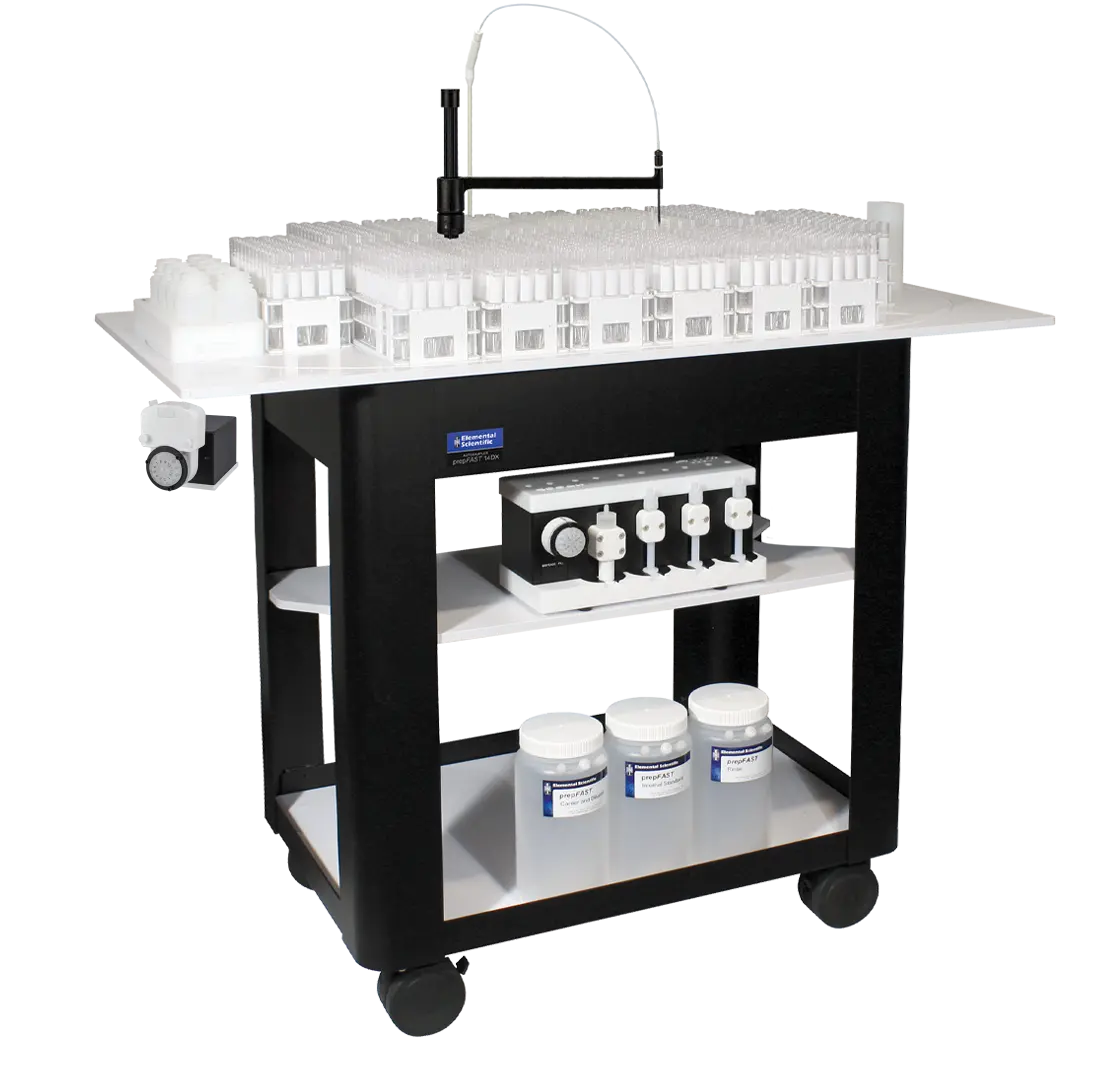

14DXCi prepFAST X
prepFAST X Performance

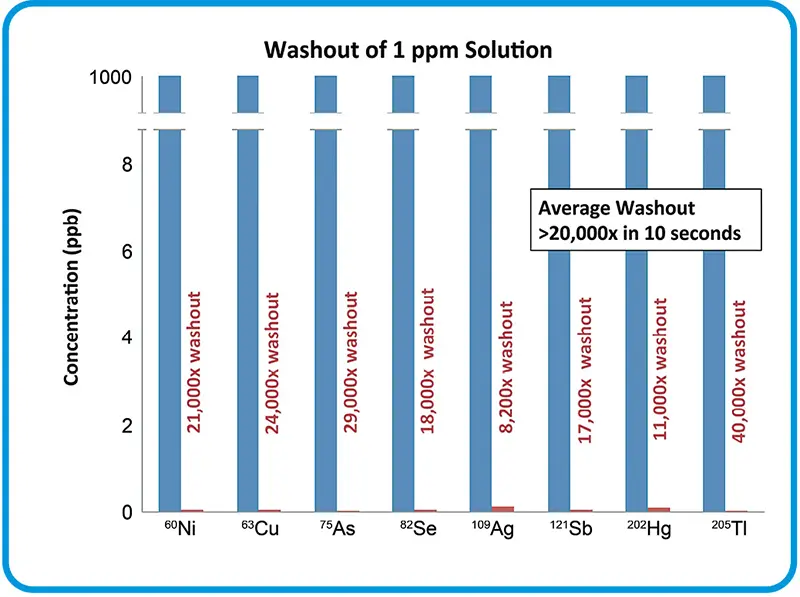

FAST washout even for memory-prone elements

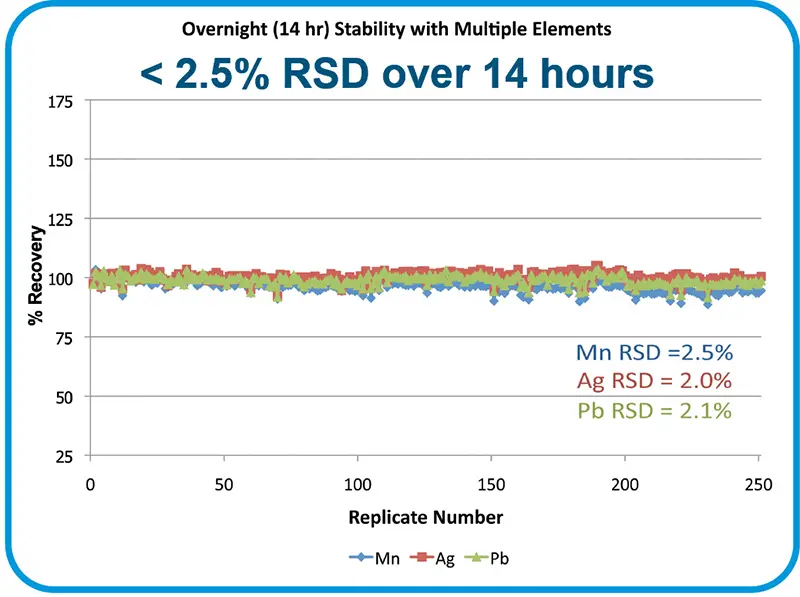

Long-term stability
AutoBench - Metal-Free ICP/ICPMS Laboratory Bench
Made for ICP/ICPMS chemists by ICP/ICPMS chemists, the Metal-Free AutoBench is designed to streamline lab workflows, reduce contamination with a long system lifetime all in a convenient, compact footprint. It features a Waste Management Cabinet with a leak sensor and spill containment for safe waste handling, alongside a Vacuum Pump Storage Cabinet that reduces noise and vibrations for easier maintenance and a quieter lab.
Highlights:
- Compact Footprint - Combines a 4 or 8 rack autosampler, dual monitors, ICP/ICPMS instrument, waste bottle, vacuum pump, storage cabinets, and workspace in a 63" area, maximizing lab space
- Metal-Free Components - Reduces contamination risk and maintenance costs, extending system longevity
- Flexible Configurations - Fits all major ICP/ICPMS instruments and optimizes bench space
- Dual Monitor Display - Enables simultaneous data monitoring and analysis with adjustable monitor arms for easy access
| Part # | Description |
|---|---|
| X4AB | Dual-Monitor AutoBench4, PP construction including metal-free hinges, stand-up keyboard/mouse tray, waste management cabinet, reagent storage cabinet, flush mounting cut-out for 4DXCi drop-in autosampler, ICPMS vacuum pump cabinet with temperature sensor and active venting, spare parts storage drawer. |
| X8AB | Dual-Monitor AutoBench8, PP construction including metal-free hinges, stand-up keyboard/mouse tray, waste management cabinet, reagent storage cabinet, flush mounting cut-out for 8DXCi drop-in autosampler, ICPMS vacuum pump cabinet with temperature sensor and active venting, spare parts storage drawer. |
AutoBench8
