Autodilution & Autocalibration Systems

prepFAST MAX Model

The prepFAST MAX inline dual-stage dilution system fully automates extended range laboratory dilutions while adding syringe loading for samples of small volume or high viscosity. Recommended model for labs requiring extended range sample dilutions for ICP/ICPMS.

Fully Automated Sample Preparation with Inline Dilution

The prepFAST MAX model fully automates laboratory dilutions with both SampleSense vacuum loading and precision syringe loading of samples.

The syringe sample loading is recommended when sample volumes are limited (0.1-3 mL) or when samples such as organic solvents, viscous samplers, or biological samples are being analyzed. The prepFAST MAX provides dual-stage autodilutions ranging 1-40,000x with the autocorrecting DXCi autosampler.

prepFAST MXX
  • Automated SampleSense FAST vacuum sample loading + precision syringe sample loading
  • Autocalibration
  • Extended Range Autodilution
  • Syringe-driven internal standard addition
  • High-speed washout
  • Inline dilution range 1-40,000x
  • Autocorrecting Autosampler
  • High-pressure syringe-driven probe rinsing

prepFAST MAX Features Diagram

Features Diagram
  • Precision syringe-driven sample loading critical for small samples, organic solvents, and high viscosity samples
  • Excellent return on investment
  • Frees up laboratory staff for other tasks
    • Eliminates manual preparation of calibration standards
    • Automates extended range sample dilutions ranging from 1-40,000x
    • Inline dual-range dilution reduces impact of contamination
    • Reduces required training and experience for operators
  • Reduces laboratory reagent waste
  • Fully automated sample loading with SampleSense FAST for high throughput applications
    • No required method timings
    • Actively monitors and reports sample loading issues
    • Automatically adjusts to different sample viscosities
    • DXCi autosampler with autocorrecting arm position when probe is accidentally obstructed

SampleSense Advantages

Innovative Sample Loading

Innovative Sample Loading

SampleSense accounts for viscosity and automatically adjusts timing. One method for multiple sample types.

SampleSense prepFAST Valve Enclosure

Time Savings

Operator time for sample introduction method development is eliminated. Just run samples.

Sample Savings

Sample Savings

The sample is injected at precisely the right time. Every time. Even for small samples.

Error Notification

Error Notification

Incomplete sample loading or bubbles in the sample are detected and logged.

Sample Capacities

  • prepFAST MAX models range from 2 rack capacity up to the ultra-high capacity 14 rack model
  • DXCi autosampler mounted in mobile station, which supports syringe pump module and reagent bottles
prepFAST Capacity Table

* Special version 14DXCi for microplates

4DXCi prepFAST MAX

4DXCi prepFAST MAX

prepFAST MAX Performance

Information to come soon.

AutoBench - Metal-Free ICP/ICPMS Laboratory Bench

Made for ICP/ICPMS chemists by ICP/ICPMS chemists, the Metal-Free AutoBench is designed to streamline lab workflows, reduce contamination with a long system lifetime all in a convenient, compact footprint. It features a Waste Management Cabinet with a leak sensor and spill containment for safe waste handling, alongside a Vacuum Pump Storage Cabinet that reduces noise and vibrations for easier maintenance and a quieter lab.

Highlights:

  • Compact Footprint - Combines a 4 or 8 rack autosampler, dual monitors, ICP/ICPMS instrument, waste bottle, vacuum pump, storage cabinets, and workspace in a 63" area, maximizing lab space
  • Metal-Free Components - Reduces contamination risk and maintenance costs, extending system longevity
  • Flexible Configurations - Fits all major ICP/ICPMS instruments and optimizes bench space
  • Dual Monitor Display - Enables simultaneous data monitoring and analysis with adjustable monitor arms for easy access

Part # Description
X4AB Dual-Monitor AutoBench4, PP construction including metal-free hinges, stand-up keyboard/mouse tray, waste management cabinet, reagent storage cabinet, flush mounting cut-out for 4DXCi drop-in autosampler, ICPMS vacuum pump cabinet with temperature sensor and active venting, spare parts storage drawer.
X8AB Dual-Monitor AutoBench8, PP construction including metal-free hinges, stand-up keyboard/mouse tray, waste management cabinet, reagent storage cabinet, flush mounting cut-out for 8DXCi drop-in autosampler, ICPMS vacuum pump cabinet with temperature sensor and active venting, spare parts storage drawer.

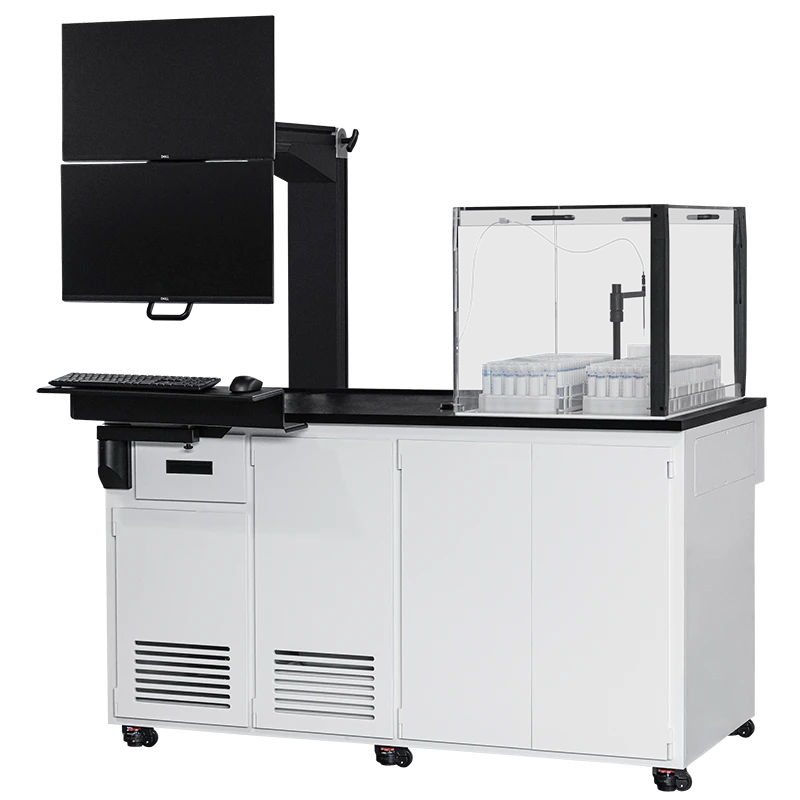

AutoBench8
AutoBench8

Learn More

Product Brochure & Diagram

prepFAST X/MX/MAX Brochure Features Diagram

Specifications

Information to come soon.

Every ICP/ICPMS performs better with prepFAST MAX

Contact us for information on our prepFAST X Autocalibration System!
