Autosamplers for ICP/ICPMS

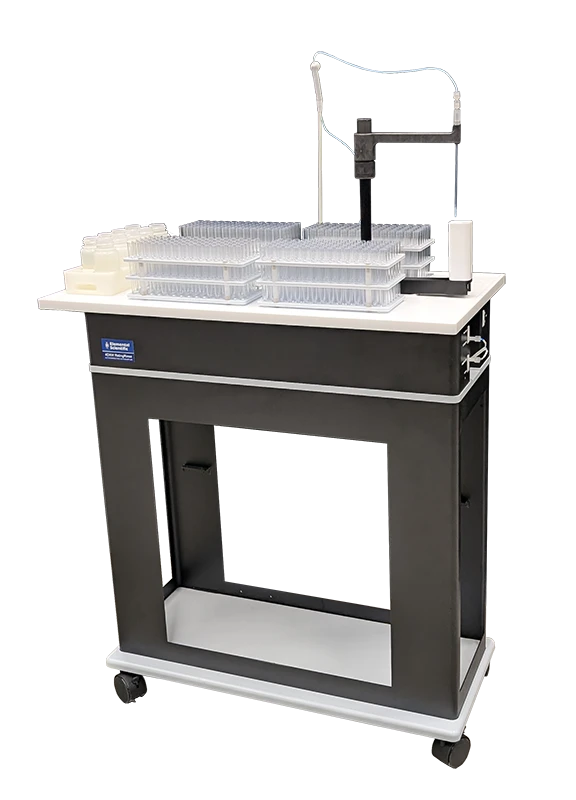

4DXW Autosamplers with RidingRinse Station

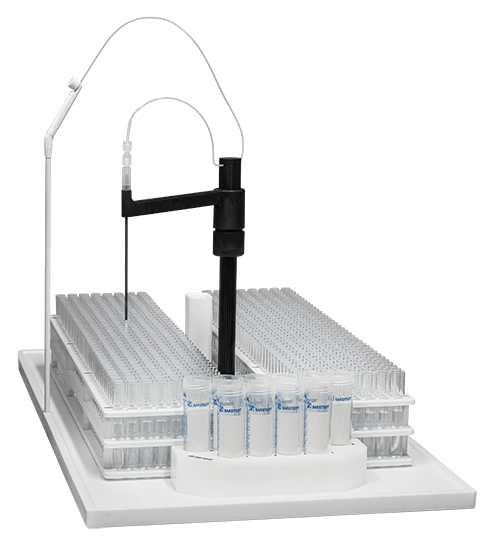

4DXW with RidingRinse

4DXW with RidingRinse

More Capacity. Compact Size. Rapid Throughput

4DXW autosamplers maximize sample capacity in less bench space than a conventional 4-rack autosampler while expediting sample-to-sample time with a mobile rinse station. This increases throughput, extends unattended runs, and optimizes the space in your lab.

More Information

Boost Your Lab’s Performance with 4DXW:

  • Maximize Capacity: Supports up to 560 samples – more than a 6-rack autosampler

  • Save Bench Space: Achieve a 55% capacity increase in just 406 mm (16”) of linear bench space

  • Improve Workflow Efficiency: Eliminate autosampler translation delays with RidingRinse

  • Fully Compatible: Integrates seamlessly with ESI automation and all ICP & ICPMS instruments

4DXW Demo in Action

4DXW Demo in Action

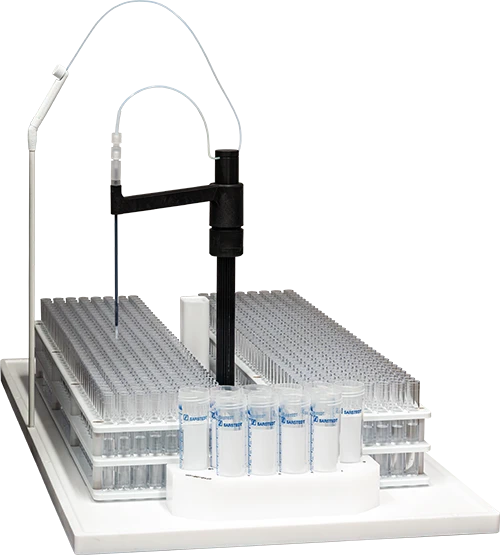

4DXW with RidingRinse

4DXW with RidingRinse

NEW RidingRinse Mobile Rinse Station

Key Features

  • Expedited Sample-to-Sample Time: RidingRinse moves with the autosampler carriage

  • Instant Rinse Access: Probe arm can reach the rinse station immediately

  • Improve Workflow Efficiency: Eliminates conventional carriage translation delay for a smoother, faster workflow

See It In Action

Features Diagram for 4DXW Autosampler

Features Diagram for 4DXW Autosamplers

Capacity Improvements

4DXW Autosamplers raise the bar for autosampler sample capacity, supporting up to 560 (8 mL) samples. Compatible with ESI extended racks, labs can get more sample capacity in a smaller space than a conventional 4-rack autosampler.

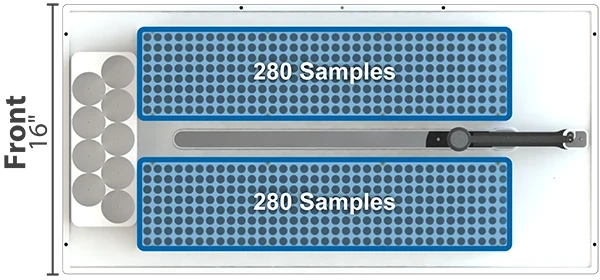

560 (8 mL) Sample Capacity

4DXW 560 Sample Capacity Autosampler

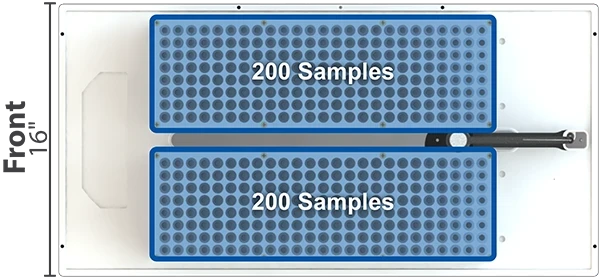

400 (15 mL) Sample Capacity

4DXW 400 Sample Capacity Autosampler

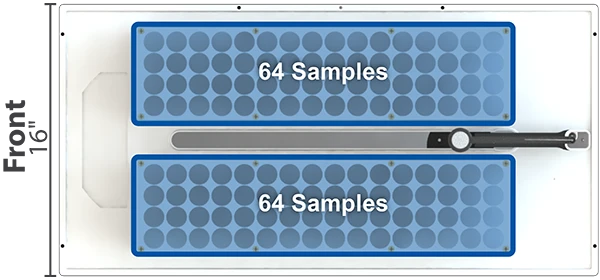

128 (50 mL) Sample Capacity

4DXW 128 Sample Capacity Autosampler

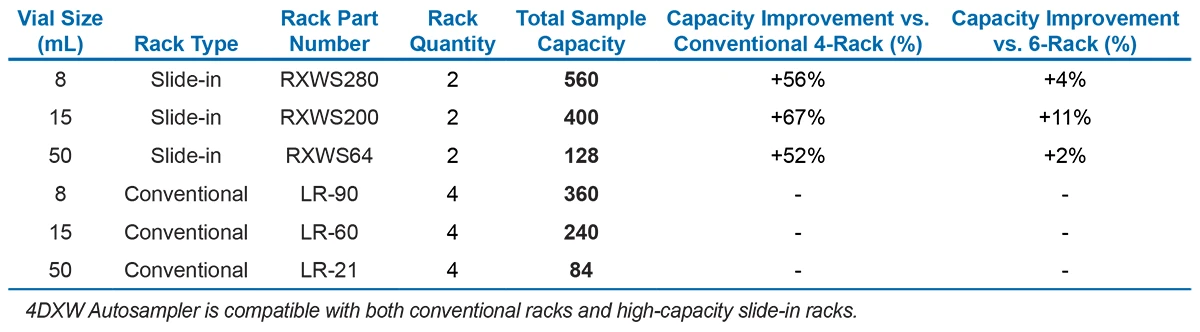

Vial Size (mL) 4DXW Rack PN 4DXW Sample Capacity Capacity Improvement over 4-Rack Capacity Improvement over 6-Rack
8 RXWS280 560 +56% +4%
15 RXWS200 400 +67% +11%
50 RXWS64 128 +52% +2%

FASTFluidic FilterProbe

FASTFluidic FilterProbe ICP valve injection with backflush rinsing comes with a 4DXW Autosampler in its standard configuration.

Capabilities:

  • High Throughput Valve Injection with Rinsing
    • 3 second ICP integration time with syringe-driven backflush rinsing
    • <10 seconds per sample
  • Low Maintenance
    • FilterProbe prevents clogs and eliminates daily valve maintenance
  • Low Carryover
    • High-quartz syringe drives 1.5 mL rinse in 0.7 seconds
    • 100x faster rinse out than a peripump delivers

FASTFluidic FilterProbe

prepFAST 3

The prepFAST 3 is an intelligent automation system capable of high throughput sample injection, reactive overrange autodilution, and autocalibration for ICP & ICPMS.

Benefits:

  • Automated Dilution at ICP or ICPMS
    • 2x to >1000x inline autodilution range
    • Reactively dilute overrange samples
  • FilterProbe with backflushing
    • Inline CTFE filter blocks particles from entering flowpath with automatic backflushing after each sample
    • Prevents blockages leading to higher instrument uptime
  • Improved Stability
    • Eliminate signal suppression even after analysis of high matrix samples
    • Preserve calibration accuracy over extended runs

prepFAST 3

Mobile Stations

The mobile station secures and positions the autosampler, eliminating the need for an autosampler table (not included with purchase of the autosampler).

Benefits:

  • Convenient - Autosampler, pumps, rinse and waste bottles contained in a single unit
  • Compact - Footprint only slightly larger than autosampler itself, saving valuable lab space and maintaining accessibility to sample racks
  • Attractive - Station eliminates need for separate table
  • Mobile - Locking wheels; Eliminates unnecessary external connections to rinse solution and waste reservoirs; Middle and lower shelves for storage and bottles

Mobile Station - 2DX

Enclosures

ICP and ICPMS sample integrity is maintained with the ESI autosampler enclosures. The enclosures can be configured either as a dust cover or ULPA-filtered minienvironment.

Benefits:

  • Protects samples from airborne contamination
  • Exhaust acid fumes to protect the laboratory environment
  • Clear acrylic construction for easy sample viewing
  • Covers only the sample area—the electronics are kept outside the enclosure
  • Three vertical sliding doors provide easy access to sample racks at any time

Autosampler Enclosure

ULPA Air Filter

The ULPAclean 10 (Ultra-Low Particle Arrester) filter creates a clean, positive pressure environment for samples and standards and prevents airborne contamination. It removes 99.9995% of 0.1 µm or larger particles. The mounting plate is compatible with all DX autosampler enclosures.

ULPAclean 10 Filter

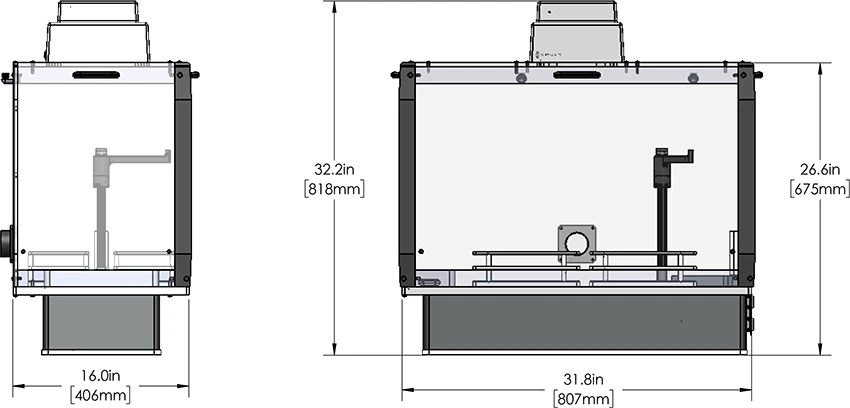

System Dimensions & Specifications

The 4DXW Autosampler optimizes lab bench space by delivering high sample capacity in an exceptionally compact footprint – allowing labs to run more samples than ever without sacrificing valuable workspace.

Model  4DXW Autosampler
Maximum Sample Capacity  8 mL – 560 Samples
15 mL – 400 Samples
50 mL – 128 Samples
Vial Compatibility  Flexible to accommodate a wide range of vessel types and sizes
Height  679 mm (27”) with Clean3V Enclosure
818 mm (32”) with ULPAclean 10
Width  807 mm (32”)
Depth  406 mm (16”)
Instrument Compatibility  Compatible with all ICP & ICPMS instruments

Dimensions for 4DXW Autosamplers
