Online Monitoring for ppt-level Metals, Nanoparticles and Organic Contaminants
Real-time monitoring of semiconductor process chemicals and ultrapure water at fab-wide scale.

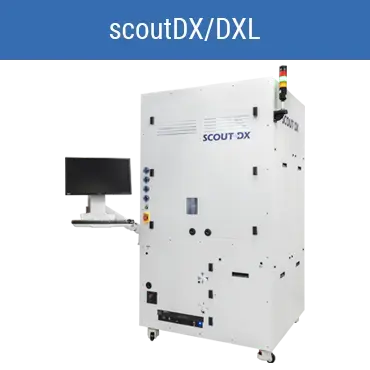

Online Metals Monitoring: Automated online 24/7 tools for ultrapure semiconductor chemical analysis. Scout detects ultra-low levels of metallic and particulate contaminants in all chemicals.
VPD-ICPMS: High-throughput, completely automated production tool for online monitoring of metal contamination on semiconductor wafers with ultra-low detection limits. The Radian’s single process station design, ultrafast scanner, and fully integrated ICPMS make it the fastest, most automated VPD-ICPMS in the world.
Organic Contaminant Monitoring: Fully automated systems for real-time monitoring of organic impurities in semiconductor chemicals. These systems automatically detect and identifies contaminants, quantifies and charts each contaminant, and sends a SECS-GEM alert for near real-time monitoring.

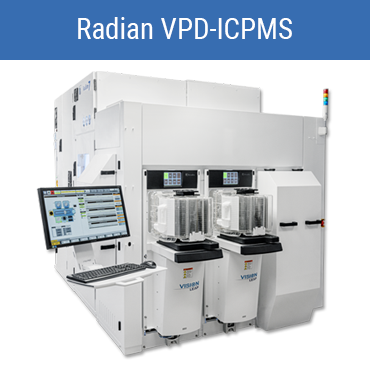

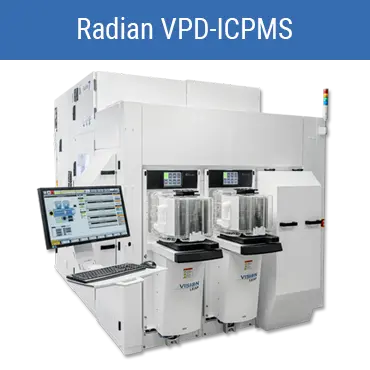

Most Automated Vapor Phase Decomposition System
- Radian 3 VPD-ICPMS – Compact high productivity with all-in-one process module
- Radian 7 VPD-ICPMS – Highest productivity with dual all-in-one process modules
- Innovative radial fast-scanning nozzle – scans wafer surface in 60 seconds or less

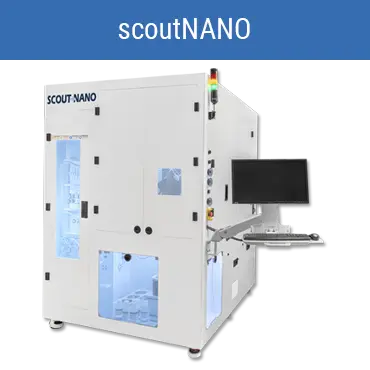

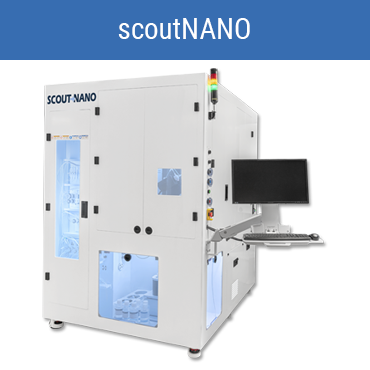

Online Nanoparticle & Total Metals Monitoring
- Multi-element determination of nanoparticle size and quantity
- Autocalibration of nanoparticle and total metals
- Analyzes all semiconductor grade chemicals
- Up to 40 sampling points
- Up to 300 m in any direction

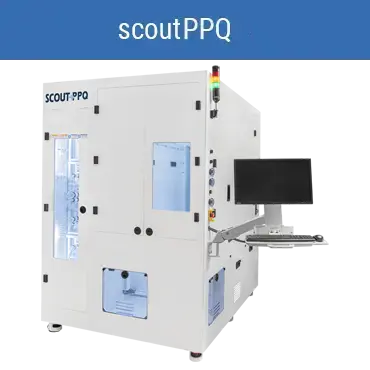

Fully Automated PPQ Total Metals
- sub-PPQ detections limits for UPW, IPA, TMAH, 30% H2O2, and others
- Multi-element determination of total metals
- Removes difficult matricies
- Reduces impact of ICPMS interference

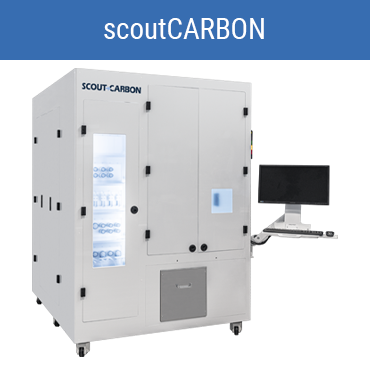

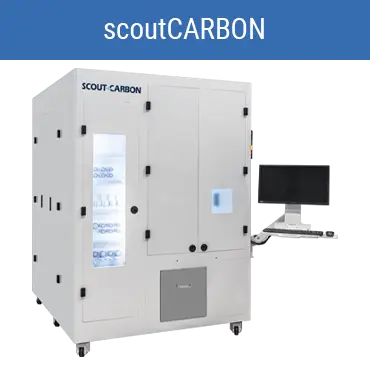

Monitoring of Organic Contaminants
- Up to 40 Sample Points
- Rapidly transfers discrete samples up to 300 m to a Central Unit
- Detects organic contaminations & impurities in facility chemicals, environmental effluents, chemical baths and other liquid samples
- Simultaneously monitors the full range of semiconductor chemicals

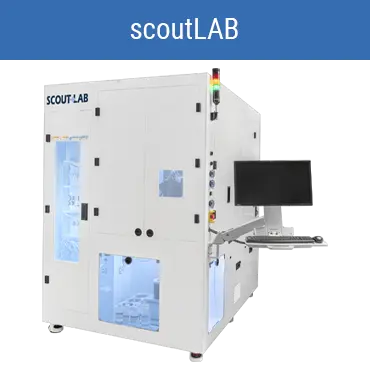

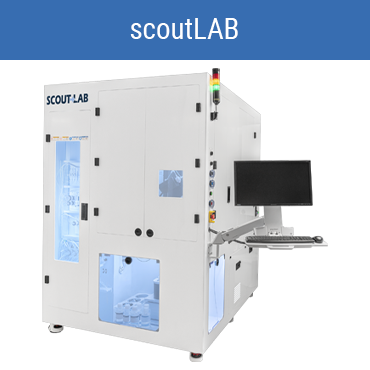

Fully Automated Metals Analysis Lab
- Laboratory based online system for 24/7 metal monitoring
- Direct connection of chemical supply to the scoutLAB
- High capacity system for up to 20 direct chemical samplers
- Onboard autosampler option for laboratory analysis

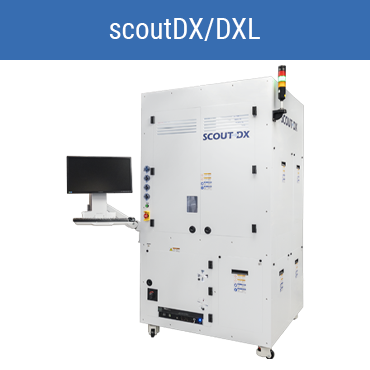

Real-time Ultra-trace Metal Monitoring
- Immediate detection and notification of metal contamination
- Improved product yield
- Reduced human contact with hazardous chemical samples, improving safety & reducing errors
- Customizable software to enable flexible, user-defined parameters for contamination control at every sampling station

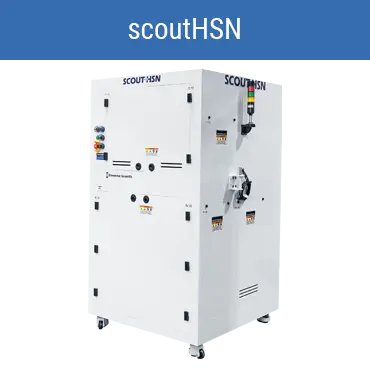

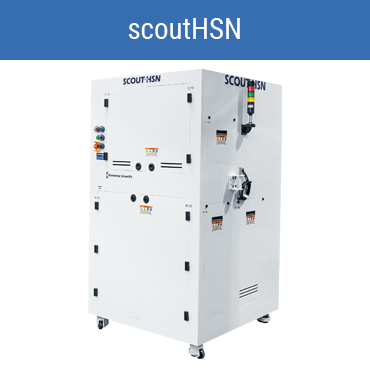

Monitoring of Silicon Nitride Etching
- Fully automated unattended measurement of ppm level free silicon and simultaneous monitoring of bound silicon
- Capable of monitoring free and bound silicon in hot phosphoric baths
- Autocalibration and verification of silicon in hot phosphoric baths

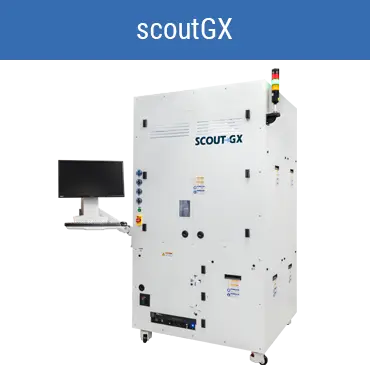

Fully Automated Online Process Gas Monitoring
- Automated process gas monitoring
- Immediate detection and notification of contamination
- Simultaneously determine nanoparticle and total metals data
- Up to 16 process gas connections
- Monitors CO2, N2, O2, Ar, He, Ne and others

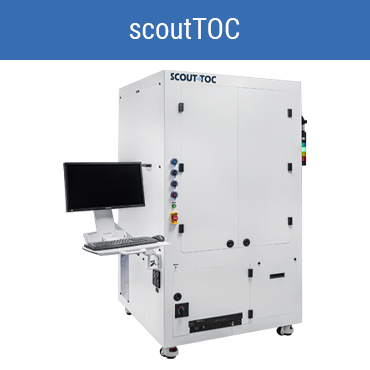

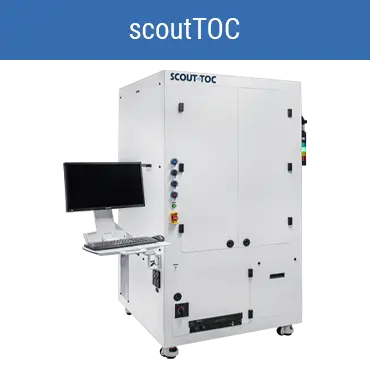

Total Organic Carbon Online Monitoring
- Quantitative analysis of total organic carbon in UPW and waste water
- TOC range <0.2 to 1000 ppm C
- A single central analyzer monitors:
- Up to 40 sampling points
- Up to 300 m in any direction
