PC³ – Temperature Controlled Spray Chambers

The PC³ compact Peltier heated and cooled sample inlet system stabilizes the spray chamber for enhanced stability and improved sample washout for ICP and ICPMS.

PC^3X & PCH Highlights

• Peltier heated and cooled inlet system provides thermal stabilization for improved short and long-term precision
• Heated or cooled spray chamber walls reduce solvent loading on the plasma
• O-ring free glass, quartz, or PFA cyclonic spray chambers provide faster analyte washout

PC^3X PC³-LT PCH Resources

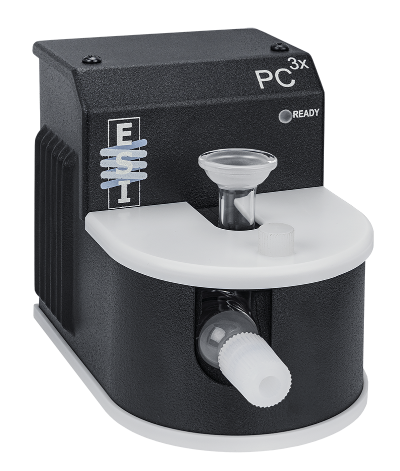

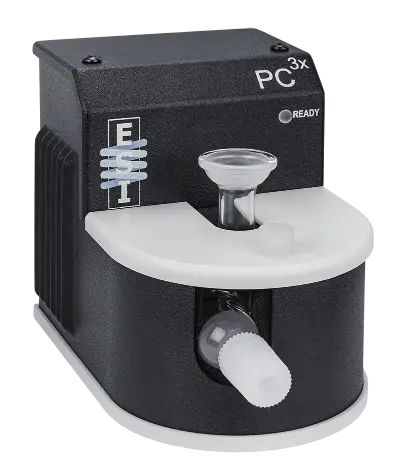

PC^3X Highlights

• Compact Peltier heated and cooled inlet system for ESI cyclonic spray chambers
• Thermal stabilization of spray chamber improves long-term stability

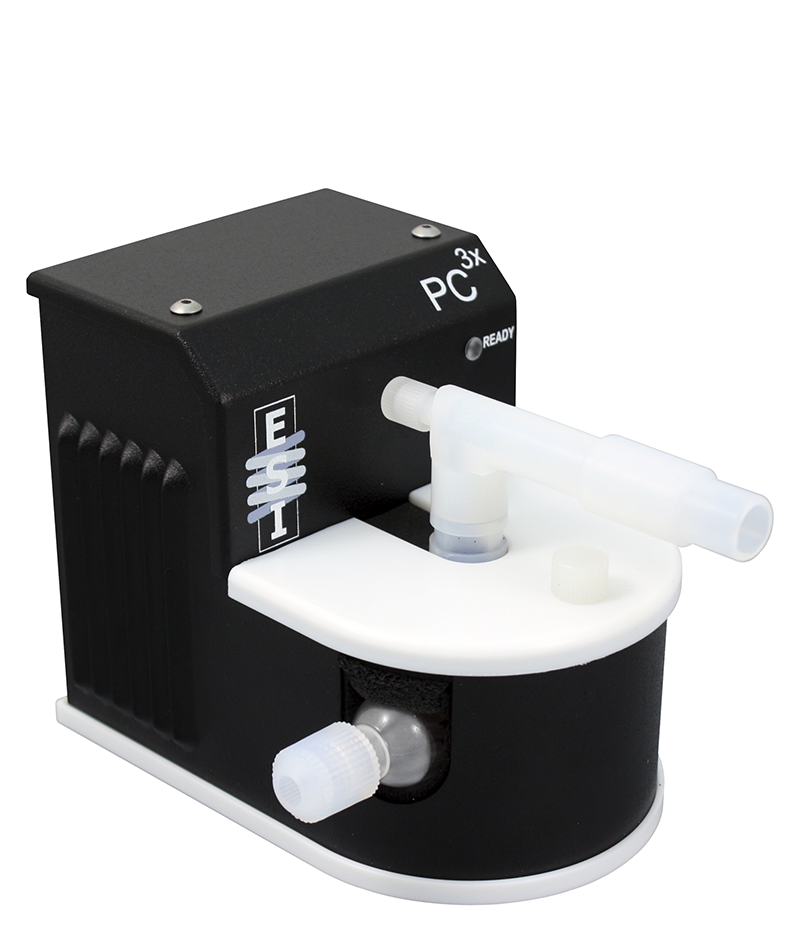

• O-ring free cyclonic spray chamber (in glass, quartz, or PFA) provides significantly improved washout over standard chambers
• Air-cooled operation eliminates water line connections
• Software temperature control of ±0.1°C from -10°C to +80°C
• Versions available for most all ICP & ICPMS systems
• SSI hybrid dual cyclonic/Scott spray chamber option provides enhanced stability for isotope ratio measurements without compromising sensitivity

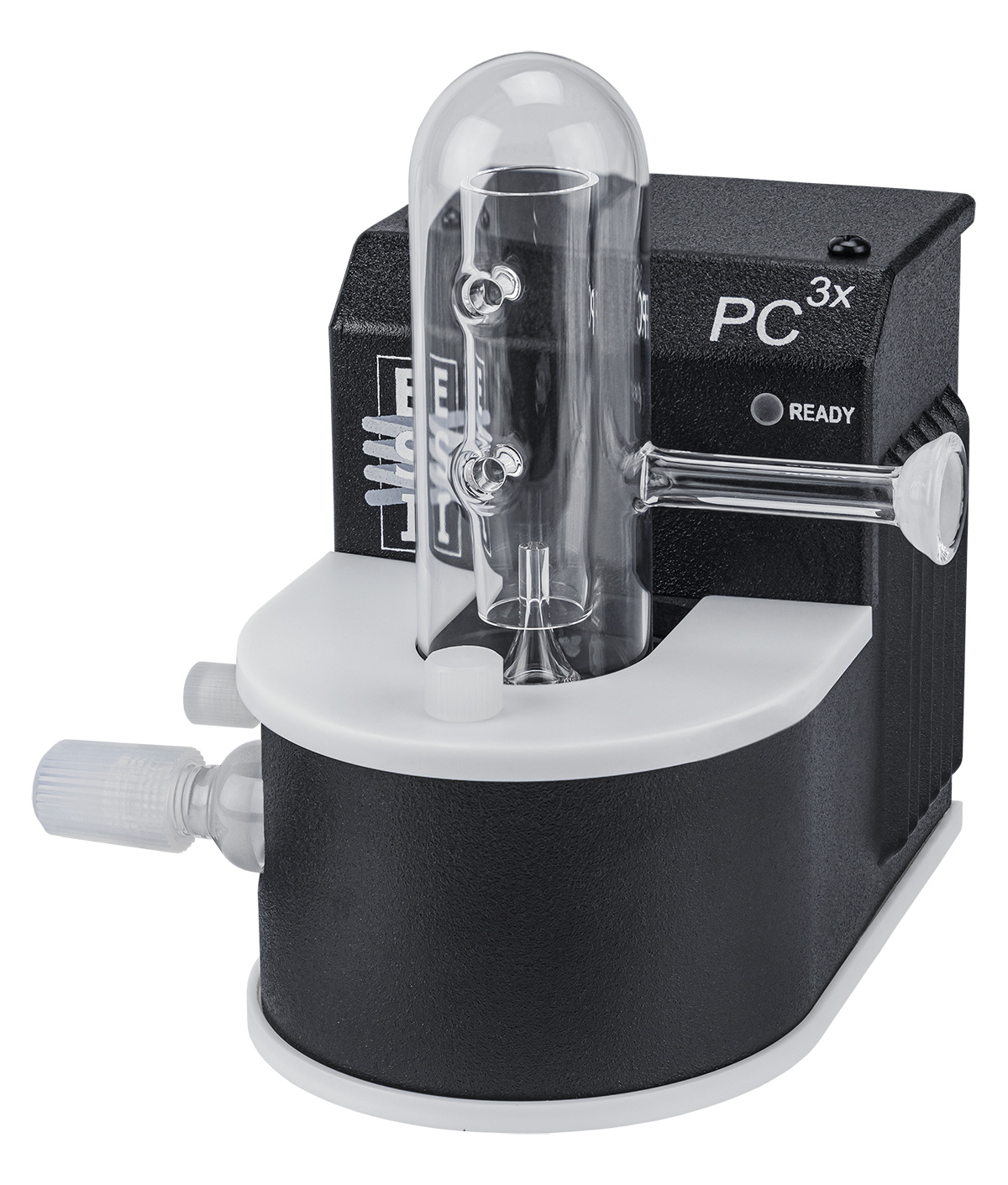

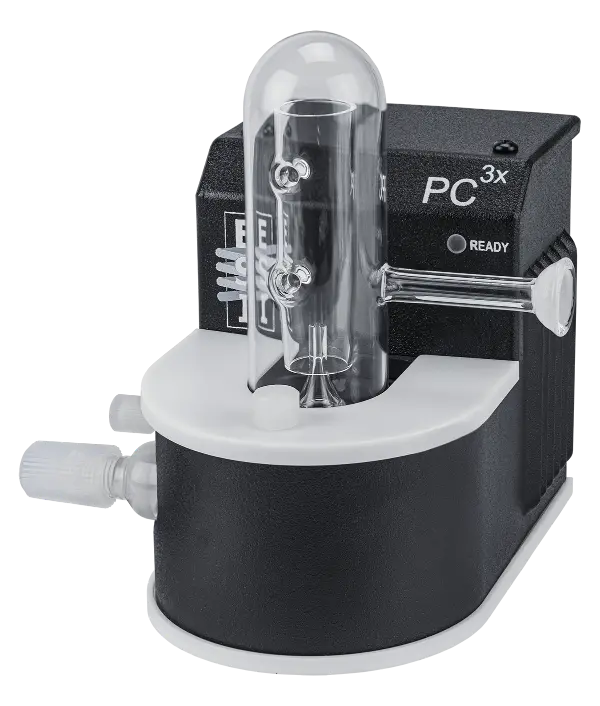

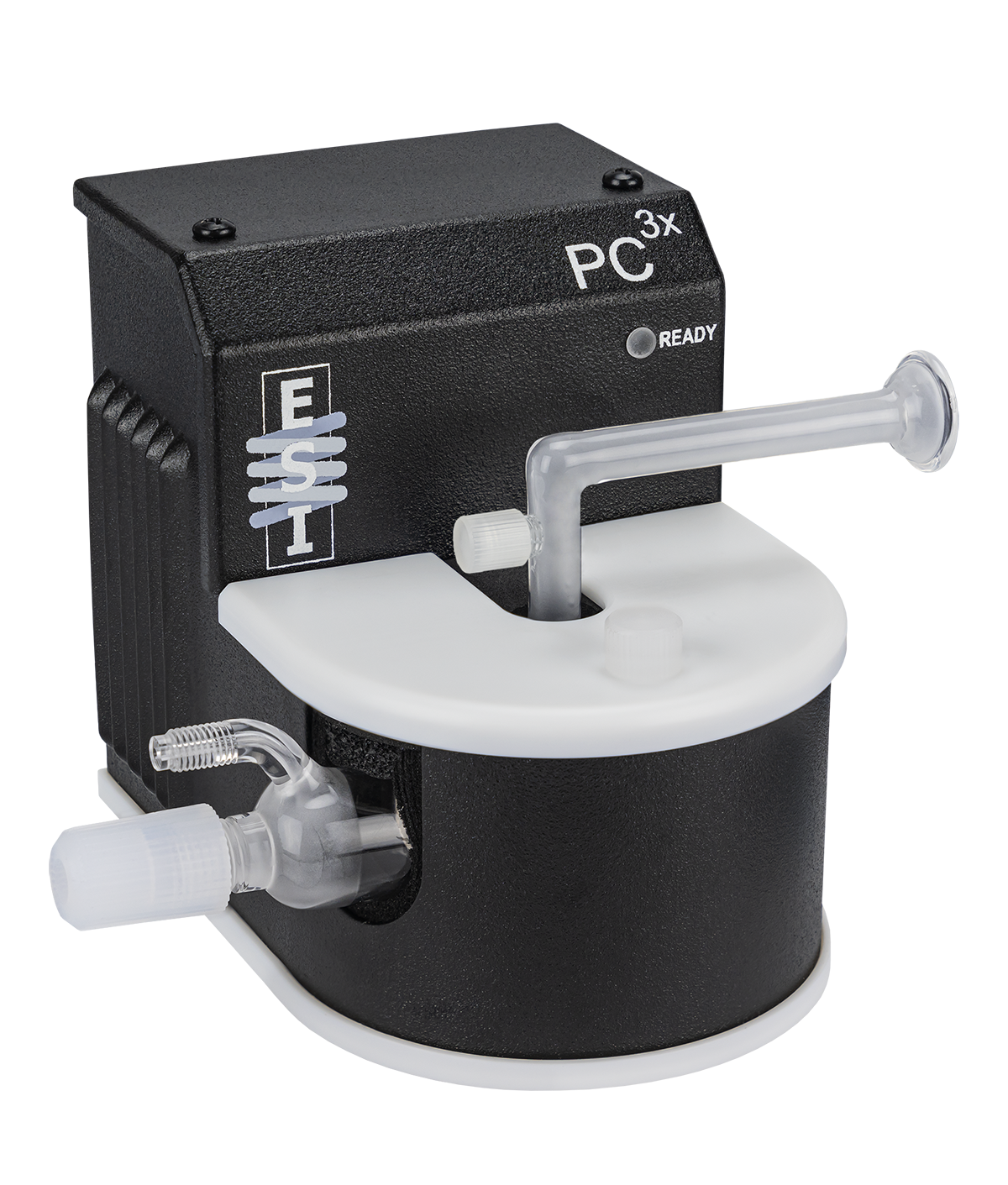

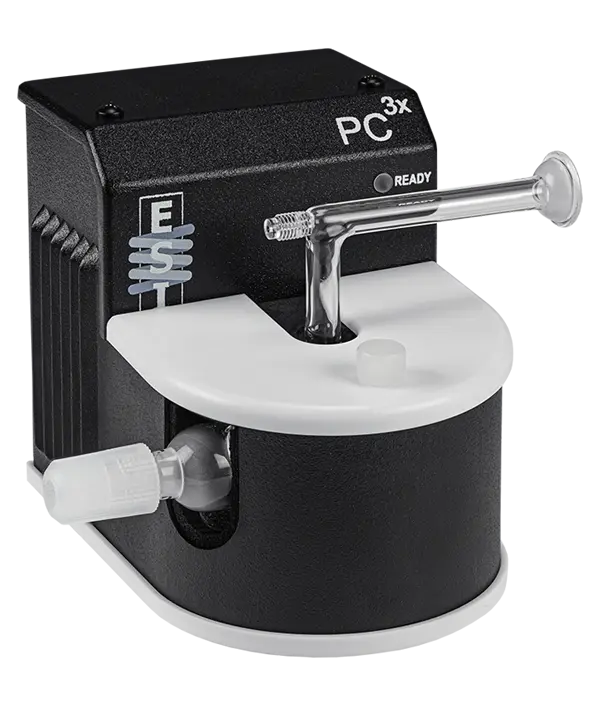

PC^3X with quartz cyclonic spray chamber

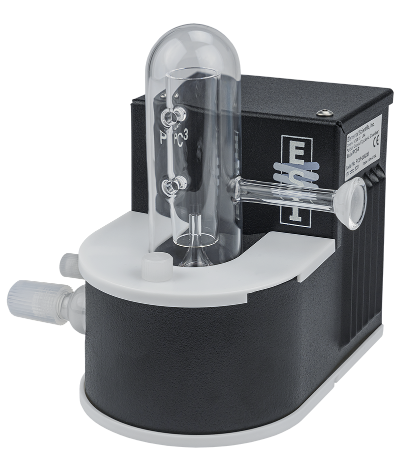

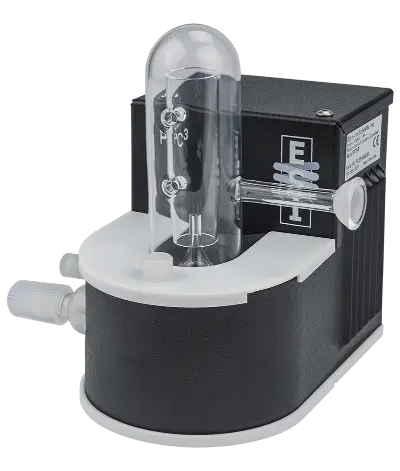

PC^3X with SSI spray chamber

PC³-LT Highlights

• Peltier cooled inlet system equipped with ESI cyclonic spray chamber for lower temperatures required for introducing volatile organic solvents
• Thermal stabilization of spray chamber improves long-term stability with -20°C for organic solvents and +2°C for aqueous analysis
• O-ring free cyclonic spray chamber (in glass, quartz, or PFA) provides significantly improved washout over standard chambers
• Air-cooled operation eliminates water line connections
• Versions available for most all ICP & ICPMS systems

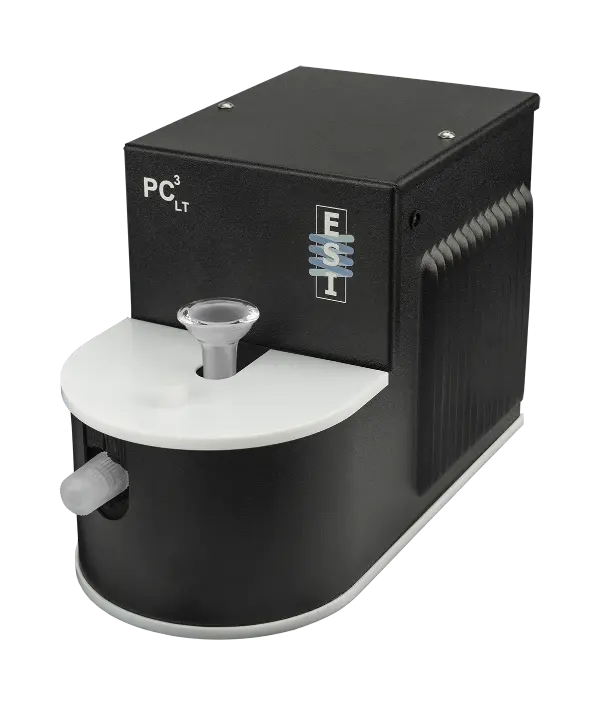

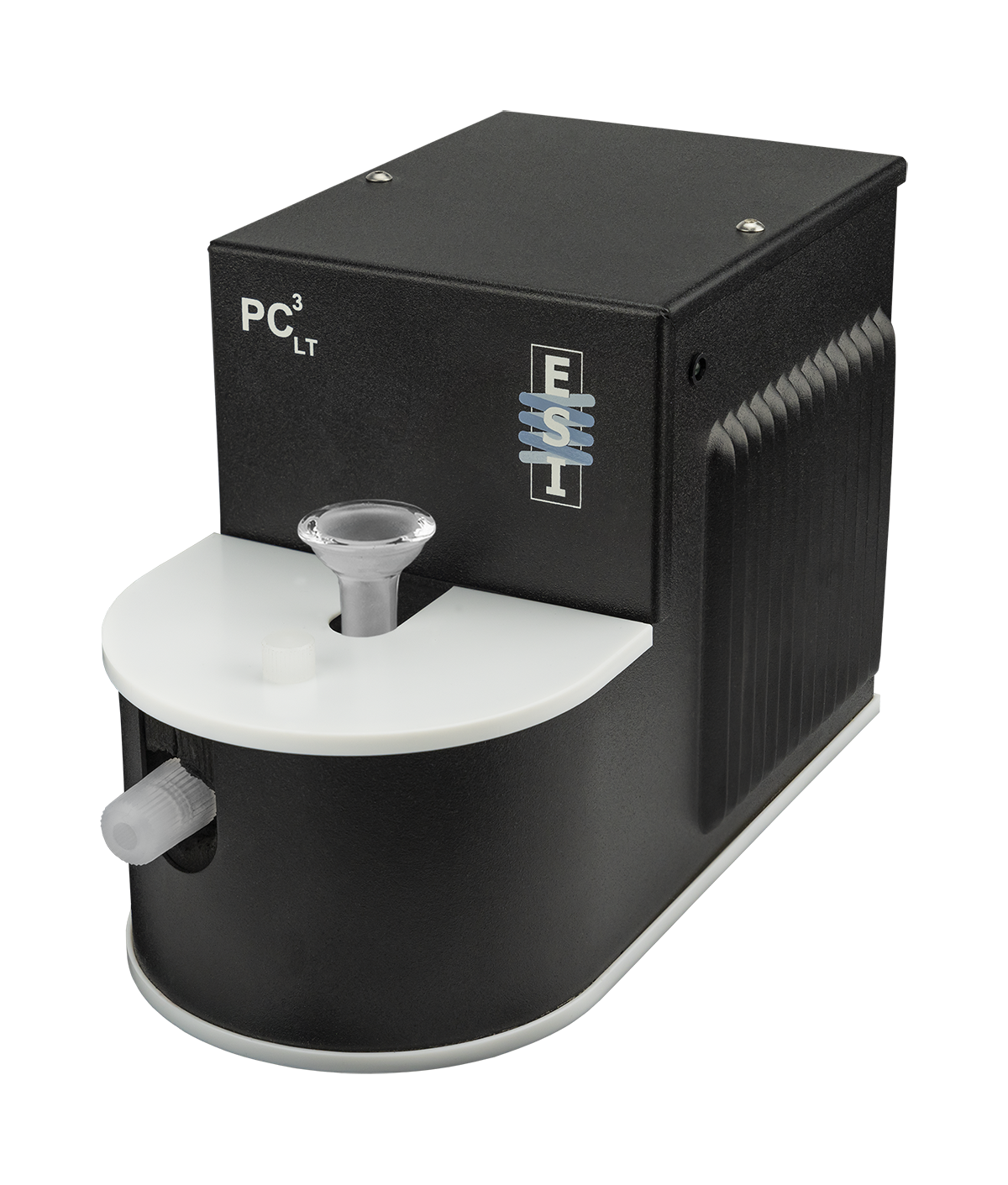

PC³-LT for volatile solvents

PCH Highlights

• Peltier cooled inlet system for the ESI high-performance PFA spray chamber
• Thermal stabilization of spray chamber improves long-term stability
• O-ring free PFA Scott-style spray chamber provides HF-resistance with enhanced stability and sensitivity
• Two PCH models are available for the following ICPMS systems:
  • Peltier cooler/heater for PerkinElmer™ NexION™ 1000/2000/5000, range -10°C to +80°C
  • Peltier cooler for Thermo Scientific™ iCAP™ Q/RQ/TQ, range -10°C to +20°C

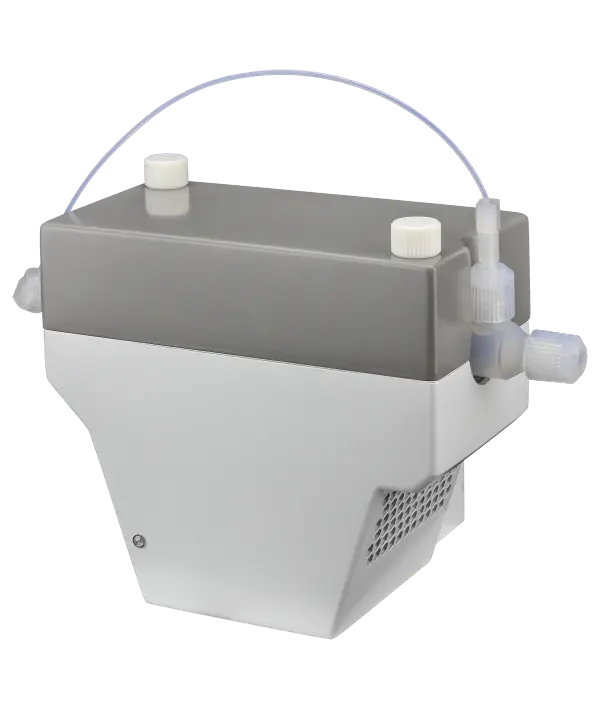

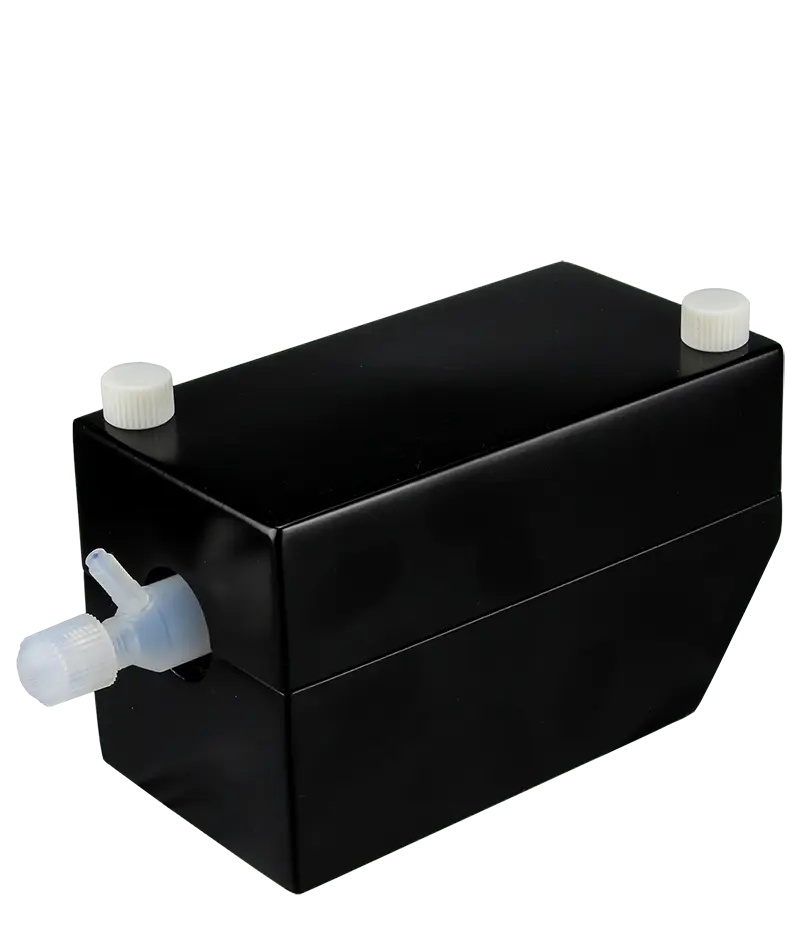

PCH for PerkinElmer NexION 1000/2000/5000 ICPMS

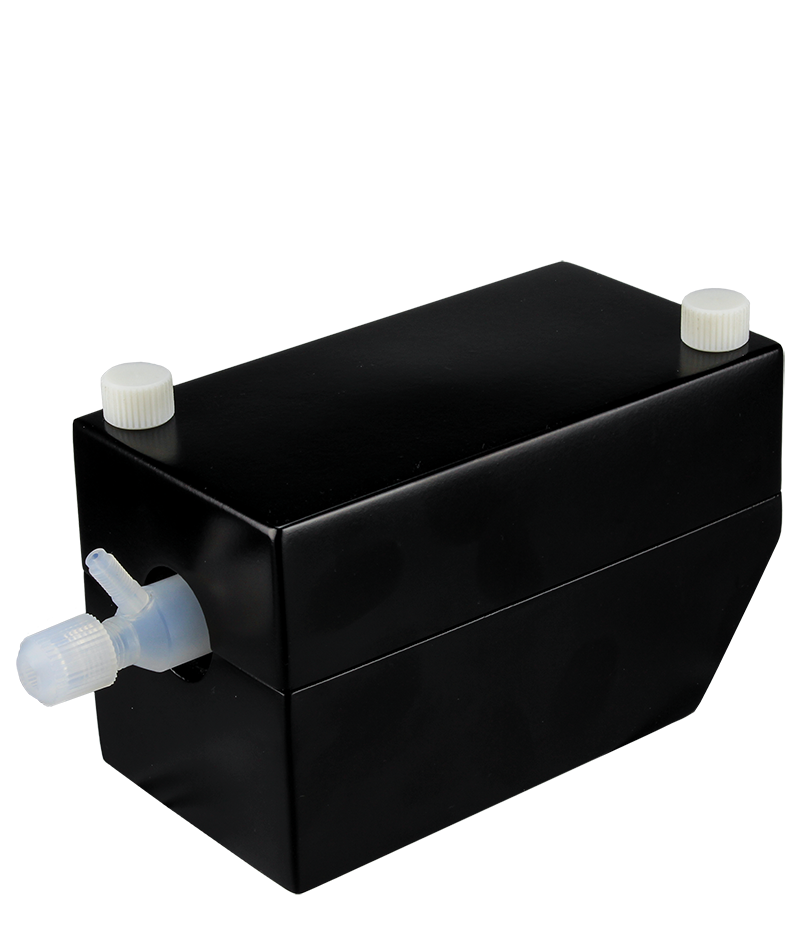

PCH for Thermo Scientific iCAP Q/RQ/TQ ICPMS
